Growatt SPH Series Installation Manual

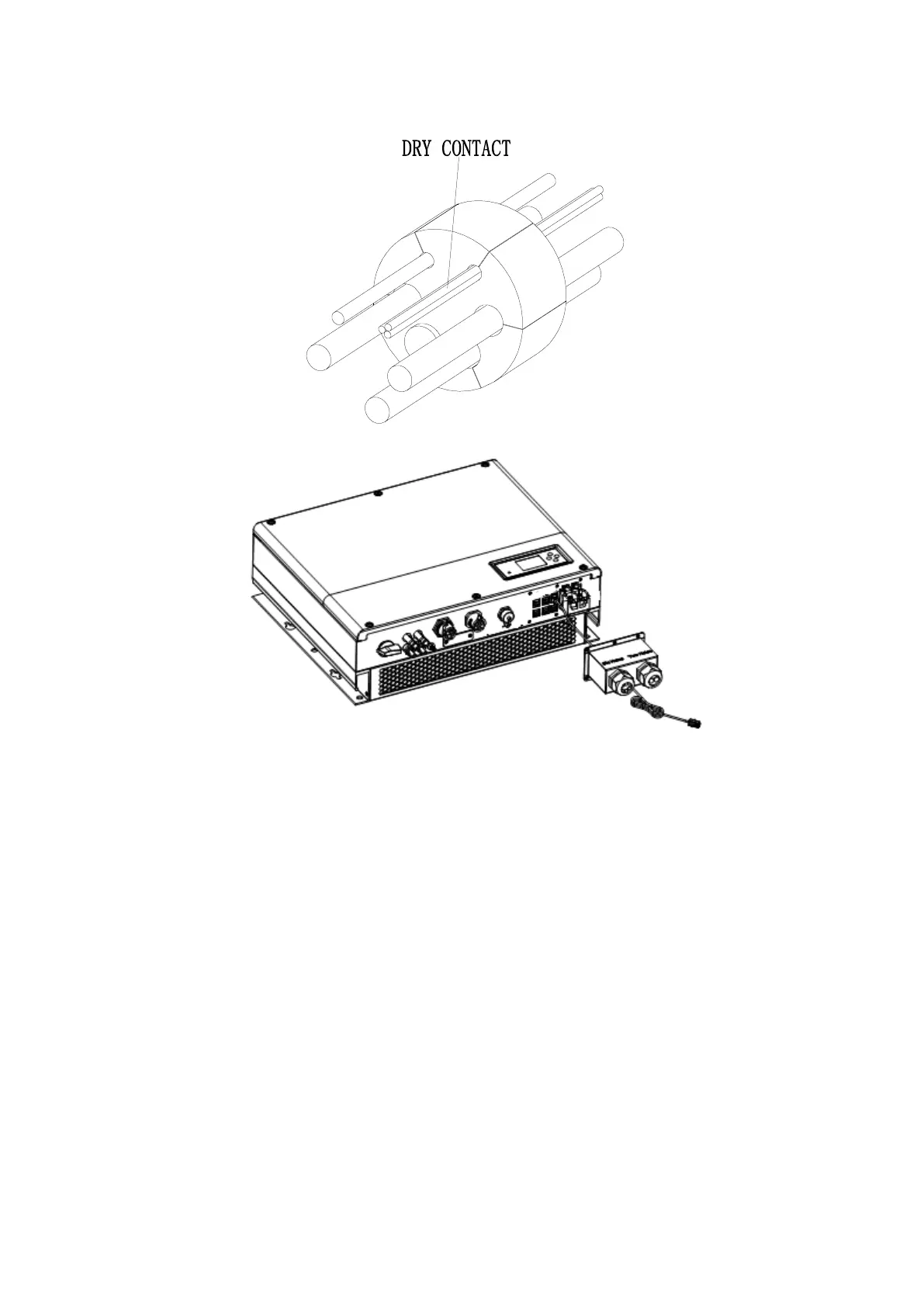

Chart 5.36
Chart 5.37
Note:
If the cable such as “Dry contact” cable is not used, please do not remove the filler plug from the cable
support sleeve.
5.4.11 Grounding connection
SPH must be grounded by cable, the grounding point is showed as follow, and the minimum grounding cable
wire diameter is 10.0mm
2
.

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
