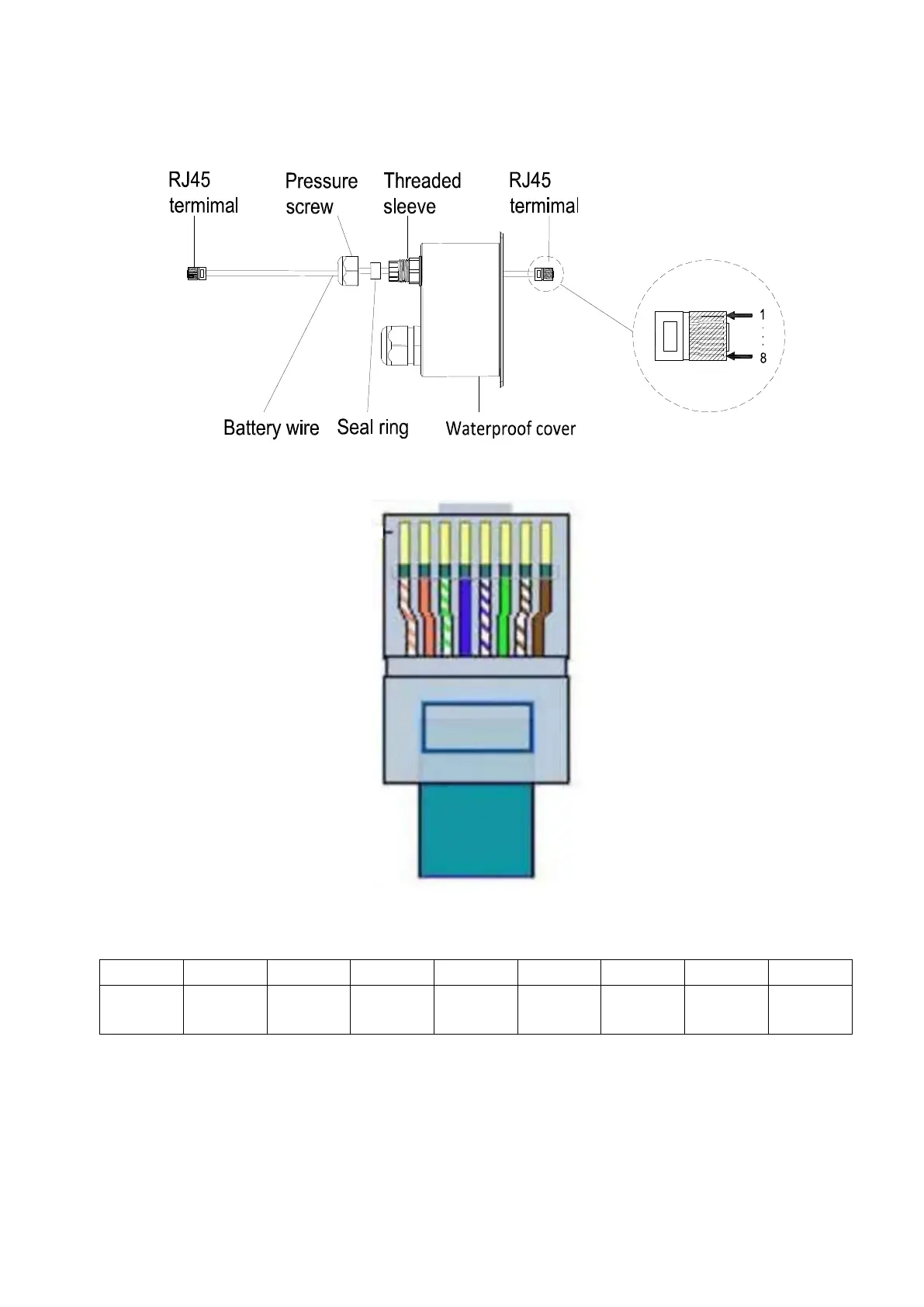

LAN line RJ45 sequence as follow:

Chart 5.5

Chart 5.6

LAN line 1-8 colors as below:

PIN 1 2 3 4 5 6 7 8

Color

White

orange

Orange

White

green

Blue

White

blue

Green

White

brown

Brown

5.3 Installation Instructions

5.3.1 Attention Layout（length of sensors consider）

There’re three types of sensors for use with SPH. One is wired current sensor, one is meter sensor, or SP-CT,

if you choose wired sensor or meter. Before installing you should know something that as below:
