Growatt SPH Series Installation Manual

The cable of wired sensor and meter is suggested not longer than 15m. So you need to consider the length
between SPH with combiner box for the sensor should be installed in the live line. And if you installed SP-CT for
sensor, distance recommended not more than 30 meters.

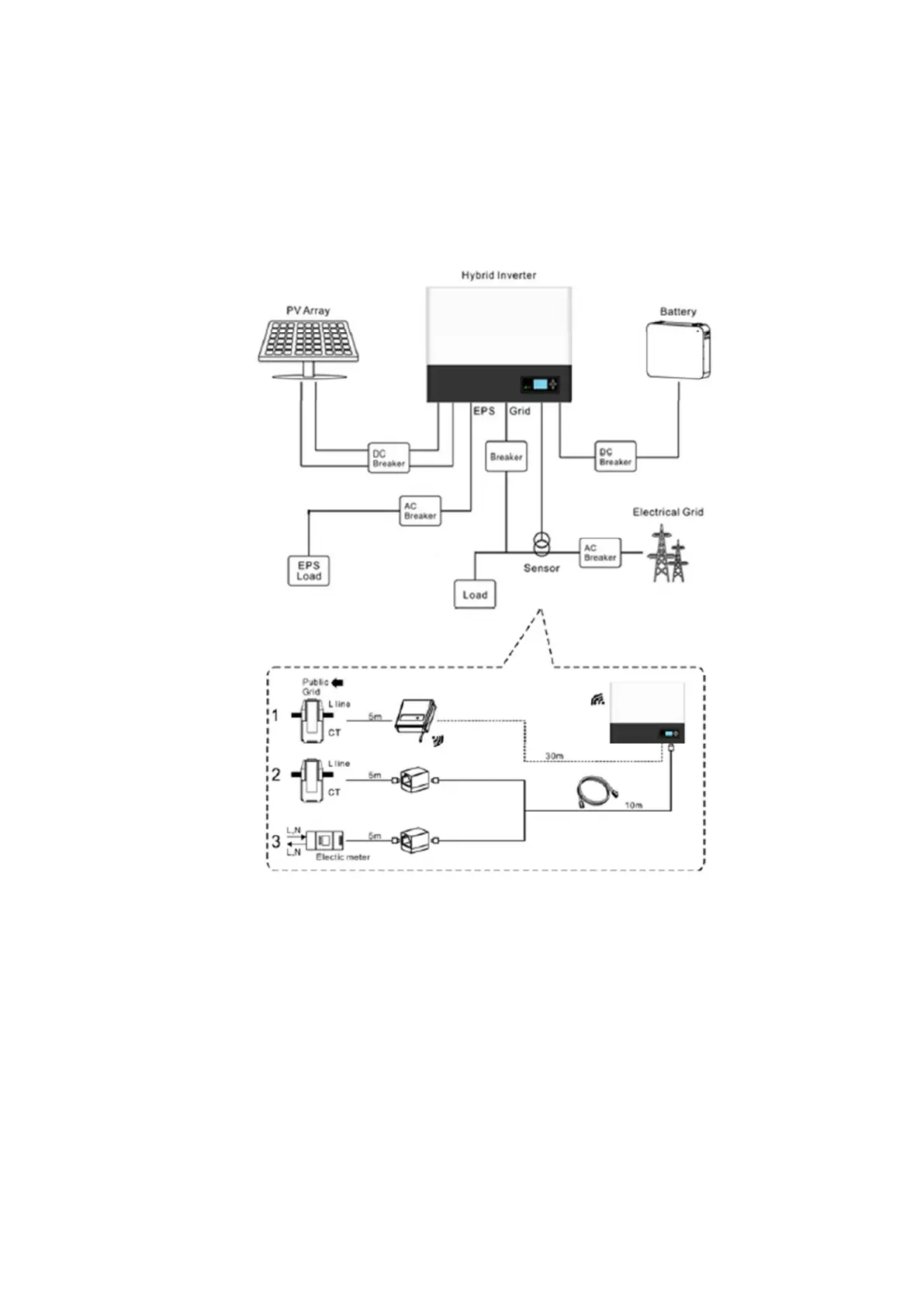

The installation layout of energy storage machine at home as following:
Chart 5.7-1 SPH 3000-6000TL BL-UP

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
