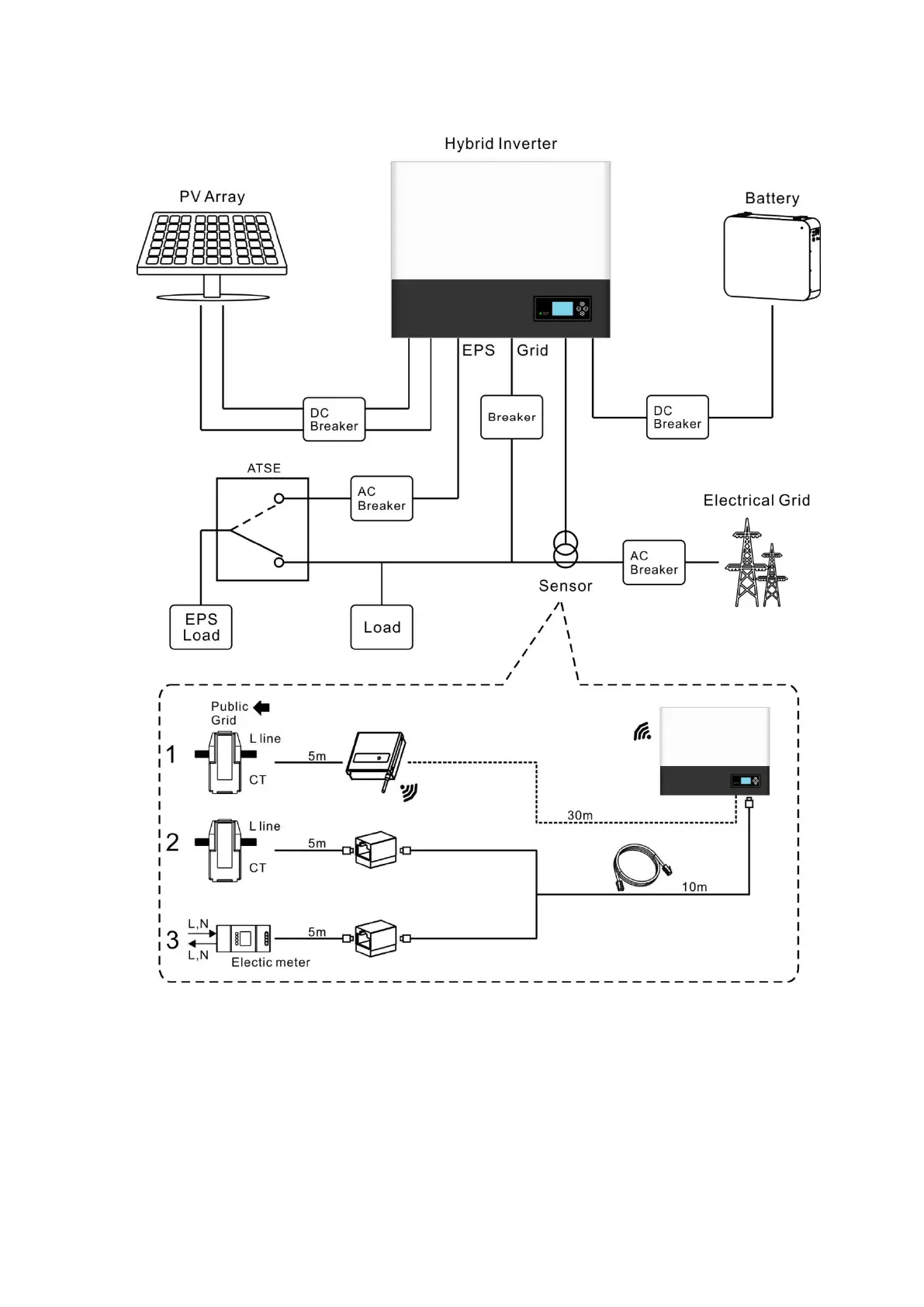

Chart 5.7-2 Growatt SPH 3000-6000
5.3.2 Installation of SPH
1. Project the machine’s probably sizes on the wall, the thickness of wall for SPH must be not less than
60mm.
2. Make sure the drill position, use paper board(installation guide), put the paper board cling to the wall,
make sure the top edge of paper board is level (As the chart 5.8a below).
3. Mark four points at the wall via the hole of the paper board, then remove the paper board.

Other manuals for Growatt SPH Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt SPH Series and is the answer not in the manual?

Growatt SPH Series Specifications

General IconGeneral
TypeHybrid Inverter
Max. Input Voltage600V
Number of MPPTs2
Protection RatingIP65
Output Power Range3kW - 10kW
Rated AC Output Power3-10 kW
Communication InterfacesRS485, USB, Wi-Fi
Output Voltage230 V
Frequency50/60 Hz
Operating Temperature-25°C to 60°C
Cooling MethodNatural Convection
