Growatt SPH Series Installation Manual

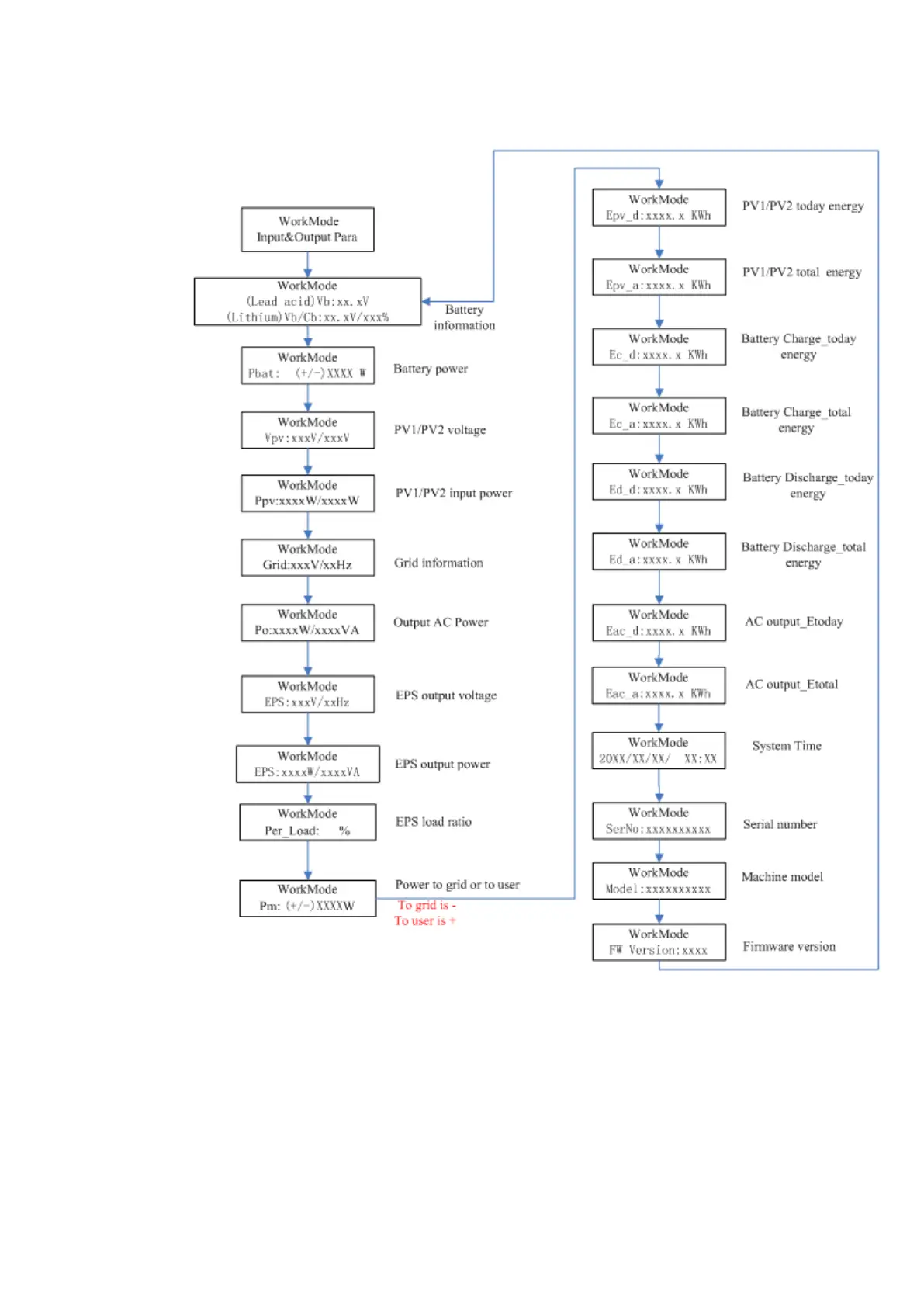

Chart 6.5
Note:
1. “Down” control command (if pushing “up” button, command will go back).
2. Workmode depend on the situation. If SPH is normal state, it will show “normal”. If SPH is standby state,
it will show as “standby” etc.
3. Some special definitions are explained, for example: Vb means the voltage of battery. Cb means the
capacity of lithium battery (only lithium battery shows this data). Pm means the monitor power of user.

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
