Growatt SPH Series Installation Manual

Chart 6.13
Note:

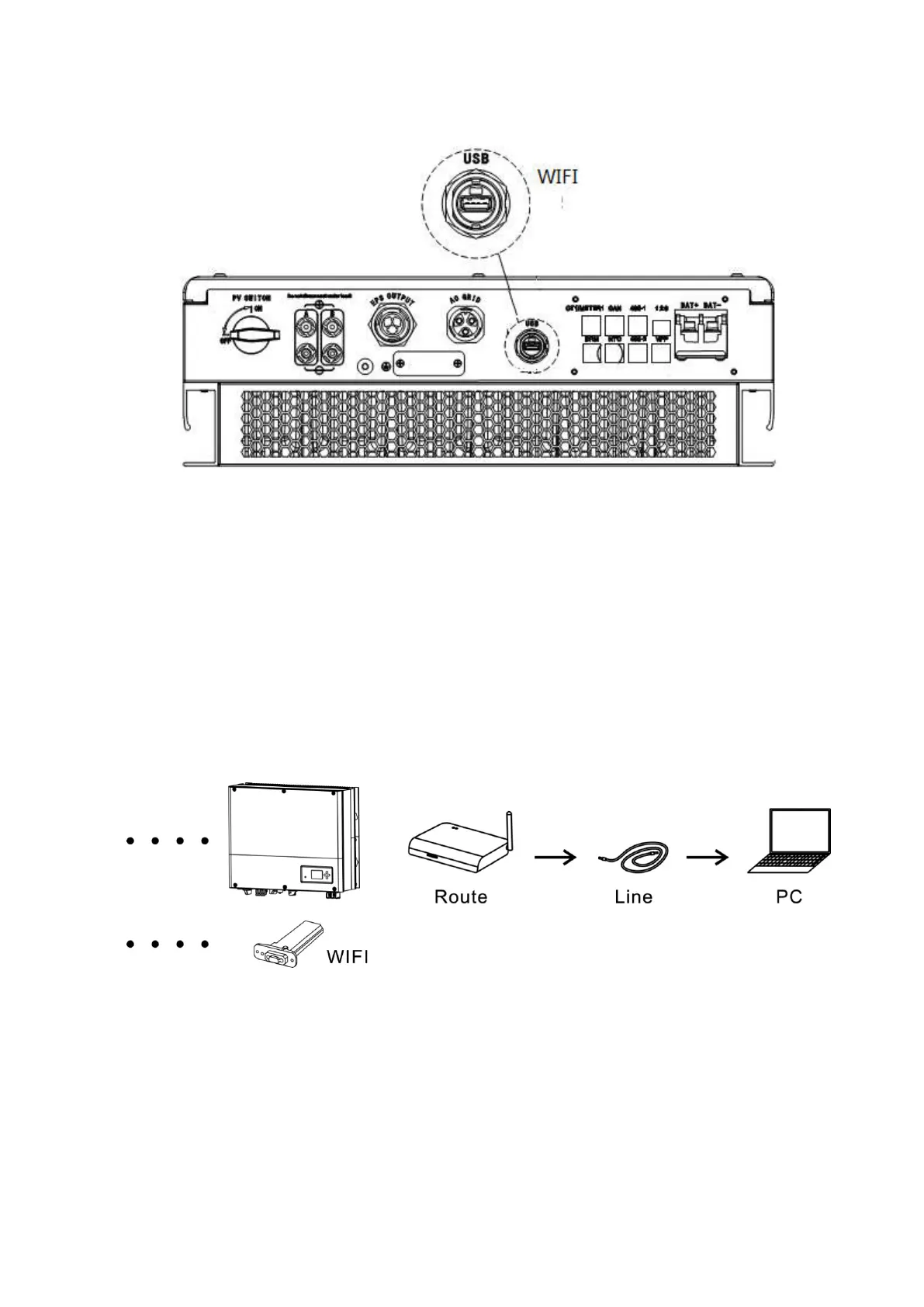

USB is only used for firmware update. Customer can’t use it for charging.
6.5.2 The SPH’s monitoring
The SPH provide RS232 interface. Users can through the following communication solution to monitor the SPH.
Note:
This kind of monitoring can only be used by the monitor of Growatt’s Shineserver /shine phone provided by
the company. Through RS232 interface connect to Wi-Fi-S/shinelink, use computer terminal/or mobile phone
for data monitoring.
Chart 6.17
Before use WIFI communication, you should make sure the follow PIN1 and PIN2 are ON:

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
