Growatt SPH3600 User Manual

25
26

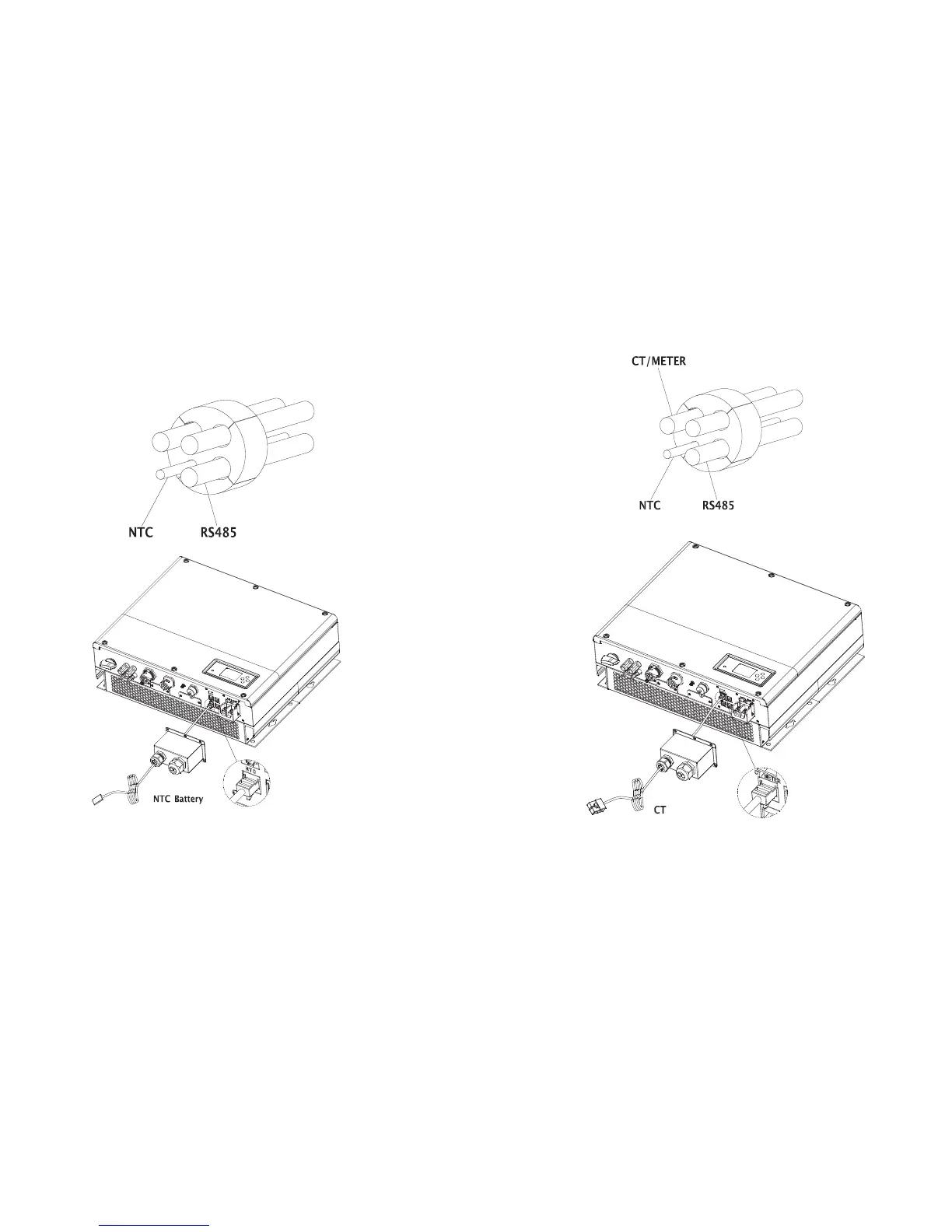

Chart 5.22
Note： If you are using a lithium battery， you do not need to install this
temperature probe, the probe of the temperature cable should be attached to the
surrounding environment of the lead-acid battery, and the length of this cable is
1.5m, so pay attention to the distance of battery and SPH.
Chart 5.21
5.4.6 Connection of CT terminal
There is a CT in SPH inverter monitoring the power consumption situation of
residential users, the CT terminal connection steps are as follows:
1. Thread the swivel nut over the “CT” cable.
2. Press the cable support sleeve out of the cable gland.
3. Remove the filler plug from the cable support sleeve.
4. Route the “CT” cable through an opening in the cable support sleeve.
5. Thread the “CT” cable through the cable gland.
6. Insert the RJ45 plug of the network cable into the “CT/METER” pin connector
on the inverter until it snaps into place.
Chart 5.23
Chart 5.24
Note：The meter and CT cannot be installed at same time, please set the sensor
model when selecting CT or electricity meter, please refer to section 6.3.3 for
details.
Remark: CT wire (5m in length) specification: RJ45, standard LAN line (one end
with 8P modular plug, the other connected with transformer). But if the length is
not enough, customer can add cable, so the length can be increased to 15m max,
the operation is as follow chart:

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
