Growatt SPH5000 User Manual

b) c)
5.4 SPH System Connection Mode

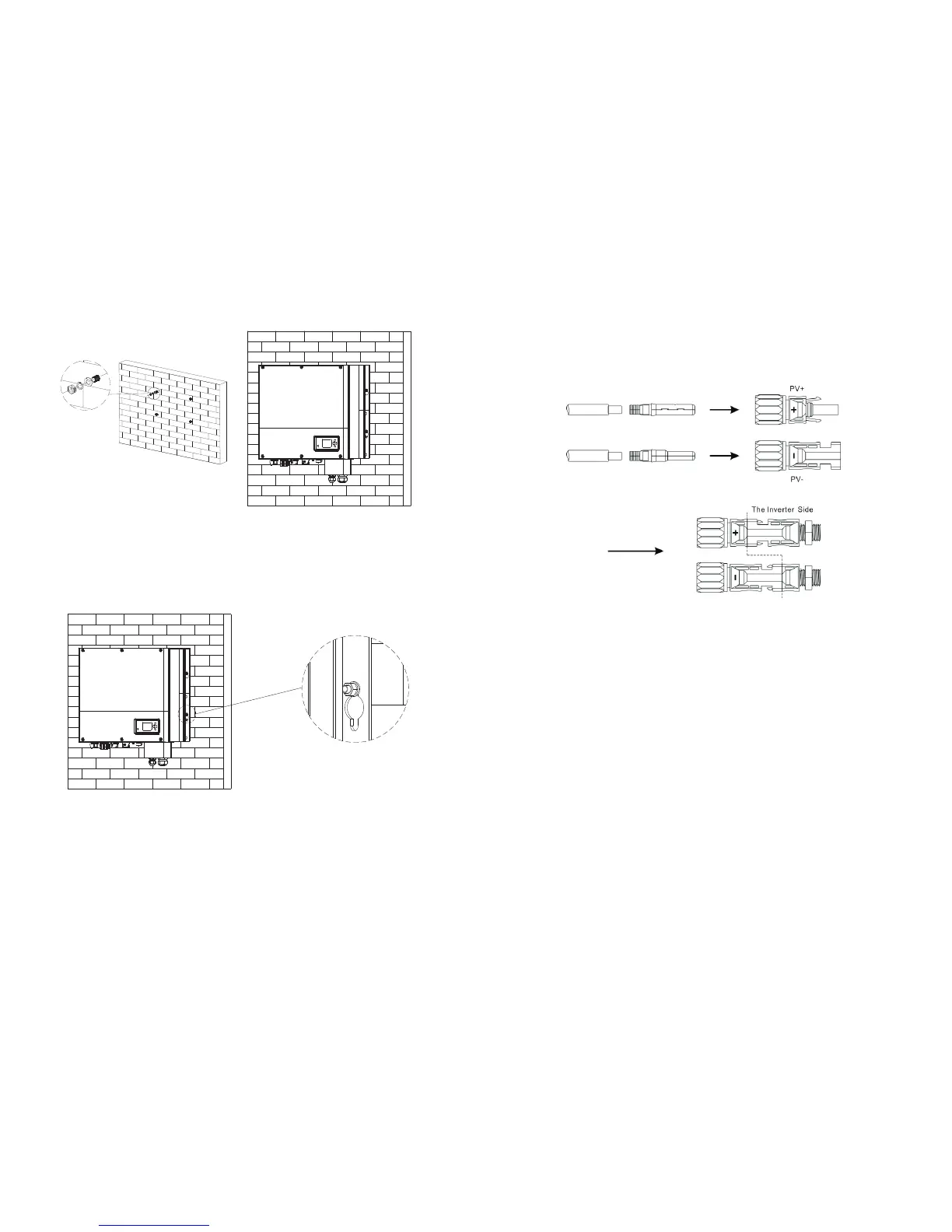

5.4.1 Connection of PV terminal
Chart 5.9
Similar to the traditional inverter connecting, the input of PV panel energy can be
realized by using MC4 PV terminal, the detail steps are as follows：
1.Turn off PV switch.
2.Insert PV panel positive and negative cables into MC4 terminal， then connect
positive pole(+) of connection cable to positive pole(+) of PV input connector,
Connect negative pole(-) of connection cable to negative pole(-)of PV input
connector, please pay attention to PV input voltage and current within permission
limit:
Max PV voltage：550V (consider the lowest temperature)
Max PV input current: 12A
Max PV input power per string: 4000W.
Remark: We suggest you use the cable ≥4mm2/12 AWG to connect.
17
18
d)
Chart 5.8

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
