Growatt SPH5000 User Manual

19 20

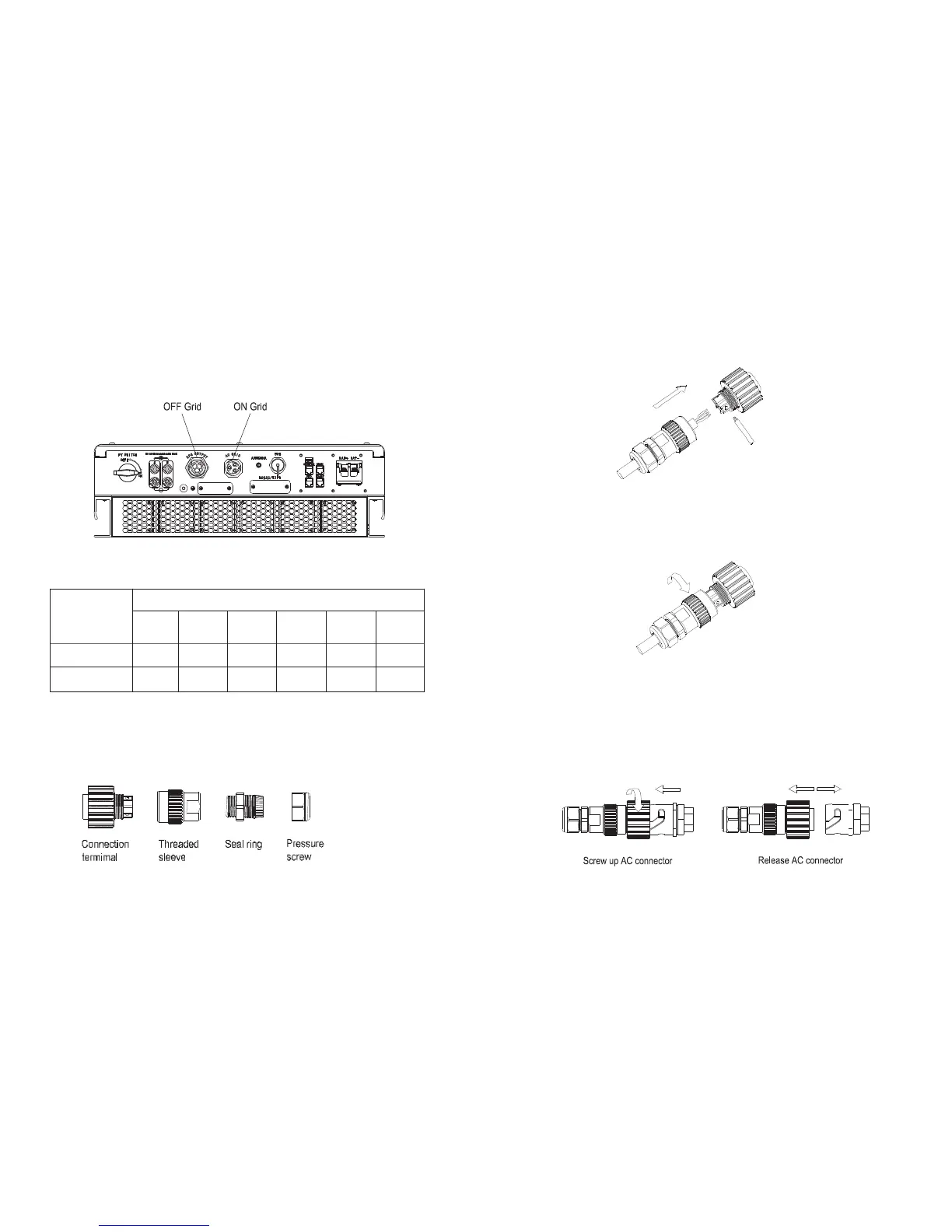

5.4.2 Connection of AC terminal and off grid terminal
SPH has a grid output terminal and off grid out terminal,look down on the SPH from
the front,the terminal on the left (on grid) is grid outlet for connecting grid,the
terminal on the right is an emergency power outlet for connecting critical load.
Chart 5.10
wire suggest length:
AC output terminal connection steps as follow：
Chart 5.11
Step1: Uninstall the AC terminal as above chart.
Chart 5.12
Step 2: Thread cables through pressure screw, seal ring, threaded sleeve in sequence,
insert cables into connection terminal according to polarities indicates on it and
tighten the screws.
Chart 5.13
Step 3:Push threaded sleeve on to connection terminal until both are locked tightly
max cable length
conductor cross
section
5.2mm 10AWG
2
6.6mm 9AWG
2
Growatt
SPH3000
Growatt
SPH3600
Growatt
SPH4000
Growatt
SPH4600
Growatt
SPH5000
Growatt
SPH6000
40m 33m
50m 42m
28m
36m
26m
25m
33m 32m
23m
29m
Chart 5.14

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
