Growatt SPH5000 User Manual

21 22

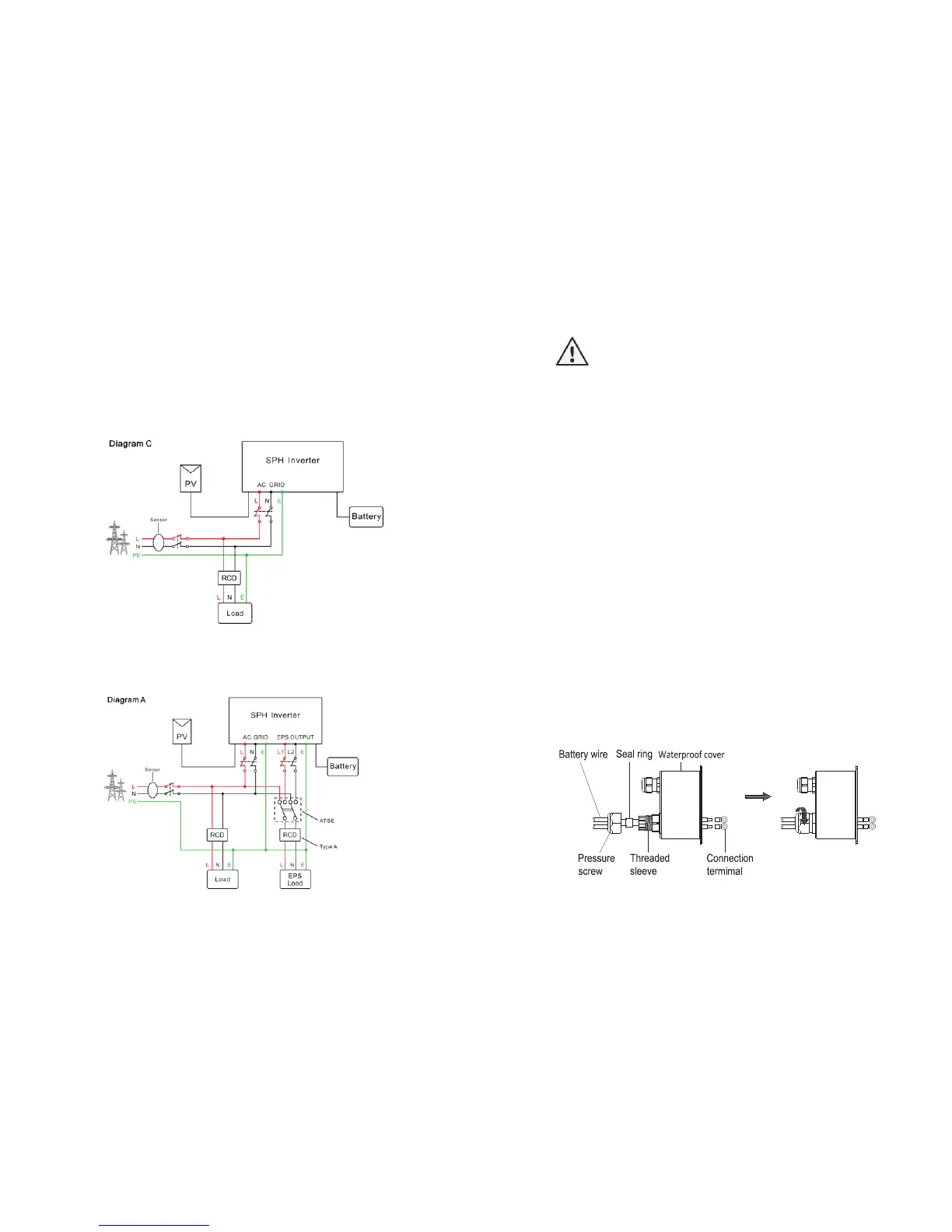

The recommended wiring diagram is as follows:
Chart 5.16
Step4: Plug the socket into AC output terminal，clockwise rotation to tighten the
socket, counterclockwise rotation to loosen the socket.
Install battery steps are as follows:
1.Open cover.
2.Thread cables through pressure screw, seal ring, threaded sleeve, waterproof cover.
3.Thread cables into connection terminal, then press the terminal by relevant tools
and make sure battery cables are firmly (Growatt lithium battery contains a battery
cable in the original packing).
4.Connect positive pole (+) of battery cable to battery positive terminal (+) of the
inverter, connect negative pole (-) of battery cable to battery negative terminal (-).
Chart 5.17
Chart 5.15
Notice:
1.If you want to use on gird only, please refer to chart 5.15. connect with AC grid and
float EPS OUTPUT.
2.If you want to use both on gird power and back up power ,please refer to chart
5.16. connect with AC grid and EPS OUTPUT like the chart show.
3.On grid terminal and off grid terminal can't directly connect together, if directly
connected together, it will cause damage to inverter!
4.Off Grid terminal can't connect to grid. If there is grid power, it will cause damage
to inverter!
5.If you want to use on gird and off grid, you can use ATS (automatic transfer switch )
like before or ask Growatt for help to connect them.
5.4.3 Connection of battery terminal

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
