Growatt SPH5000 User Manual

37 38

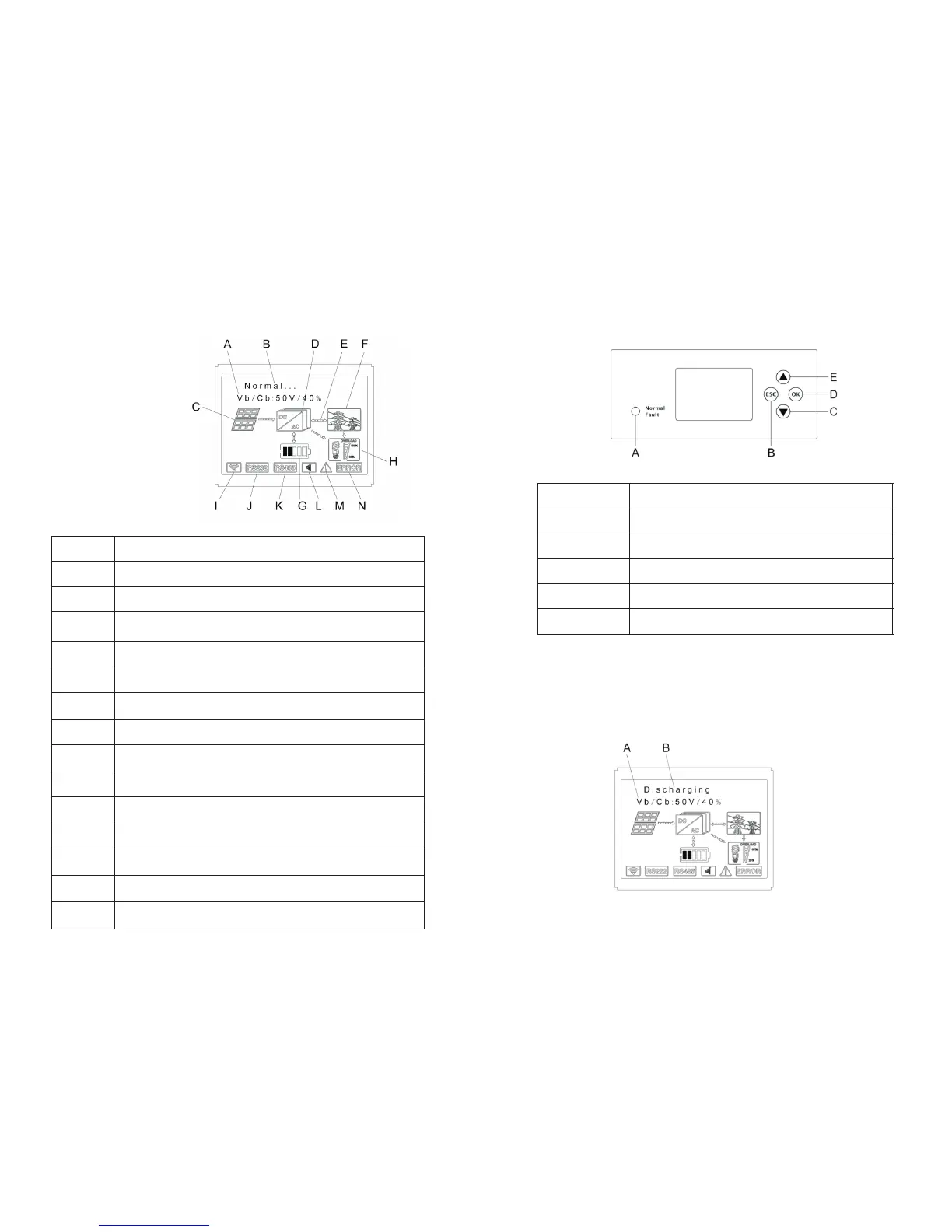

6.4 Display and button
6.4.1 LCD display area
Chart 6.2
location
Description
A
information
B
state
C
D
SPH inverter
E
Power flow line
F
Grid
G
H
Local load
I
Wireless communication
J
Rs232
K
Rs485
L
Buzzer(Reserved)
M
warning
N
fault
PV input (if you connect two tracks, it will show two.
Otherwise show one)
Battery (show the SOC in five grid, Every grid represents 20%)
6.4.2 LED and button instruction
Chart 6.3
location
Status
ESC- button(cancel control)
Down-button
Enter-button
UP-button
A
B
C
D
E
description
Notice：LED showing status of SPH, it has two color, one is green and another is red. Please
turn to 3.1 and read the detail of LED.
6.4.3 LCD display column
LCD display column is used to show the current state, basic information and fault information.
Also include language setting, program charging/discharging priority and system time. On
default condition will take turns to display the information.
Chart 6.4

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
