Growatt SPH5000 User Manual

VDE 0126
GT4XXXXXX1
Queensland
GT4XXXXXX2
As4777
GT4XXXXXX3
CEI 0-21
GT4XXXXXX4
G59
GT4XXXXXX5
XINA1
GT4XXXXXX6
VDE-AR-N 4105
GT4XXXXXX7
G83
GT4XXXXXX8
Norway-EN50438
GT4XXXXXX9
CQC
GT4XXXXXXA
35 36

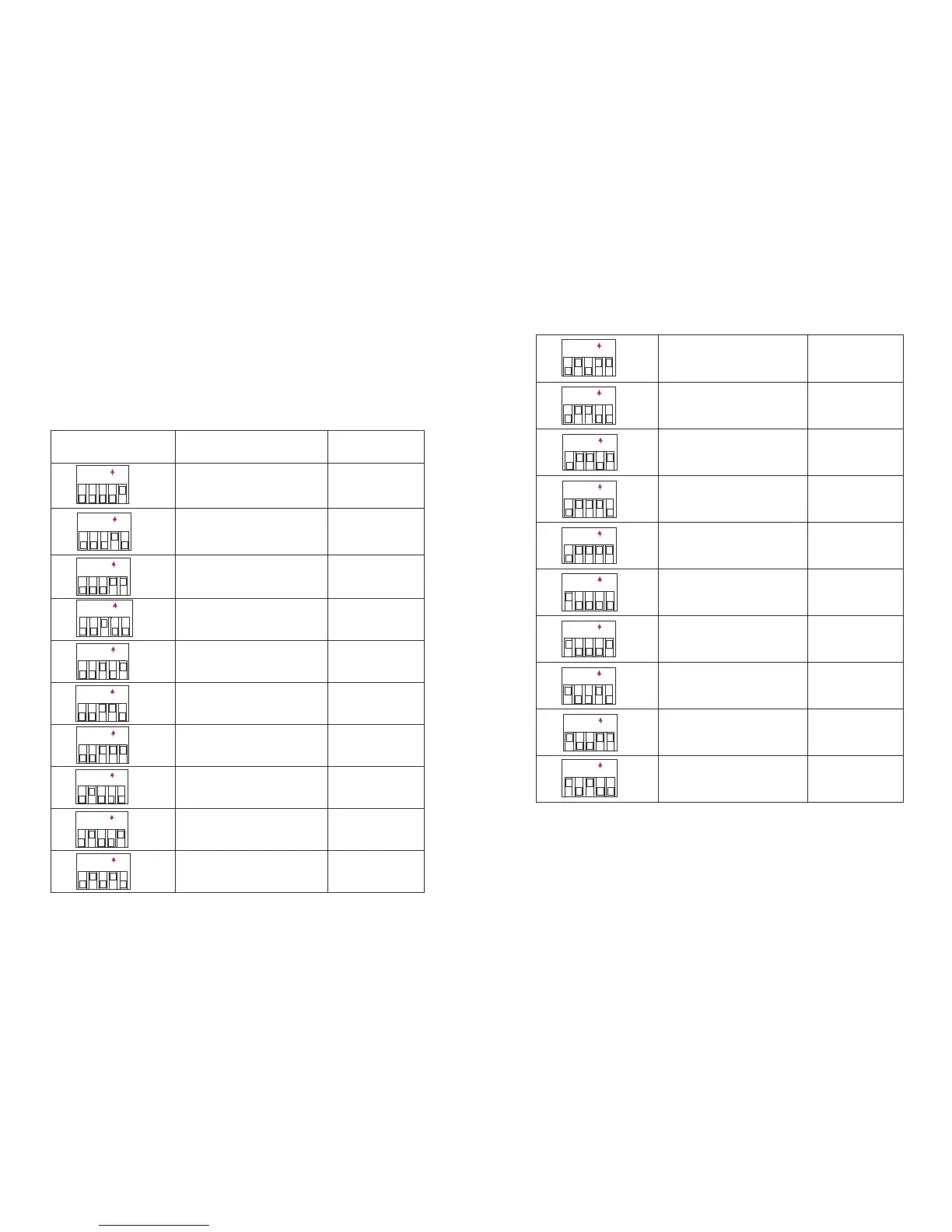

The DIP switch is composed of five-digit binary number PINS. The different
combination of the five PINS can represent different inverter's model, which is
corresponding to the local grid standard. Each small white PIN has two statuses,
when set upward to “ON”, its value turns to “1”, when set downward, its value
turns to “0”. Concerning the matching of the PIN status and the country safety
standard, please refer to the table below:
6.3.1 Switch to country table
Model display
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
Danmark-EN50438-1
GT4XXXXXXB
Hungary
GT4XXXXXXC
Belgium
GT4XXXXXXD
Thailand MEA
GT4XXXXXXE
Thailand PEA
GT4XXXXXXF
Sp1663
GT5XXXXXX0
CQC-1
GT5XXXXXX1
TAIWAN
GT5XXXXXX2
EN50438-Ireland
GT5XXXXXX3
TUV000
GT5XXXXXX4
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
42 31
ON
5
Country/region / regulations
DIP switch status

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
