OPERATION
Display Panel

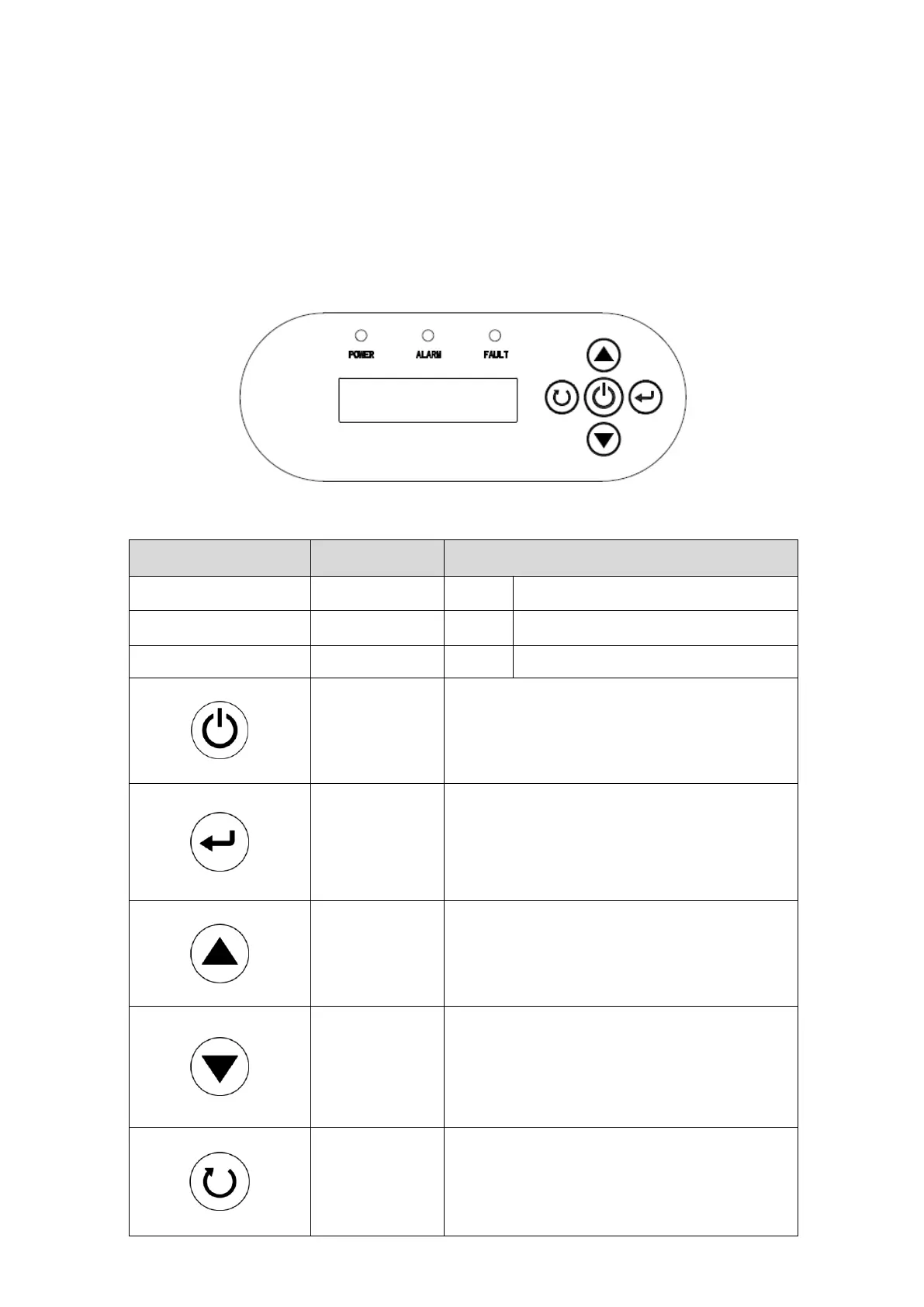

Solar pump inverter uses LCD operation panel. The operation panel is shown in the figure, including 3 LED lights,
LCD display and 5 keys.
LED on, inverter is running
LED on, warning, or LED flashing in auto
operation mode
1.Press for a short time, then the inverter starts
control;
2. Press for 2s, then inverter stops control.
Confirm /
Programming Key
1.Press for a short time to enter programming mode.
After altering parameter, “press for a short time” to
confirm the alteration
2. Press for 2s to enter the programming menu.
1.When control parameter displays state, increase
parameter number or parameter value;
2. When operation displays data state, according to
operation mode, increase output frequency or display
current operation data.
1.When control parameter displays state, press for a
short time to decrease parameter number or
parameter value.
2. When operation shows data state, according to
operation mode, decrease output frequency or
display current operation data.
Return the initial display.
