Appendix A
A.1. Webserver configuration
The built-in webserver offers easy monitoring of the CIM 500 module and makes it possible to configure the selected Industrial Ethernet
protocol. Using the webserver, you can also update the firmware of the CIM 500 module and store or restore settings, among other functions.
To connect a PC to CIM 500, proceed as follows:
1. Connect the PC and the module using an Ethernet cable.
2. Configure the Ethernet port of the PC to the same subnetwork as CIM 500, for example 192.168.1.101.
3. Open a standard Internet browser and type 192.168.1.100 in the URL field.
A.1.1. How to configure an IP address on your PC using Windows 10
1. Search for "Ethernet" in Windows.
2. Select "Change Ethernet setting".
3. Select "Change adapter options".
4. Right-click "Ethernet" and select "Properties".
5. Select properties for "Internet Protocol Version 4 (TCP/IPv4)".
6. Select the "Alternate Configuration" tab and enter the user-configured IP address and subnet mask you would like to assign to your PC.
TM057422

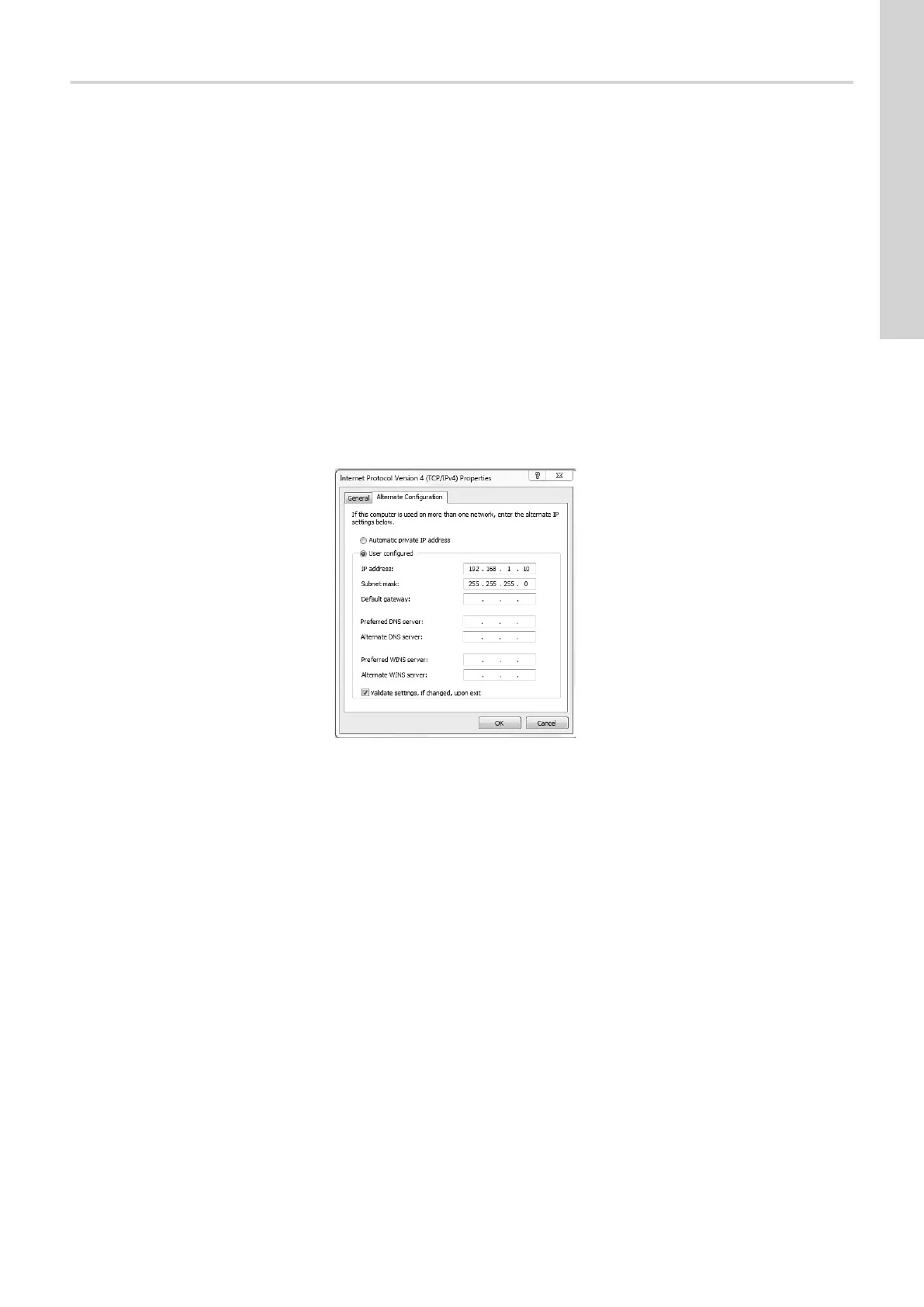

Example from windows 10
