two analog inputs
two digital inputs or one digital input and one open-collector
output
Grundfos Digital Sensor input and output
two signal relay outputs
GENIbus connection.
The inputs and outputs are internally separated from the mains-
conducting parts by reinforced insulation and galvanically separated
from other circuits. All control terminals are supplied with protective
extra-low voltage (PELV), ensuring protection against electric
shock.
Signal relay 1
LIVE: You can connect supply voltages up to 250 VAC to the output.
PELV: The output is galvanically separated from other circuits.
Therefore, you can connect the supply voltage or protective extra-
low voltage to the output as desired.
Signal relay 2
PELV: The output is galvanically separated from other circuits.
Therefore, you can connect the supply voltage or protective extra-
low voltage to the output as desired.
Connection terminals for the power supply
Phases Terminals
Three-phase L1, L2, L3, PE

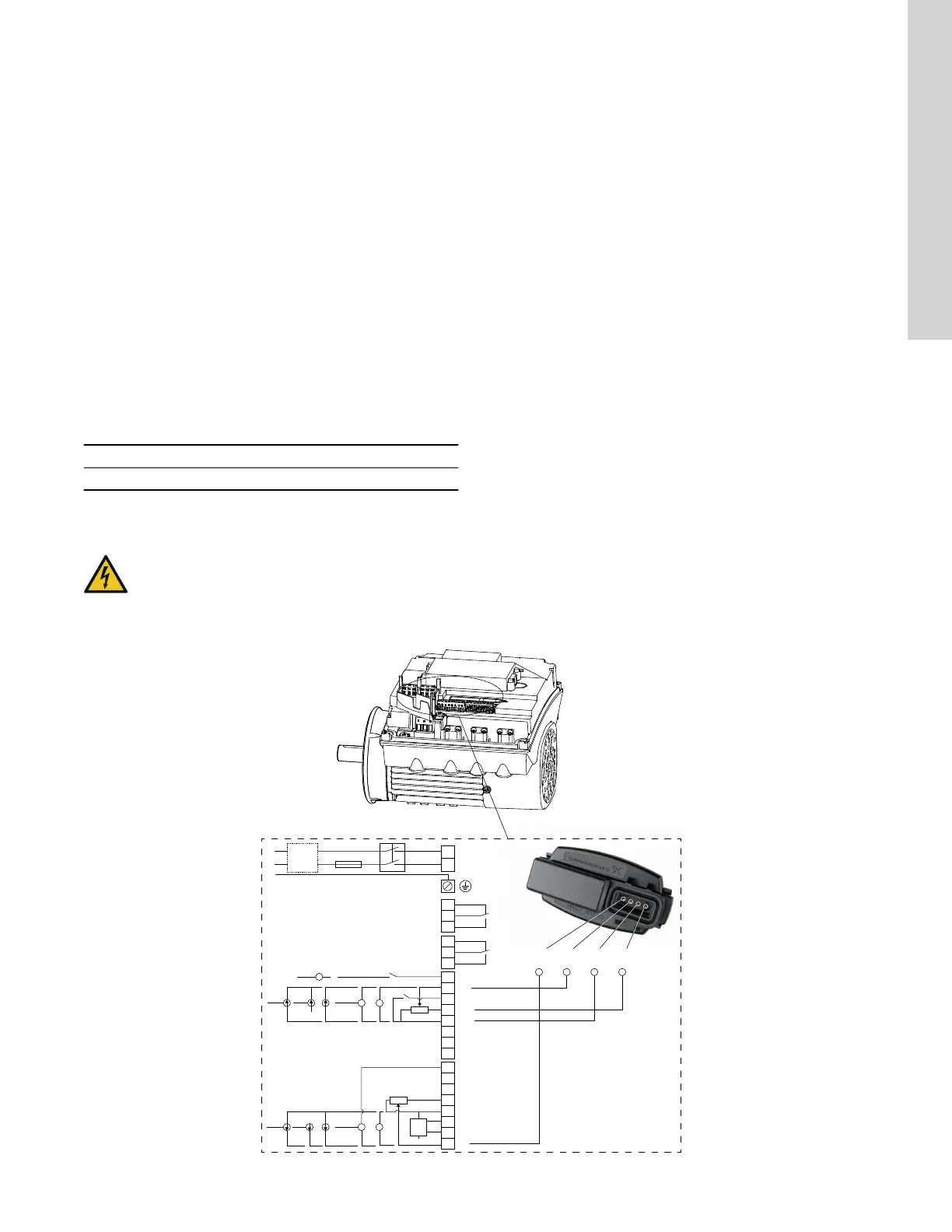

Connection terminals for inputs and outputs
DANGER
Electric shock
Death or serious personal injury
Make sure that the wires to be connected to the
connection groups below are separated from each
other by reinforced insulation in their entire lengths.
NC
C1
NO
N
L
N
L
PE
NC
C2
NO
10
4
2
5
6
A
Y
B
DI3/OC1
AI1
DI1
+5 V
GND
GENIbus A
GENIbus Y
GENIbus B
GND
+24 V
+24 V
+5 V
GND
GDS TX
GDS RX
AI2
3
15
8
26
23
25
24
7
+5 V
+
+
+
+
+24 V/+5 V+24 V+24 V
+24 V/+5 V+24 V
+24 V GND
OC DI
+24 V
2 3 41
1 2
3 4
TM077676
9
