Functions
Grundfos CUE
19
External setpoint with stop function
Setting via PC Tool.
The actual setpoint with stop is a linear function of the
exter
nal setpoint signal above 20% signal and on/off
operation below 20% signal. See fig. 19.

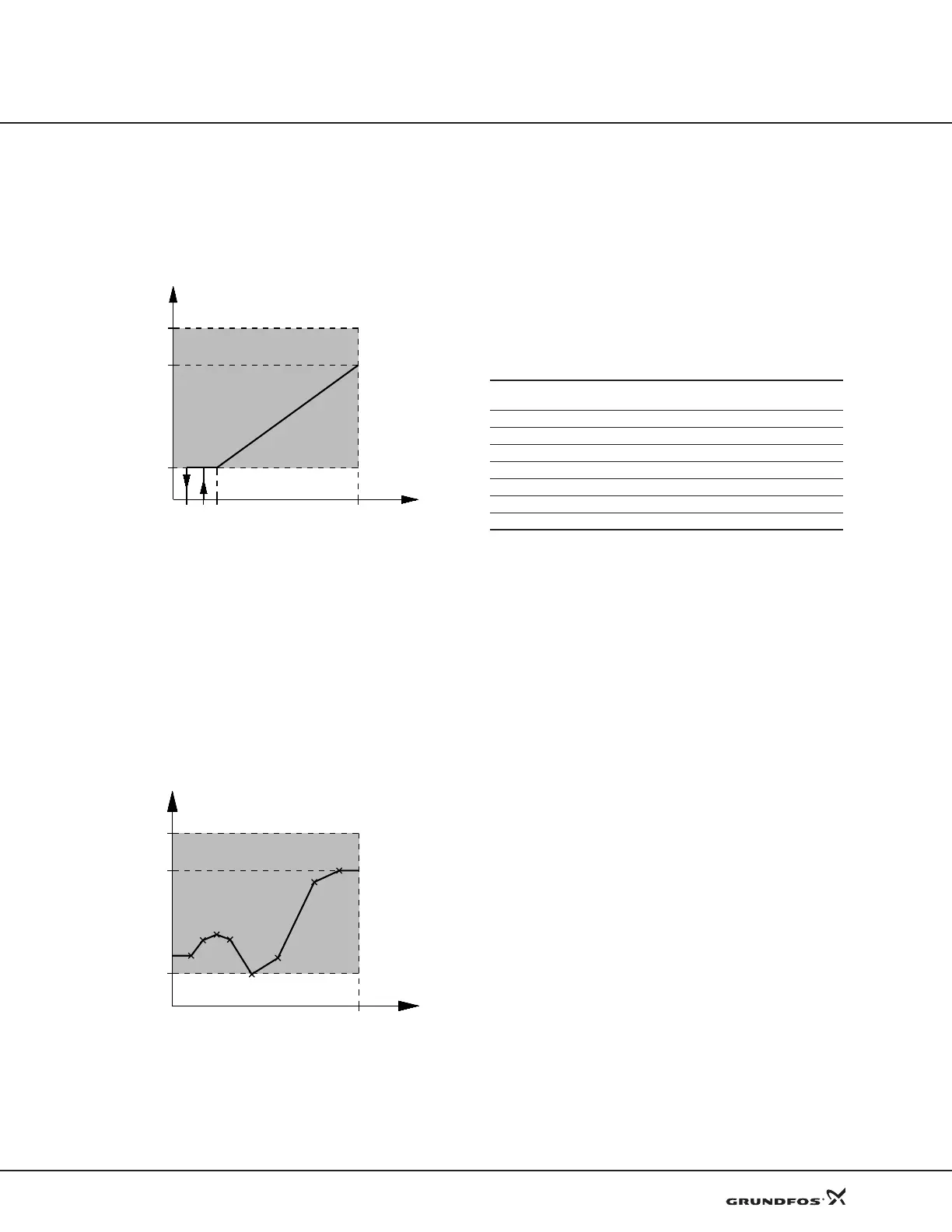

Fig. 19 External setpoint with stop function
When the external setpoint signal is below 10%, the
operating mode is Stop.
When the external setpoint signal is above 15%, the
oper
ating mode is Normal.
External setpoint based on a reference table
Setting via PC Tool.
The actual setpoint is a piecewise linear function of the
exter
nal setpoint signal. See fig. 20.
Fig. 20 External setpoint based on a reference table
The linear function is defined as an interpolation
between the points in a table. The table has of up to 8
points.
Predefined setpoints
Setting via PC Tool.
This function makes it possible to select up to seven
predefined setpoints using one to three digital inputs.
The setpoints are selected as a binary coding of the
digi
tal inputs as shown in the table below.
x = Closed contact
If none of the digital inputs are activated, the operating
mode can be configured to Stop or to being controlled
according to a setpoint set via the control panel.
If Min., Max. or Stop is selected via the control panel,
th
e predefined setpoints are overruled.
Note: Pr
edefined setpoints cannot be influenced by the
external setpoint input.
GENIbus setpoint
If the CUE is remote-controlled via the GENIbus input,
the setpoint is set via the bus.
Note: T
he GENIbus setpoint cannot be influenced by
the external setpoint signal.
TM04 0364 0608TM04 0366 0608
0 V
0/4 mA
10 V
20 mA
Min.
Max.
Setpoint,
CUE menu
Stop
20%
External setpoint signal
Actual
setpoint
0 V
0/4 mA
10 V
20 mA
Min.
Max.
Setpoint,
CUE menu
External setpoint signal
Actual
setpoint
Predefined
setpoint
DI 2 DI 3 DI 4
1x
2x
3xx
4x
5x x
6xx
7xxx
