Accessories
Grundfos CUE
55
Floor-mounting option
By means of a pedestal, the CUE can also be mounted
on the floor. A pedestal has been designed for that pur-
pose.
One pedestal fits both enclosure D1 and D2.
Scope of delivery
• Primary pedestal frame
• Vented front cover
• Two side covers
• Two front brackets
• Hardware for assembly
• Instructions.
Drilling dimensions

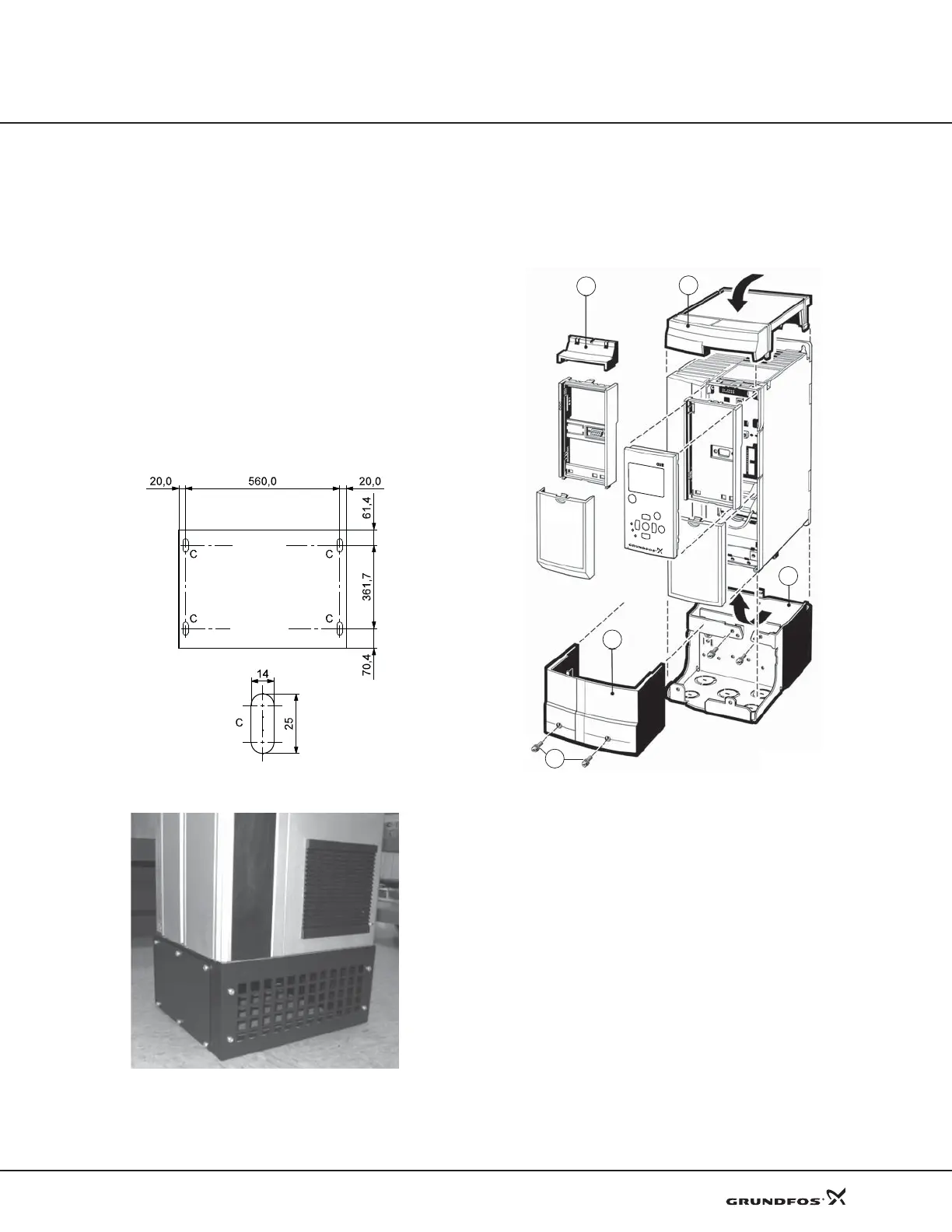

Fig. 59 Drilling template for pedestal [mm]
Fig. 60 CUE enclosure D1 or D2 on a pedestal
Please see the instructions of the pedestal option for
further information.
IP21/NEMA1 kit
An IP20 enclosure can be upgraded to IP21/NEMA1
with the IP20/NEMA1 kit. The power terminals (mains
and motor) will be covered. See fig. 61.
Fig. 61 Example of IP21/NEMA1 kit for enclosure A3
• A: Top cover
•B: Brim
•C: Base part
• D: Base cover
•E: Screw(s).
If the MCB 114 sensor input module is fitted, the brim
(
B) must be fitted on the top cover (A).
TM03 9923 4607TM03 9895 4607
Back
Front
TM04 0372 0608
CU
E
C
B
A
D
E
