Functions
Grundfos CUE
25
Ramps
The controller incorporates two types of ramp:
• ramp-up and ramp-down (default)
• initial and final ramps (setting via PC-Tool).

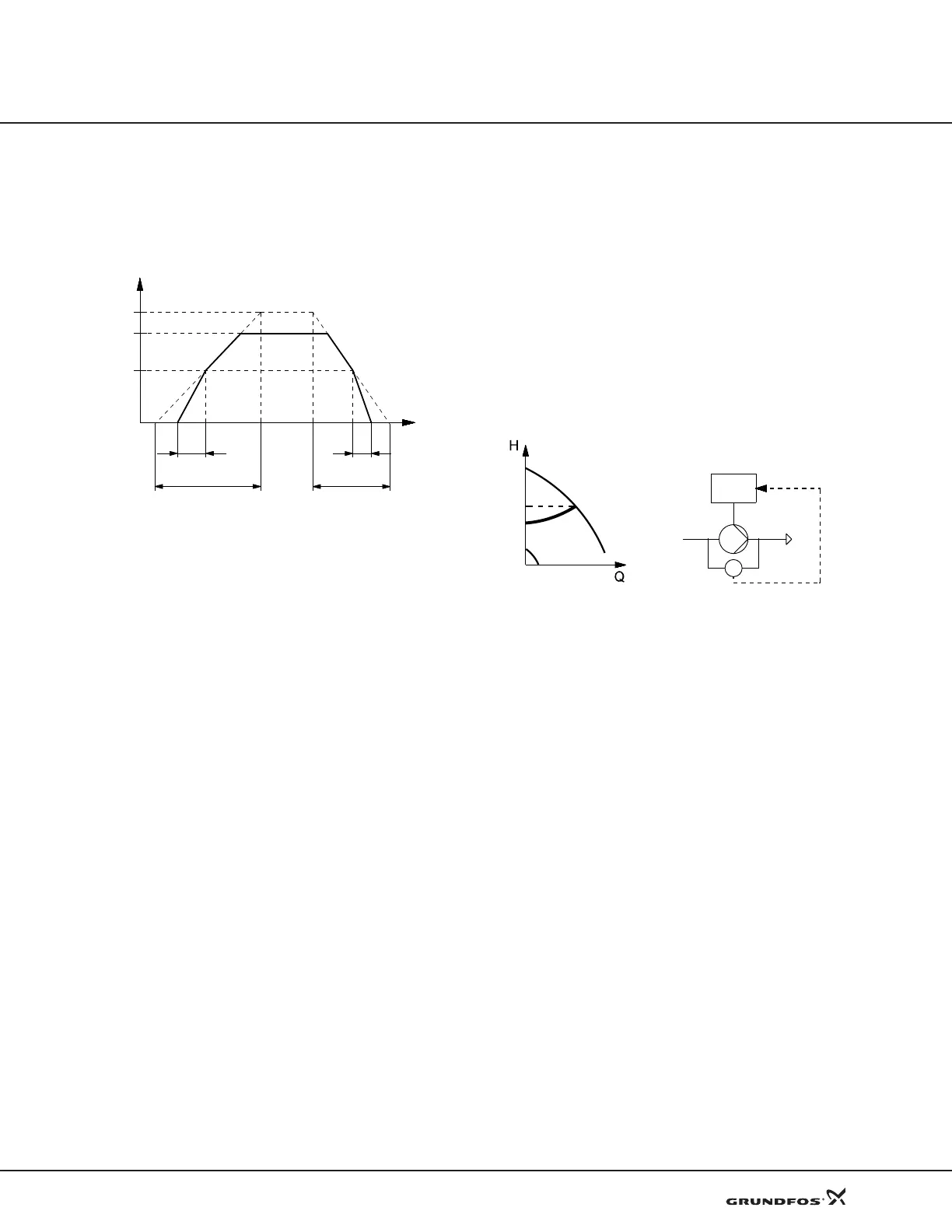

Fig. 30 Ramp-up and ramp-down of the CUE
Ramp-up and ramp-down
The ramp-up and ramp-down are used for protection
against
overload when starting and stopping the CUE.
The setting is done by means of the control panel.
The ramp-up time is the acceleration time from 0 rpm to
nominal motor
speed.
The ramp-down time is the deceleration time from nom-
inal motor speed to 0 rpm.
Additional set of ramp-up and ramp-down (setting via
PC T
ool)
An additional set of ramp-up and ramp-down can be
remot
e-set to predefined ramps by means of a digital
input.
Initial and final ramps
The initial and final ramps prevent operation for a
longer
time than necessary at speeds below minimum
speed.
The setting is done automatically based on the pump
family
selected in the start-up guide.
Proportional differential pressure,
parabolic
Setting via PC Tool.
The proportional differential pressure can be selected
w
ith one of these flow dependencies:
• linear (default), see page 15
• parabolic (setting via PC Tool).
When the flow dependency is selected as parabolic, the
dif
ferential pressure of the pump will be reduced with a
parabolic curve at falling flow rate and increased at ris-
ing flow rate. See fig. 31.
Fig. 31 Proportional differential pressure, parabolic curve
The pump is controlled according to a differential pres-
sure measured across the pump. This means that the
pump
system offers a flow-compensated differential
pressure in the Q-range of 0 to Q
max.
, represented by
the parabolic curve in the QH diagram.
TM03 9439 0908
Nominal
Ramp-up Ramp-down
Speed
Time
Min.
Initial ramp Final ramp
Max.
TM04 1695 0908
TM03 8804 2507
Q
max.
Δp
CUE
