Grundfos CUE Series Product Guide

Accessories
Grundfos CUE
54
Grundfos Local Control Panel, GLCP
GLCP is used for local setting of the CUE.
The CUE unit comes default with a GLCP fitted, but the
contr
ol panel is also available as an option.
Cable is not included in the option.

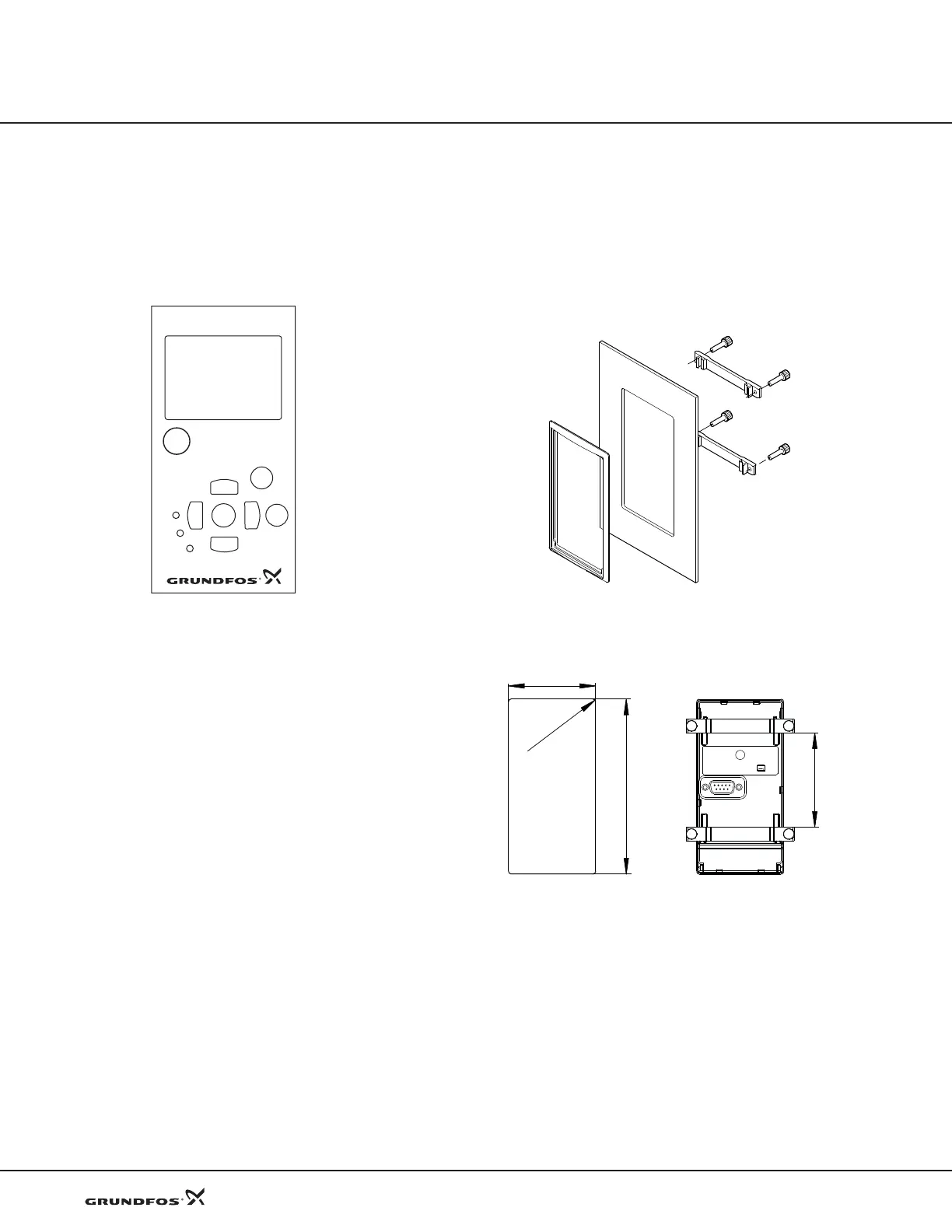

Fig. 56 Control panel of the CUE
For further information, see the installation and operat-
ing instructions of the CUE.
Remote-mounting option for GLCP
By means of a remote-mounting option, the GLCP can
also be moved to the front of a cabinet. The enclosure
is IP65. The fastening screws must be tightened to a
torque of maximum 1 Nm.
The remote-mounting option includes fasteners, 3 m
cable
and gasket.
Fig. 57 Remote-mounting option for GLCP
Dimensions
Fig. 58 Cabinet mounting, dimensions of cutout
For further information, see the installation and operat-
ing instructions of the remote-mounting option.
TM03 8719 2507
+
-
CUCUE
>
>
>
>
OK
On/On/
Off
OnOn
Off
Alarm
Alarm
TM04 0376 0608TM04 0377 0608
64.5 ± 1 mm
129.5 ± 1 mm
M
a
x
.
R
2
Min. 72 mm
Cutout

Grundfos CUE Series Specifications

General

Category	DC Drives
Output Voltage	24 V DC
Control Signal	0-10 V, 4-20 mA
Communication	Modbus RTU
Protection Features	Overvoltage, overcurrent, overtemperature, short circuit
Humidity	5% to 95% (non-condensing)
Enclosure class	IP20
Enclosure Rating	IP20
