Grundfos CUE Series Product Guide

Installation
Grundfos CUE
36

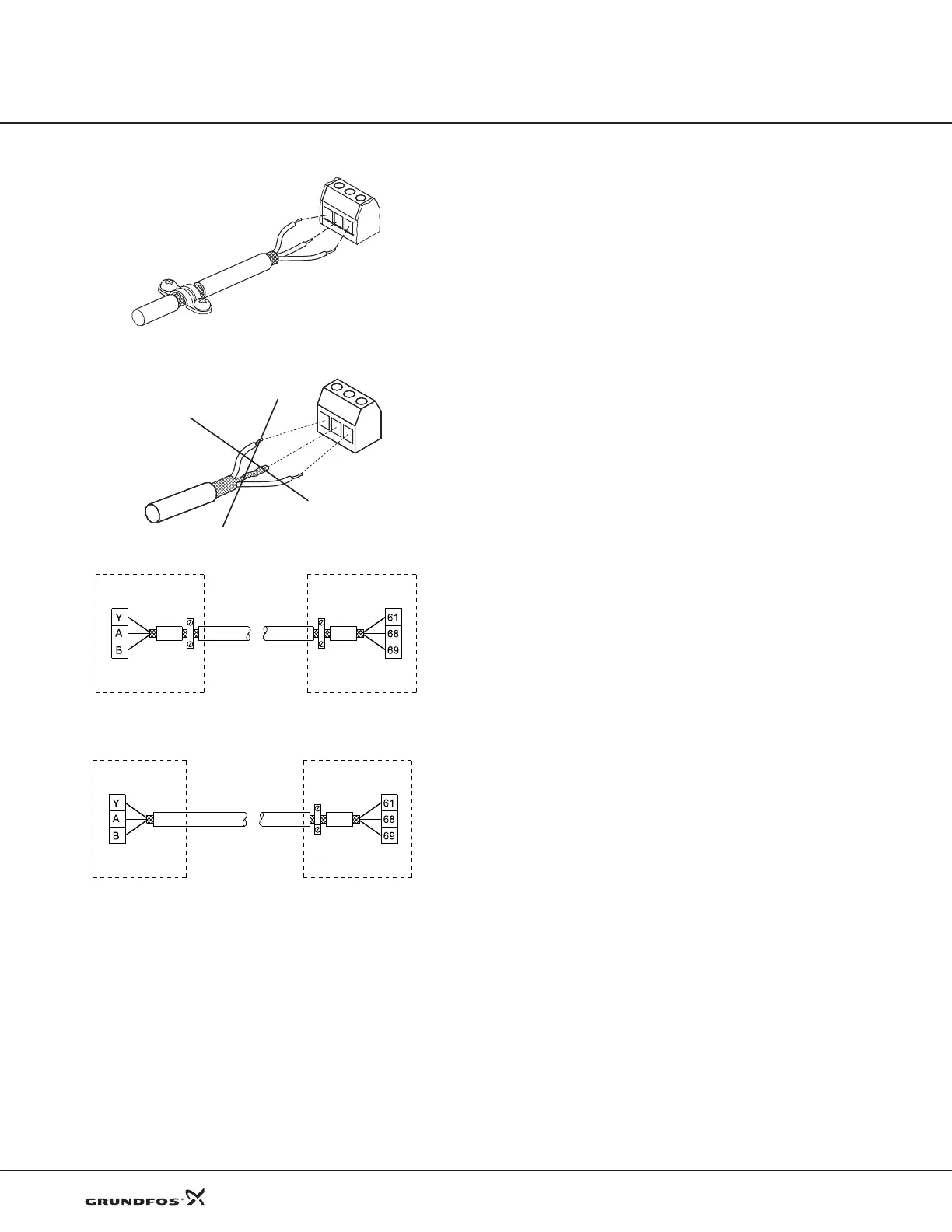

Fig. 43 Example of stripped cable with screen
Fig. 44 Do not twist the screen ends
Fig. 45 Example of connection of a 3-conductor bus cable
with screen connected at both ends
Fig. 46 Example of connection of a 3-conductor bus cable
with screen connected at the CUE (controller with
no cable clamps)
TM02 1325 0901TM03 8812 2507TM03 8732 2407TM03 8731 2407
CUEController
CUEController
