Grundfos CUE Series Product Guide

Accessories
Grundfos CUE
57

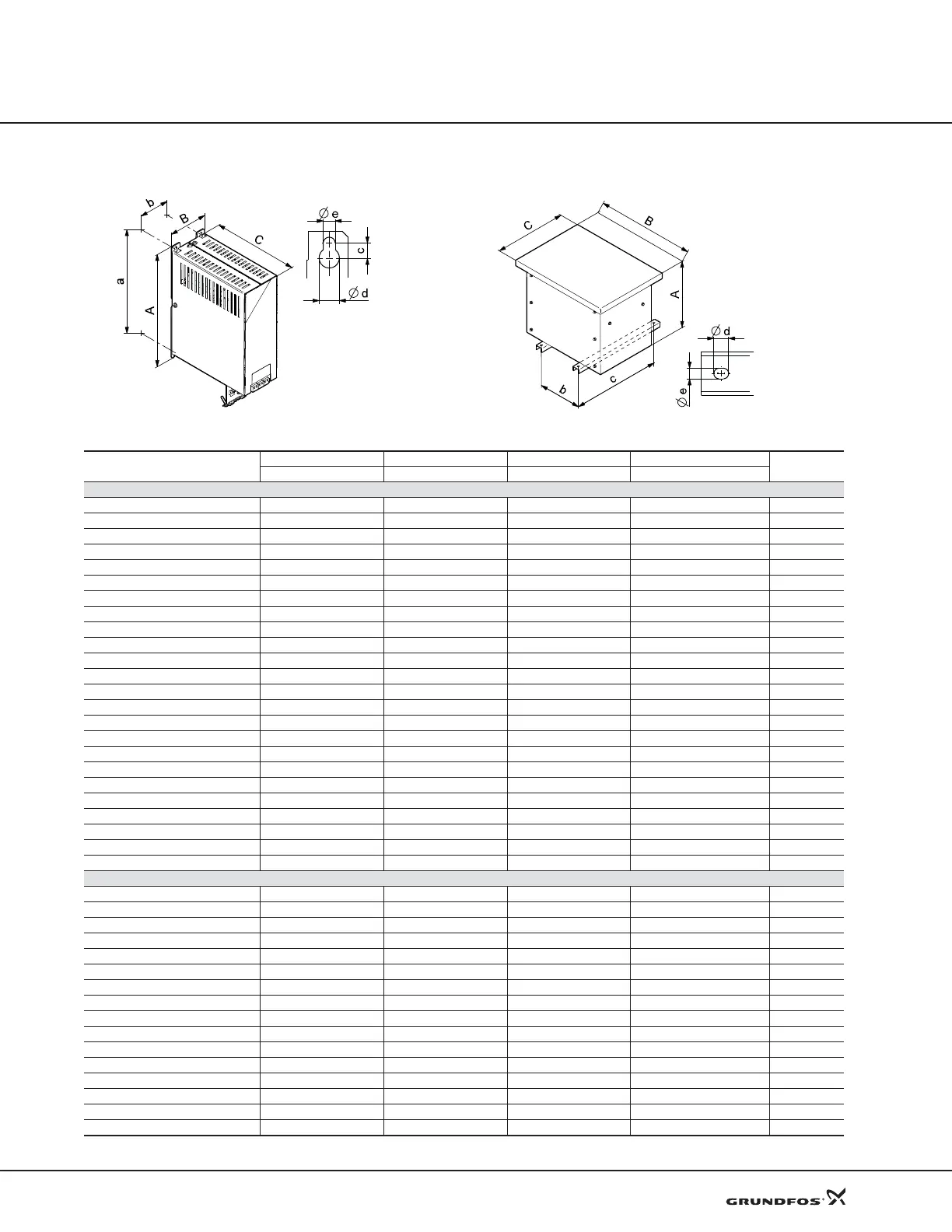

Dimensions and weight of output filters
TM04 0625 0908 TM04 0624 0908
Fig. 63 Wall mounting Fig. 64 Floor mounting
Product number Mounting
Height [in (mm)] Width [in (mm)] Depth [in (mm)] Screw holes [in (mm)]
Weight
[lbs (kg)]
AaBbCc∅d ∅ef
Sine-wave filters
96754941 Wall 7.87 (200) 7.48 (190) 2.95 (75) 2.36 (60) 8.07 (205) – .315 (8) .177 (4.5) .276 (7) 7.3 (3.3)
96754972 Wall 7.87 (200) 7.48 (190) 2.95 (75) 2.36 (60) 8.07 (205) – .315 (8) .177 (4.5) .276 (7) 9.3 (4.2)
96754973 Wall 10.55 (268) 10.12 (257) 3.54 (90) 2.76 (70) 8.11 (206) – .433 (11) .256 (6.5) .315 (8) 101.0 (5.8)
96754974 Wall 10.55 (268) 10.12 (257) 3.54 (90) 2.76 (70) 8.07 (205) – .433 (11) .256 (6.5) .315 (8) 103.9 (7.1)
96754976 Wall 10.55 (268) 10.12 (257) 5.12 (130) 3.54 (90) 8.07 (205) – .433 (11) .256 (6.5) .315 (8) 20.1 (9.1)
96754977 Wall 12.99 (330) 12.28 (312) 5.90 (150) 4.72 (120) 10.24 (260) – .748 (19) .354 (9) .472 (12) 37.3 (16.9)
96754978 Wall 16.93 (430) 16.22 (412) 5.90 (150) 4.72 (120) 10.24 (260) – .748 (19) .354 (9) .472 (12) 43.9 (19.9)
96755019 Wall 20.87 (530) 19.69 (500) 6.69 (170) 4.92 (125) 10.24 (260) – .748 (19) .354 (9) .472 (12) 86.0 (39)
96755021 Wall 24.02 (610) 22.83 (580) 6.69 (170) 4.92 (125) 10.24 (260) – .748 (19) .354 (9) .472 (12) 90.4 (41)
96755032 Wall 24.02 (610) 22.83 (580) 6.69 (170) 5.32 (135) 10.24 (260) – .748 (19) .354 (9) .472 (12) 119.0 (54)
96755033 Floor 20.55 (522) – 26.38 (670) 11.42 (290) 19.69 (500) 18.11 (460) .591 (15) .433 (11) – 191.8 (87)
96755034 Floor 30.79 (782) – 37.01 (940) 15.74 (400) 25.60 (650) 24.02 (610) .591 (15) .433 (11) – 249.1 (113)
96755037 Floor 30.79 (782) – 37.01 (940) 15.74 (400) 25.60 (650) 24.02 (610) .591 (15) .433 (11) – 418.9 (190)
96755038 Floor 30.79 (782) – 37.01 (940) 16.93 (430) 25.60 (650) 24.02 (610) .591 (15) .433 (11) – 540.1 (245)
96755039 Floor 29.21 (742) – 4.39 (1050) 16.93 (430) 29.92 (760) 28.32 (720) .591 (15) .433 (11) – 683.4 (310)
96755040 Wall 16.93 (430) 16.22 (412) 5.90 (150) 4.72 (120) 10.24 (260) – .748 (19) .354 (9) .472 (12) 36.8 (16.7)
96755041 Floor 20.55 (522) – 26.38 (670) 8.66 (220) 19.69 (500) 18.11 (460) .591 (15) .433 (11) – 121.3 (55)
96755042 Floor 20.55 (522) – 26.38 (670) 10.24 (260) 19.69 (500) 18.11 (460) .591 (15) .433 (11) – 154.3 (70)
96755043 Floor 20.55 (522) – 26.38 (670) 12.20 (310) 19.69 (500) 18.11 (460) .591 (15) .433 (11) – 231.5 (105)
96755044 Floor 20.55 (522) – 25.20 (640) 14.96 (380) 19.69 (500) 18.11 (460) .591 (15) .433 (11) – 330.7 (150)
96755045 Floor 30.79 (782) – 35.83 (910) 16.93 (430) 25.60 (650) 24.02 (610) .591 (15) .433 (11) – 485.0 (220)
96755047 Floor 30.79 (782) – 37.01 (940) 19.69 (500) 25.60 (650) 24.02 (610) .591 (15) .433 (11) – 628.3 (285)
96755049 Floor 43.35 (1152) – 50.79 (1290) 19.29 (490) 31.50 (800) 29.92 (760) .591 (15) .433 (11) – 815.7 (370)
96755050 Floor 43.35 (1152) – 50.79 (1290) 21.26 (540) 31.50 (800) 29.92 (760) – – – 1212.5 (550)
dU/dt filters
96755062 Wall 10.55 (268) 10.12 (257) 4.72 (120) 3.54 (90) 8.07 (205) – .433 (11) .256 (6.5) .315 (8) 11.5 (5.2)
96755063 Wall 12.99 (330) 12.28 (312) 6.69 (170) 4.92 (125) 10.24 (260) – .748 (19) .354 (9) .472 (12) 20.5 (9.3)
96755064 Wall 12.99 (330) 12.28 (312) 6.69 (170) 4.92 (125) 10.24 (260) – .748 (19) .354 (9) .472 (12) 23.6 (10.7)
96755066 Wall 12.99 (330) 12.28 (312) 6.69 (170) 4.92 (125) 10.24 (260) – .748 (19) .354 (9) .472 (12) 28.2 (12.8)
96755067 Floor 18.19 (462) – 24.02 (610) 6.89 (175) 17.32 (440) 15.74 (400) .591 (15) .433 (11) – 72.8 (33)
96755069 Floor 18.23 (463) – 24.02 (610) 7.48 (190) 17.32 (440) 15.74 (400) .591 (15) .433 (11) – 110.2 (50)
96755070 Floor 22.48 (571) – 30.31 (770) 7.48 (190) 21.56 (550) 20.08 (510) .591 (15) .433 (11) – 132.3 (60)
96755071 Floor 20.55 (522) – 26.38 (670) 8.47 (215) 19.69 (500) 18.11 (460) .591 (15) .433 (11) – 127.9 (58)
96755078 Wall – 11.81 (300) 5.91 (150) 4.72 (120) 10.24 (260) – .748 (19) .354 (9) .472 (12) 18.3 (8.3)
96755079 Wall – 12.28 (312) 6.69 (170) 4.92 (125) 10.24 (260) – .748 (19) .354 (9) .472 (12) 20.7 (9.4)
96755080 Wall 12.99 (330) 12.28 (312) 6.69 (170) 4.92 (125) 10.24 (260) – .748 (19) .354 (9) .472 (12) 26.01 (11.8)
96755081 Wall 12.99 (330) 12.28 (312) 6.69 (170) 4.92 (125) 10.24 (260) – .748 (19) .354 (9) .472 (12) 26.9 (12.2)
96755082 Floor 20.55 (522) – 26.38 (670) 8.47 (215) 19.69 (500) 18.11 (460) .591 (15 .433 (11) – 99.2 (45)
96755083 Floor 20.55 (522) – 25.20 (640) 8.47 (215) 19.69 (500) 18.11 (460) .591 (15 .433 (11) – 103.6 (47)
96755084 Floor 20.55 (522) – 26.38 (670) 8.47 (215) 19.69 (500) 18.11 (460) .591 (15 .433 (11) – 103.6 (47)
96755085 Floor 20.55 (522) – 26.38 (670) 8.47 (215) 19.69 (500) 18.11 (460) .591 (15 .433 (11) – 114.6 (52)
