10.1.2 Start or stop the system
Start each pump by pressing
or by continuously pressing
until the desired setpoint is indicated.
Stop the system by pressing on each pump. When the pump
is stopped, the "Stop" text next to the button will illuminate. Each
pump can also be stopped by continuously pressing
until
none of the light fields are on.
If a pump has been stopped by pressing , it can only be
released for operation by pressing again.
If a pump has been stopped by pressing , it can only be
restarted by pressing .
The pump can also be stopped with Grundfos GO Remote or via
a digital input set to "External stop". See section 16. Priority of
settings.
10.1.3 Resetting of fault indications
A fault indication can be reset in one of the following ways:
• Via the digital input if it has been set to "Alarm resetting".
• Briefly press or
on one of the pumps. This will not
change the setpoint.
A fault indication cannot be reset by pressing or
if the
buttons have been locked.
• Switch off the power supply until the indicator lights are off.
• Switch the external start/stop input off and then on again.
• With Grundfos GO Remote.
10.2 Advanced control panel
The pumps can be fitted with the advanced control panel as an
option.

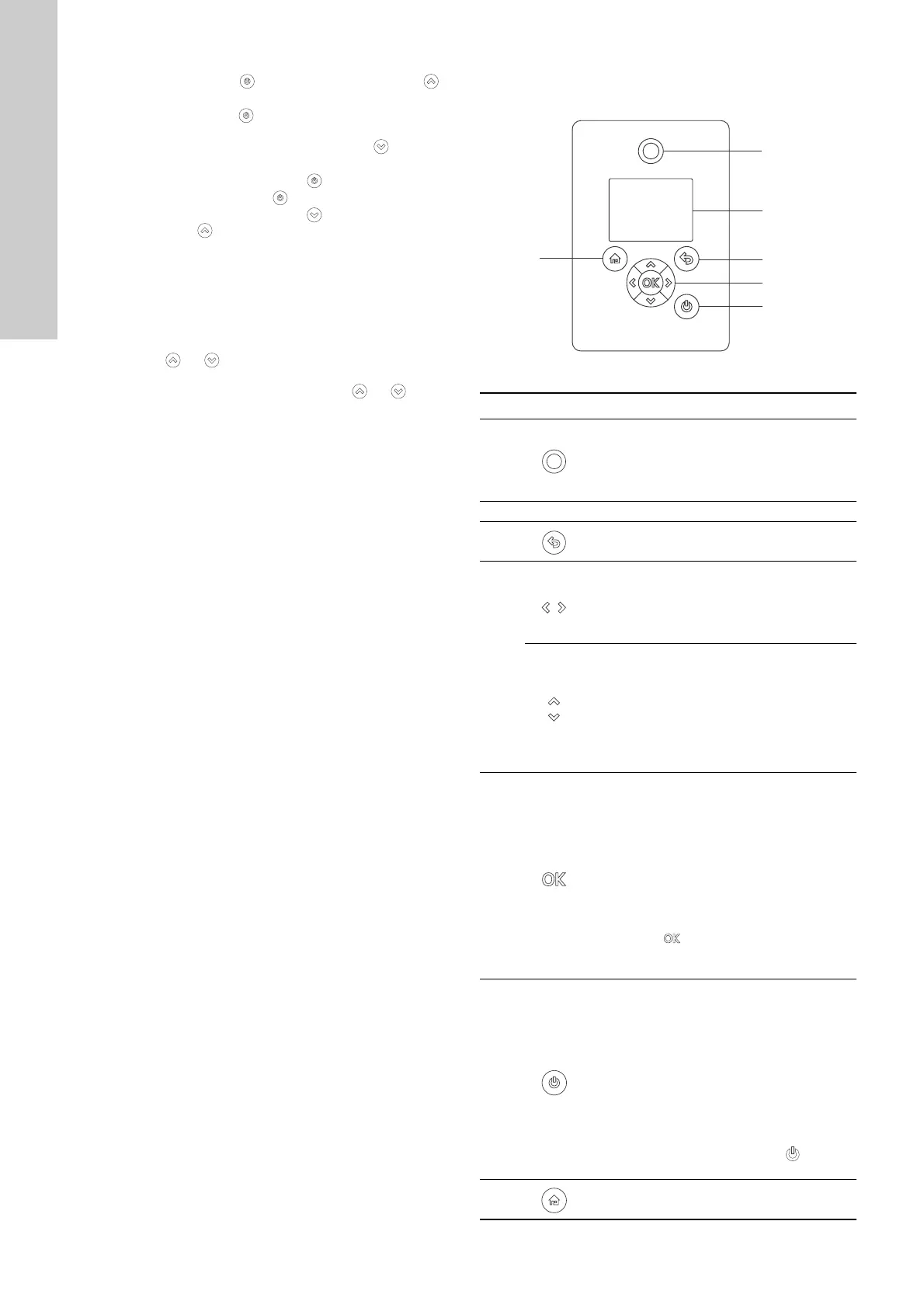

Fig. 33 Advanced control panel
TM05 4849 1013
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of individual
pumps.
For further information, see section
17. Grundfos Eye.
2 - Graphical colour display.
3 Goes one step back.
4
Navigates between main menus, displays and
digits.
When you change the menu, the display
always shows the top display of the new
menu.
Navigates between submenus.
Changes value settings.
Note: If you have disabled the function to
configure settings with the Enable/Disable
Settings function, you can temporarily enable
it again by pressing these buttons
simultaneously for at least 5 seconds. See
section "Buttons on product".
4
Saves changed values, resets alarms and
expands the value field.
Enables radio communication with Grundfos
GO and other products of the same type.
When you try to establish radio
communication between the pump and
Grundfos GO or another pump, the green
indicator light in Grundfos Eye flashes. A note
also appears in the pump display stating that
a wireless device wants to connect to the
pump. Press on the pump control panel to
allow radio communication with Grundfos GO
and other products of the same type.
5
Makes the pump ready for operation, and
starts and stops the pump.
Start:
If you press the button when the pump is
stopped, the pump only starts if no other
functions with higher priority have been
enabled. See section 16. Priority of settings.
Stop:
If you press the button when the pump is
running, the pump will always stop. When you
stop the pump via this button, the icon
appears in the bottom of the display.
