Grundfos SCALA1 User Manual

Make sure that the electrical installation
supports the rated current [A] of the
product. See the nameplate of this
product.
12
3
4
TM075384

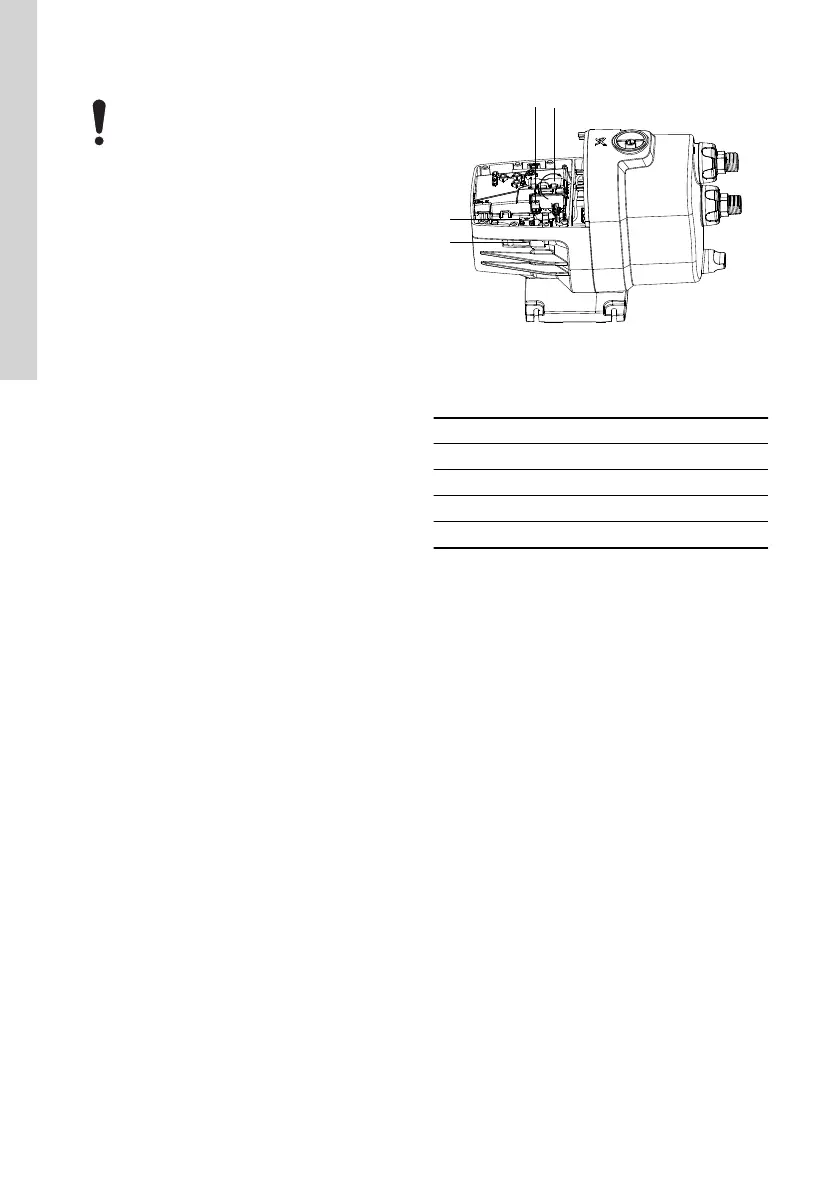

Connecting external input
Pos. Description
1 Lid on PCB cover
2 Terminals
3 Cable clip
4 Cable gland
1. Remove the screws and lift the pump cover.
2. Open the lid on the PCB cover.
3. Pull the cable through the gland and the clip.
4. Connect to the terminals.
5. Fix the clip to hold cable in place.
6. Close the lid.
7. Return the pump cover and screw it in place.
8. Power on the pump and connect with Grundfos
GO Remote.
18
English (GB)

Grundfos SCALA1 Specifications

General

Inlet/Outlet Size	1 inch
Weight	10 kg
Mains Frequency	50/60 Hz
Pumped liquid	Clean water
Housing Material	Composite
Pump Type	Self-priming, multistage centrifugal pump
Power Supply	1 x 230 V
Liquid Temperature Range	0°C to 45°C
Protection Class	IPX4D
System Pressure	Max. 10 bar
Approvals	CE, EAC
Installation Type	Horizontal
