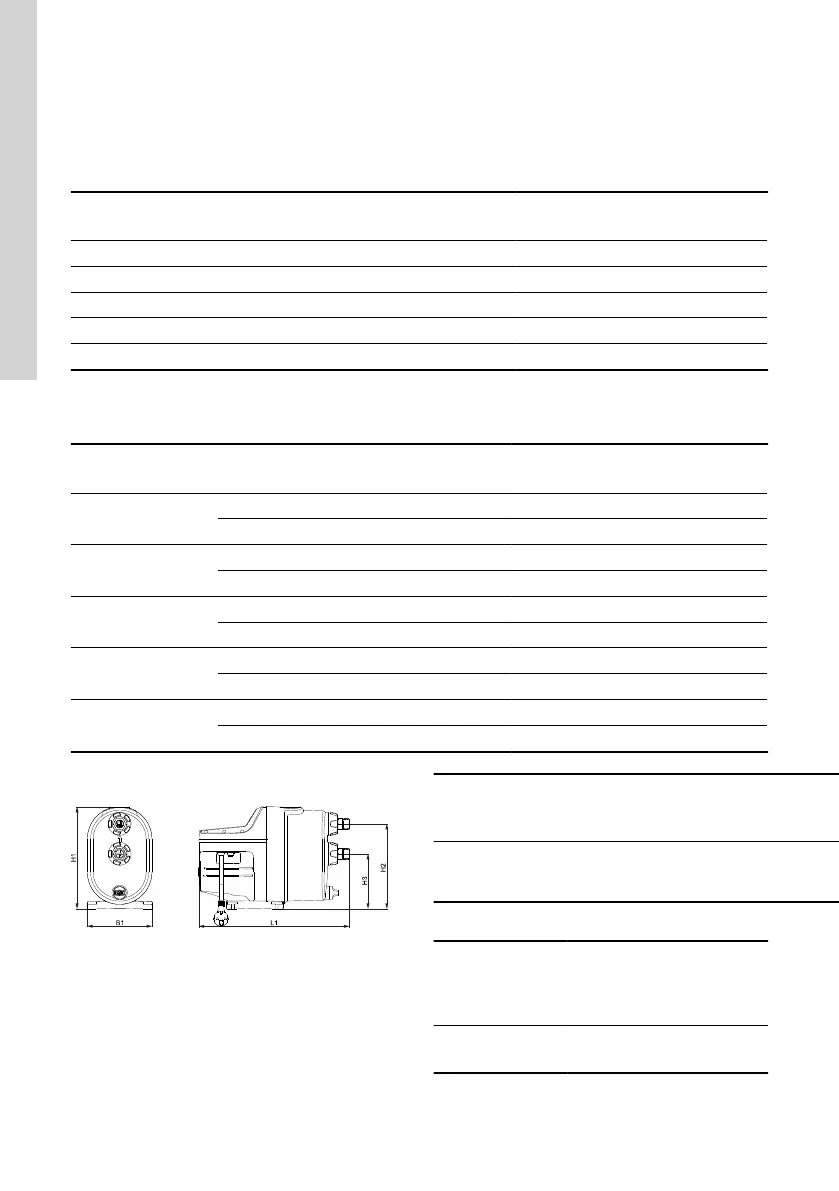

16.3 Características elétricas
Todas as variantes possuem a classe de isolamento
F.
50 Hz
Modelo de bomba
Tensão
[V]
P1
[W (hp)]
P2
[W (hp)]
n
[rpm]
I
n
[A]
I
start
[A]
Energia em standby
[W]
SCALA1 3-25 1 x 230 550 (0.74) 360 (0.50) 2850 2,58 13,0 1,5
SCALA1 3-35 1 x 230 720 (0.97) 450 (0.60) 2800 3,27 13,0 1,5
SCALA1 3-45 1 x 230 910 (1.23) 580 (0.80) 2800 4,10 17,0 1,5
SCALA1 5-25 1 x 230 650 (0.88) 425 (0.60) 2850 3,00 13,0 1,5
SCALA1 5-55 1 x 230 1200 (1.62) 780 (1.00) 2850 5,38 26,0 1,5
60 Hz
Modelo de bomba
Tensão
[V]
P1
[W (hp)]
P2
[W (hp)]
n
[rpm]
I
n
[A]
I
start
[A]
Energia em standby
[W]
SCALA1 3-25
1 x 230 540 (0.72) 350 (0.50) 3450 2,37 13,0 1,5
1 x 115 560 (0.75) 350 (0.50) 3450 5,10 29,5 1,5
SCALA1 3-35
1 x 230 650 (0.88) 470 (0.60) 3400 2,76 13,0 1,5
1 x 115 650 (0.88) 470 (0.60) 3400 5,71 29,5 1,5
SCALA1 3-45
1 x 230 870 (1.17) 570 (0.80) 3350 3,72 15,5 1,5
1 x 115 950 (1.28) 590 (0.80) 3400 8,62 40,0 1,5
SCALA1 5-25
1 x 230 600 (0.80) 420 (0.60) 3450 2,60 13,0 1,5
1 x 115 610 (0.82) 450 (0.60) 3450 5,70 29,5 1,5
SCALA1 5-55
1 x 230 1250 (1.68) 810 (1.10) 3450 5,25 22,5 1,5
1 x 115 1250 (1.68) 860 (1.10) 3450 11,57 64,0 1,5
16.4 Dimensões e pesos
TM075267
Pos.
H1
[mm]
[polegadas]
H2
[mm]
[polegadas]
H3
[mm]
[polegadas]
L1
[mm]
[polegadas]
B1
[mm]
[polegadas]
SCALA1
(todas as
variantes)
316
12,4
263
10,4
171
6,7
466
18,4
202
8,0
Peso
SCALA1
3-25
[kg]
[lb]
SCALA1
3-35
[kg]
[lb]
SCALA1
3-45
[kg]
[lb]
SCALA1
5-25
[kg]
[lb]
SCALA1
5-25
[kg]
[lb]
11
24,2
12
26,4
12
26,4
12
26,4
14
30,8
72
Português (PT)

Grundfos SCALA1 Specifications

General

Inlet/Outlet Size	1 inch
Weight	10 kg
Mains Frequency	50/60 Hz
Pumped liquid	Clean water
Housing Material	Composite
Pump Type	Self-priming, multistage centrifugal pump
Power Supply	1 x 230 V
Liquid Temperature Range	0°C to 45°C
Protection Class	IPX4D
System Pressure	Max. 10 bar
Approvals	CE, EAC
Installation Type	Horizontal
