C
A
B
TM064435

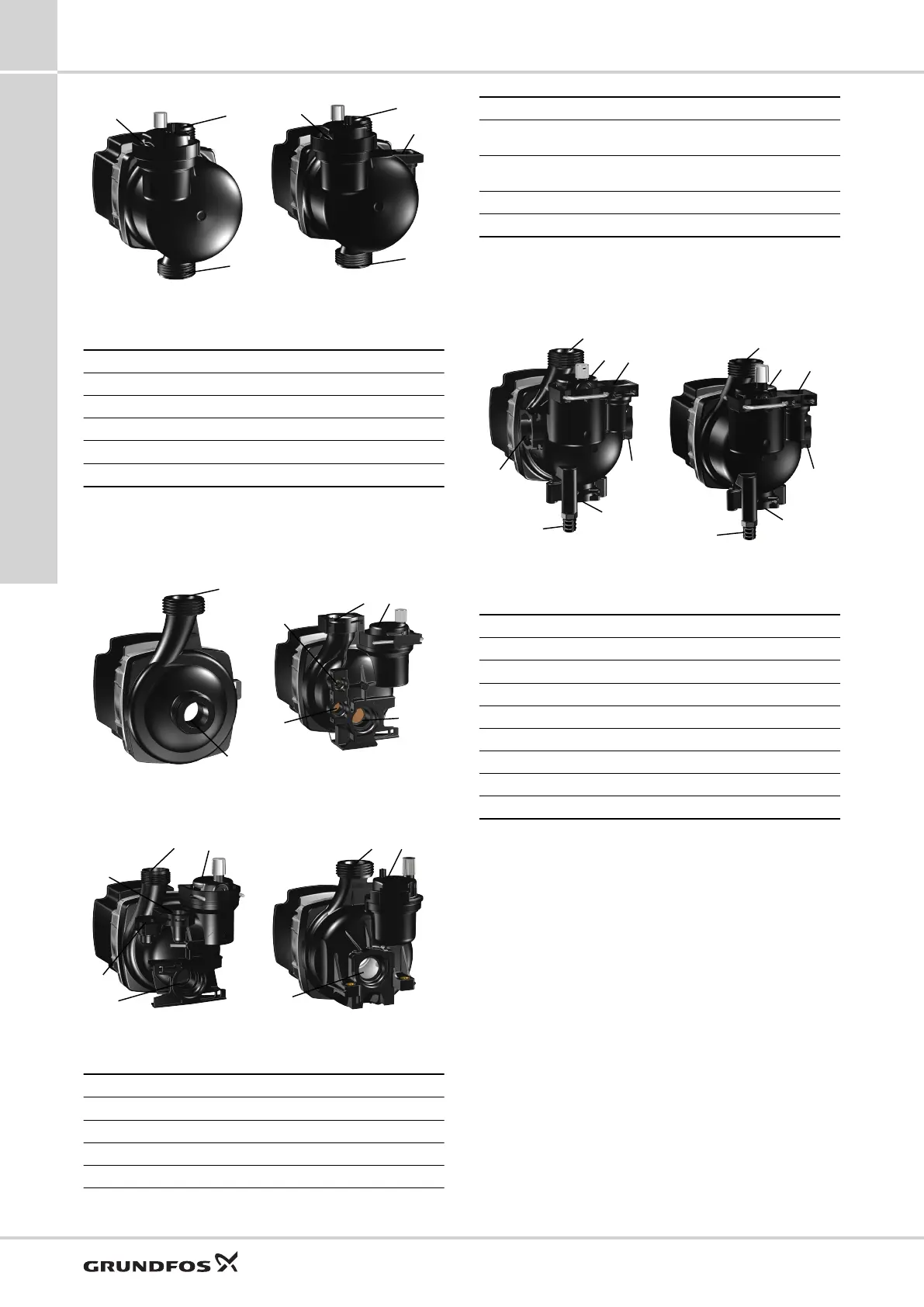

CIAO2 composite, inline,
air outlet
A
E
B
C
TM064436
CIAO2 AC composite,
inline, air outlet, alternate
connection
Pos. Description
A Outlet G 1 B (ISO 228/1) assembly torque 30 ± 10 Nm
B Inlet G 1 B (ISO 228/1) assembly torque 30 ± 10 Nm
C Air vent
D Copper pipe connection, ∅14 mm, can be open or closed
E Copper pipe connection, ∅10 mm, additional
Composite end-suction housings with
threads or clips, with integrated vent and
special connections
A
B
TM064437
CES3 composite, end-
suction
C
E
D
F
G
TM064438
CESAO1 composite, end-
suction, air outlet
H
D
G
E
F
TM064439
CESAO2 composite end-
suction air outlet
DA
G
TM064440
CESAO4 composite end-
suction air outlet
Pos. Description
A Outlet G 1 B (ISO 228/1) assembly torque 30 ± 10 Nm
B Inlet G 1 B (ISO 228/1) assembly torque 30 ± 10 Nm
C Outlet copper pipe connection Ø18 mm
D Vent
Pos. Description
E
Connection for manometer or pressure sensor, Ø6 mm, can
be opened or closed
F
Connection for manometer or pressure sensor, Ø10 mm, can
be opened or closed
G Inlet copper pipe connection Ø18 mm, fits Fugas brass block
H Outlet G 3/4 B (ISO 228/1) assembly torque 25 ± 5 Nm
Composite in-line housings with threads or
clips, with integrated vent, drain and special
connections
C
A
B
D
E
F
H
TM064441
AOKR composite, air
outlet, alternate
connection, drain
A
B
C
G
E
H
TM064442
CAOD composite, air
outlet, drain
Pos. Description
A Outlet G 1 B (ISO 228/1) assembly torque 30 ± 10 Nm
B Inlet ∅28 mm, with brass fitting
C Vent
D Connection for manometer or pressure sensor ∅21 mm
E Additional inlet hairpin side connection ∅28 mm
F Additional inlet hairpin side connection ∅28 mm
G Connection for expansion tank, etc. ∅21 mm
H Drain
UPM3
9
40
Technical description
