The battery charge status indicator, located to the right of the display,
provides a visual indication (BLUE) of the battery recharging
function and battery status during operation.
During battery charging the indicator will be lit whenever the Micro-
USB connector is engaged and powered. The rate of illumination of
the indicator provides a means of identifying the status of the
charging function, and is defined as follows:
Steady-state illumination indicates the battery is
fully charged. This identifies that the charging cycle
has been completed or was not implemented because
the battery was already fully charged.
Slow blink illumination indicates the charging
function is in process.
Fast blink illumination indicates a fault condition in
which the user would be directed by the user manual
to return the instrument for service.
During instrument operation, the user is warned of a low battery
condition by the following illumination of the battery status indicator:
Two fast blinks followed by a pause and then
repeated until the battery is charged.
Installing the Probe

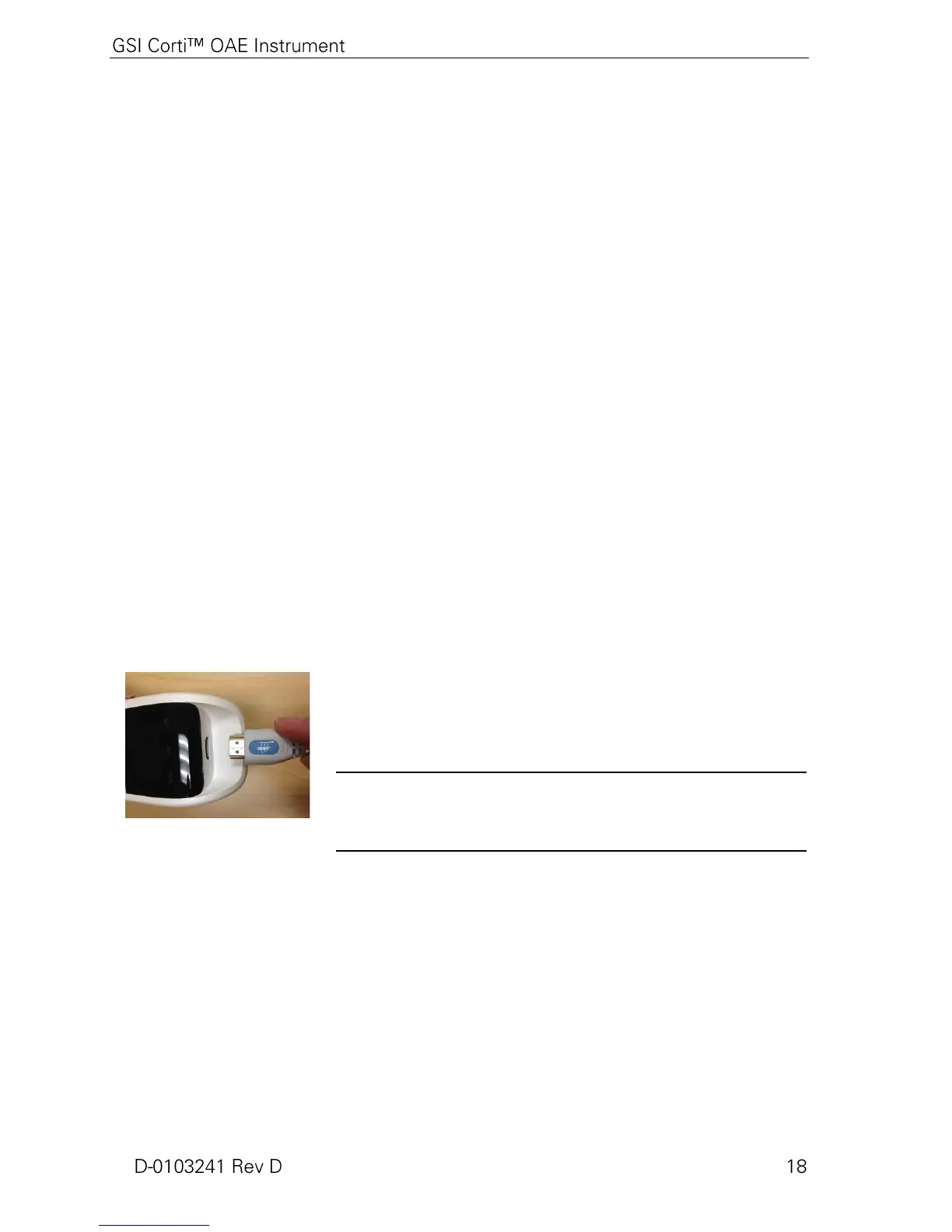

Insert the Probe’s HDMI connector firmly into the socket on the top
of the Corti (Figure 3). The plug will fit in only one direction. The
GSI wave logo will align with the instrument control panel.
NOTE: Misalignment of the plug and socket can cause damage. The
plug and socket should be visually inspected prior to each installation
of the remote probe. If damage is observed, contact GSI.
