STRUCTURE AND FUNCTION COBOSAFE CBSF- BASIC
8 Structure and Function CoboSafe CBSF- Basic
8.1 CoboSafe CBSF-Basic
8.2 Menu Navigation CBSF-Basic
■ Measuring Surface [1]
■ Enclosure [2]
■ Display [3]
■ Softkeys [4]
■ Handgrip [5]
■ Battery Compartment [6]
The force sensor is operated via 3 softkeys
each, which can be assigned different func-
tions in each menu.
In the following menu trees, the softkeys are la-
beled F1, F2 and F3.
Pressing the designated softkey executes a
function, switches between setting options or
navigates in menus.

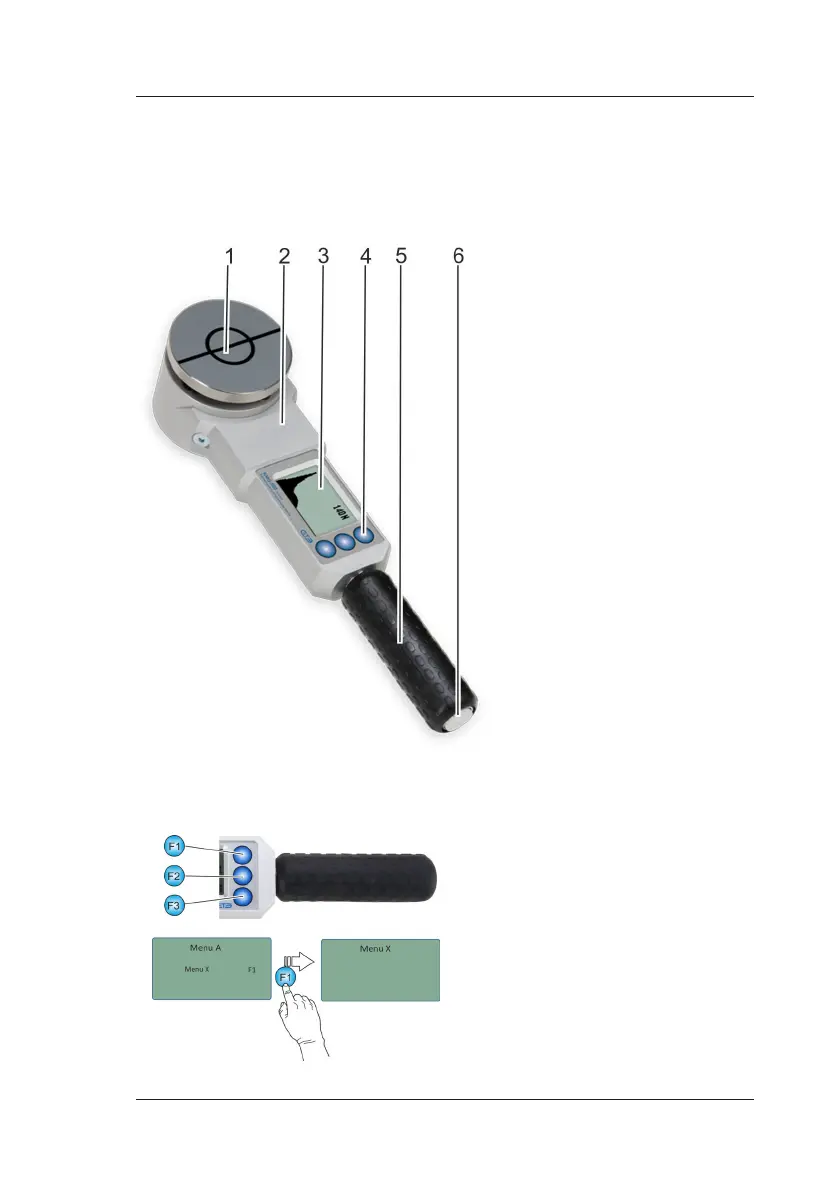

Fig. 10: CBSF-Basic
Fig. 11: Menu Navigation CBSF-Basic
To Next Page
