GTE COBOSAFE CBSF - Attach Cobosafe-CBSF to Mounting Adapter

31
CoboSafe-CBSF 325-2810-012US15
PREPARING FOR MEASUREMENT

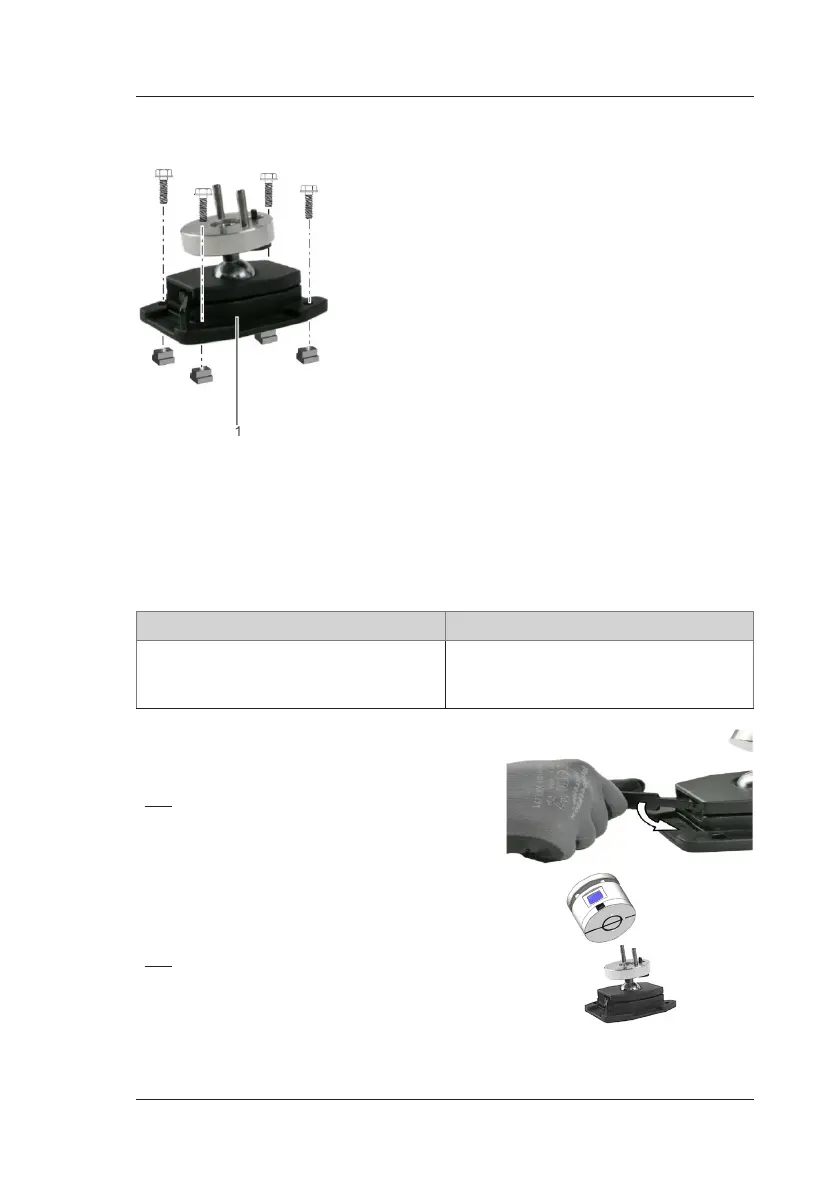

Fig. 16: Mounting adapter
 The mounting adapter is firmly connected to the contact surface.
10.6.2 Attach CoboSafe-CBSF to Mounting Adapter
Z Attach the CoboSafe-CBSF to mounting adapter
Personnel Personal Protective Equipment
■ Laboratory scientist
■ System integrator
■ Protective clothing
■ Protective gloves
■ Safety footwear
1 ►
Release the locking mechanism of the moun-
ting adapter
Fig.17: Release mounting adapter
2 ►
Attach the force sensor to the bolts of the
mounting adapter
Fig.18: Attach CBSF
