Guardian CORE SERIES User Manual

www.adhguardianusa.com
+
PUSH BUTTON
LEARN
WALL
PANEL
PHOTO EYE
+
OPEN
FORCE
CLOSE
FORCE
TRAVEL LIMIT
OPENCLOSE
+
+
Screwdriver or similar tool
WARNING
To prevent SERIOUS INJURY or DEATH from electrocution:
- Power MUST NOT be connected until instructed.
- NO exposed part of the wire should be visible outside of the terminal for proper connection.

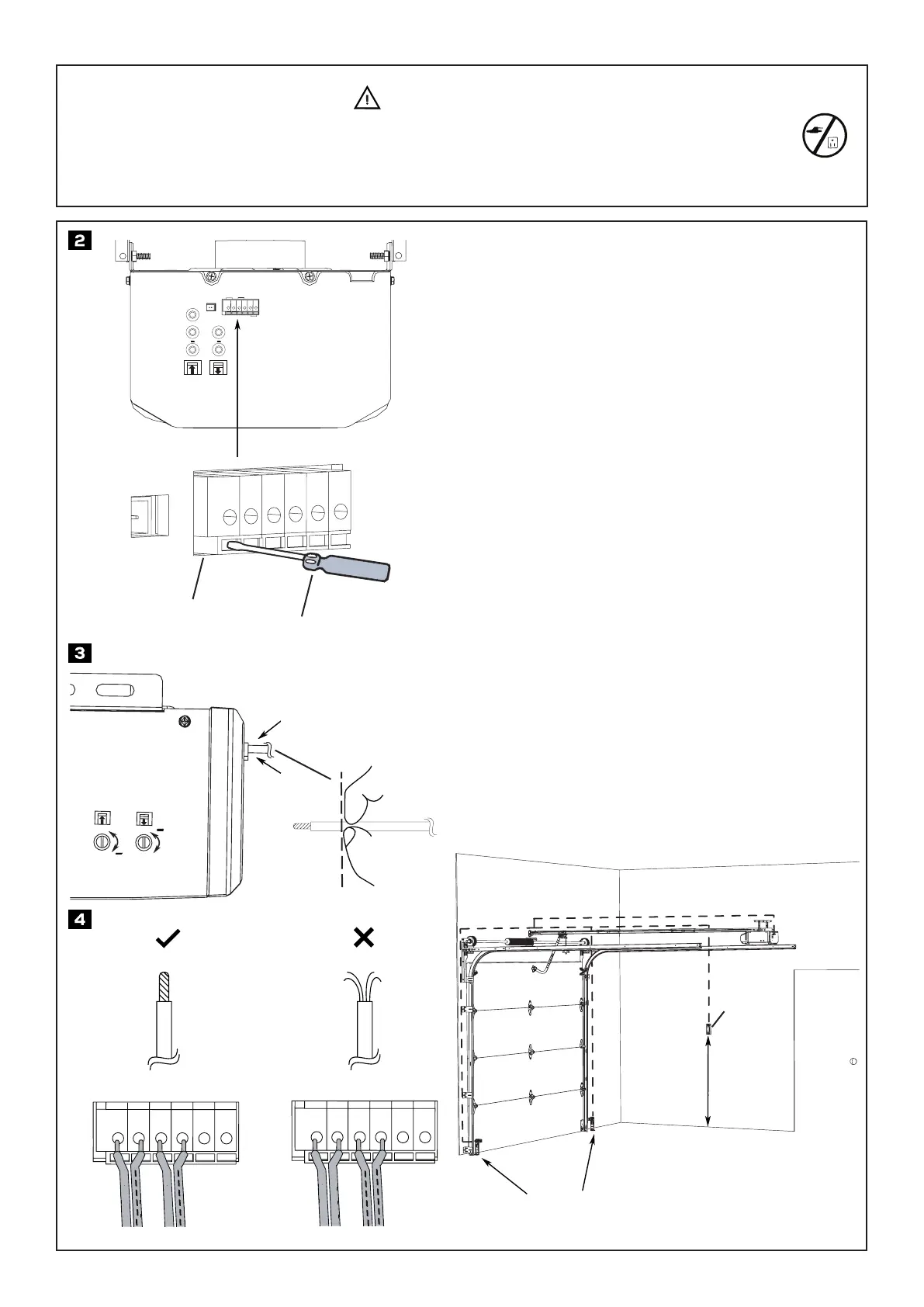

Wiring Instructions
In the following section, the Photo Eye Safety
System and Push Button will be connected to
the Opener. Please read and understand the
wiring instructions before connecting wires.
1. The connection terminals on the rear panel of the Opener
are used to connect accessory cables.
2. To connect a wire to an assigned terminal, use a small “at
head” screwdriver to push in the orange tab on the Wire
Terminal.
3. Insert approximately 1/2” (13mm) of the wire into the
terminal while pushing in the tab.
4. Each accessory requires a pair of terminals, Each pair of
terminals MUST be connected with one white wire and one
striped wire (non-polarized) from the SAME accessory.
5. Check for proper connection by gently pulling on the wire.
The wire should not come out of the terminal. NO exposed
part of the wire should be visible outside of the terminal.
6. Use the insulated staples provided to secure the wires to
the wall and/or ceiling. Be careful not to damage the wires
while securing the staples.
Photo Eye Safety System
Min. 5 feet
(1.5m) above
oor
Push Button
Wire shown in actual size
Wire Terminals
1/2”
TRAVEL LIMIT
OPEN CLOSE
+
_
+
_
TRAVEL LIMIT
OPEN CLOSE
+
_
+
_
TRAVEL LIMIT
OPEN CLOSE
+
_
+
_
TRAVEL LIMIT
OPEN CLOSE
+
_
+
_

Guardian CORE SERIES Specifications

General

Voltage	120V AC
Security	Rolling Code Technology
Drive Type	Chain
Motor Power	1/2 HP
Remote Controls	2
Warranty	5 Years on Parts
