www.adhguardianusa.com 
Center limit Contact
Close limit Contact
Open Limit Contact
Limit System Assembly

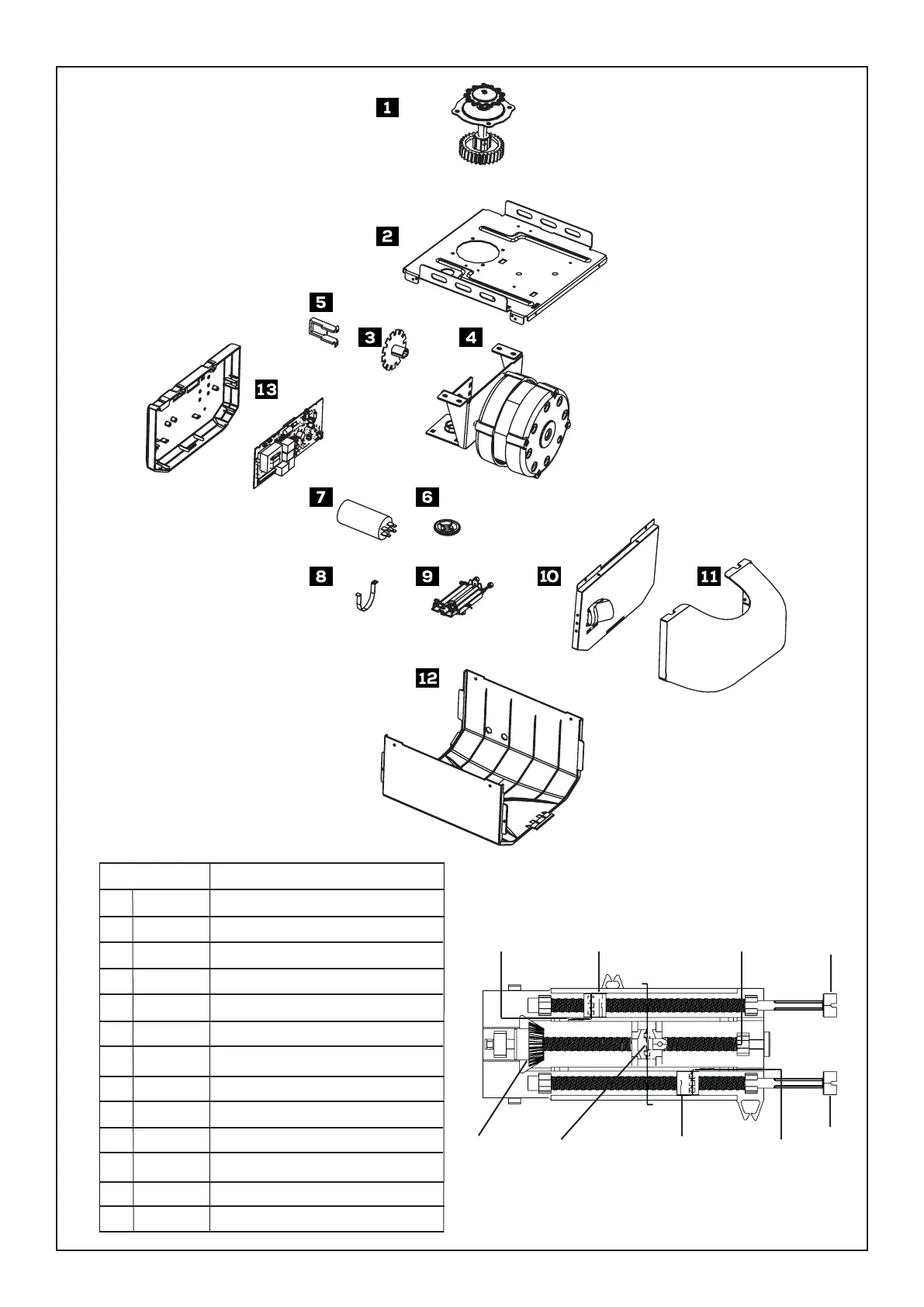

Opener Assembly Parts
Sprocket and gear assembly
Chassis
RPM wheel
Motor assembly
RPM Reader Module
Limit system driving gear
Capacitor
Capacitor holder
Limit system assembly
Lamp plate
Light Lens
Opener cover
Logic Board and End Panel Assembly
1 GUAT-323
2 GUAT-341
3 GUAT-314
4 GUAT-346
5 GUAT-315
6 GUAT-311
7 GUAT-305
8 GUAT-306
9 GUAT-322
10 GUAT-303
11 GUAT-304
12 GUAT-317
13 GUAT-330
Part number Name/ Description
Gear
Green
Screw
Green
Orange
Red
Screw
Blue
