www.adhguardianusa.com 
Center limit Contact
Close limit Contact
Open Limit Contact
Limit System Assembly

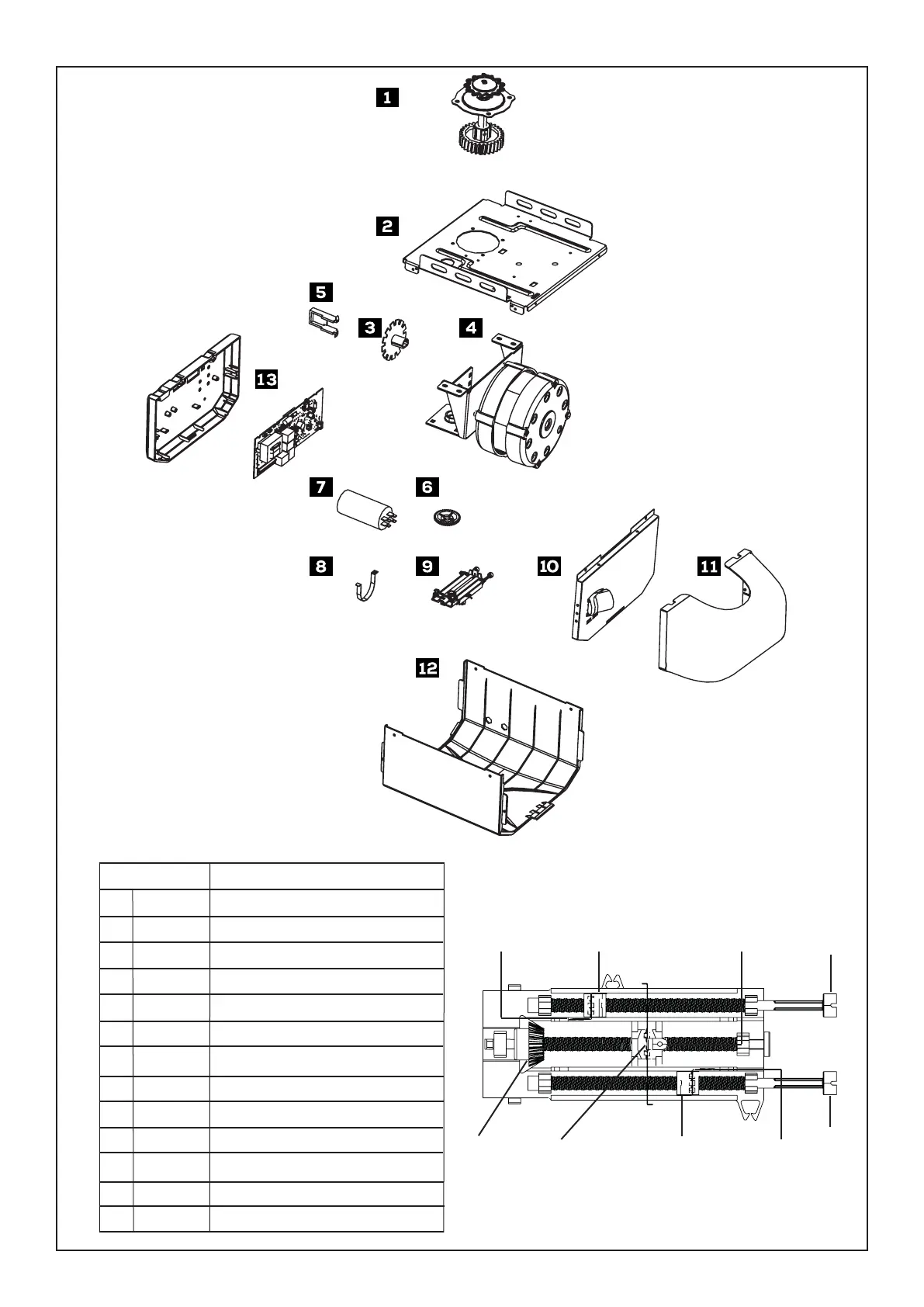

Piezas de Ensamble del Operador
Montaje de la Rueda Dentada y Motor
Chasis
Rueda RPM
Montaje del Motor
Módulo de Lector de RPM
Sistema Límite de Transmisión
Capacitor
Soporte del Capacitor
Ensamble del Sistema Límite
Base de Lámpara
Mica de la Lampara
Cubierta del Operador
Panel Trasero con Tarjeta Lógica
1 GUAT-323
2 GUAT-341
3 GUAT-314
4 GUAT-346
5 GUAT-315
6 GUAT-311
7 GUAT-305
8 GUAT-306
9 GUAT-322
10 GUAT-303
11 GUAT-304
12 GUAT-317
13 GUAT-330
Part number Name/ Description
Gear
Green
Screw
Green
Orange
Red
Screw
Blue
