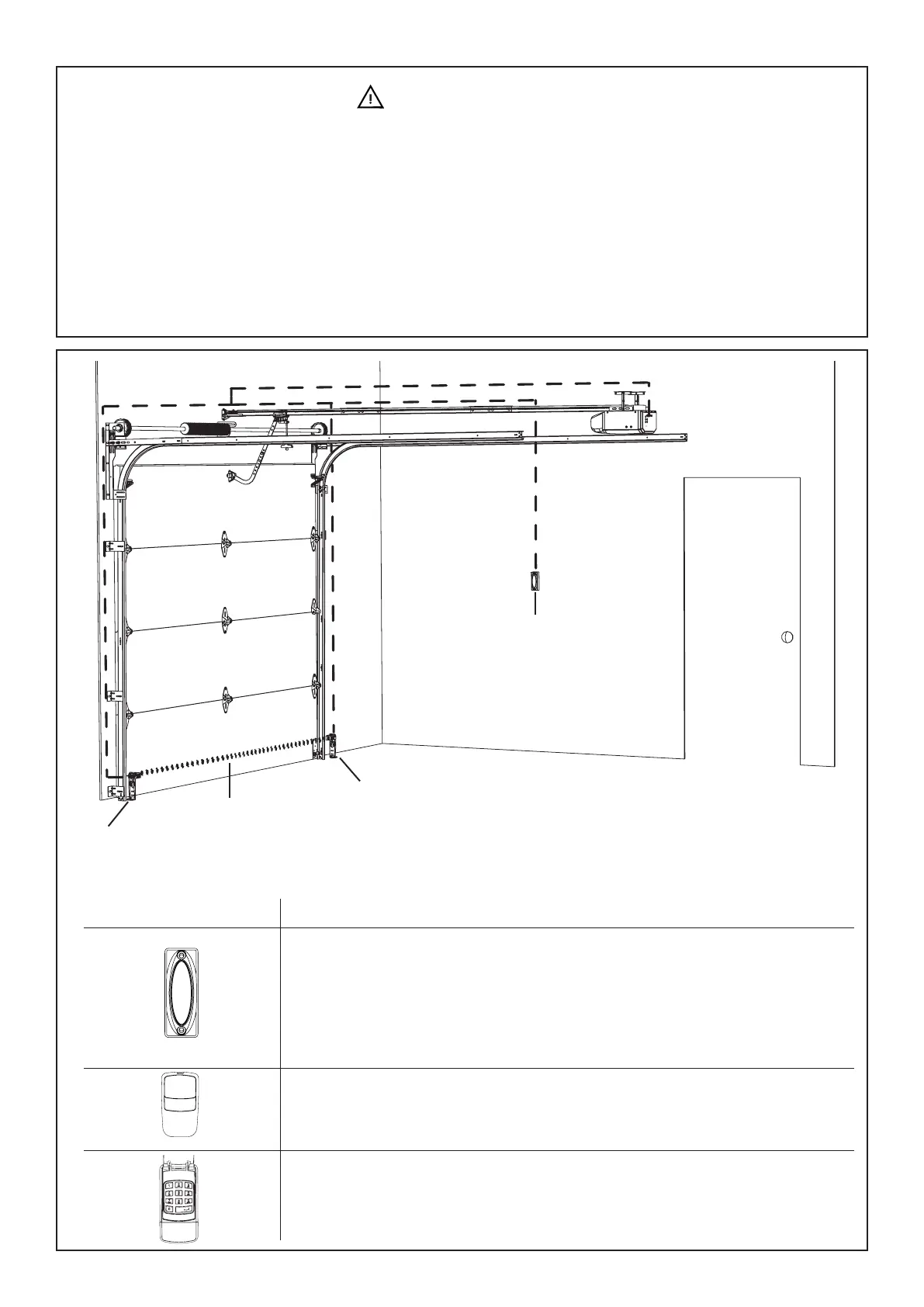

Controls Operation
Press and hold the Push Button until the door stars move, and controls as follows:
Open or close the door.
• Reverse the door while it is closing.
• Stops the door while it is opening.
• Close the door when the Photo Eye Safety System is not installed, misaligned or obstructed
INTETIONALLY.
Remote distance up to 100 feet in open eld.
For safety concerns, the handheld remote control WILL NOT work if the photo eye
safety system is not properly installed and aligned or if vacation lock is ac tivated.
Program the Wireless Keyless Entry Keypad accordingly and access the door using
the PIN code.
Push Button
Activating the Opener
Photo Eye
Safety System
Photo Eye
Safety System
Invisible Light Beam
Operating the Opener
To Prevent SERIOUS INJURY or DEATH:
- READ AND FOLLOW ALL INSTRUCTIONS AND WARNINGS IN THE OWNER’S MANUAL AND LABELS.
- Keep Remote Control and battery out of reach of children.
- NEVER permit children to access the Door Control Console, Push Button or Remote Controls.
- Operate the door ONLY when it is properly adjusted, and there are no obstructions and is in clear sight.
- ALWAYS keep a moving door in sight until completely closed. NEVER cross the path of a moving door.
- If Travel Limit adjustments are made, a Force Adjustment may also be needed.
- After ANY adjustments, the Safety Reverse Test MUST be performed to ensure the door reverses on contact
with a 1-1/2” thick object (2x4 laid at).
- ALWAYS ensure that your door is balanced and in good working condition.
