Elektropneumatic positioner DigiPos
4. Design of the positioner
13
4 . 2 Electrical and pneumatic connections

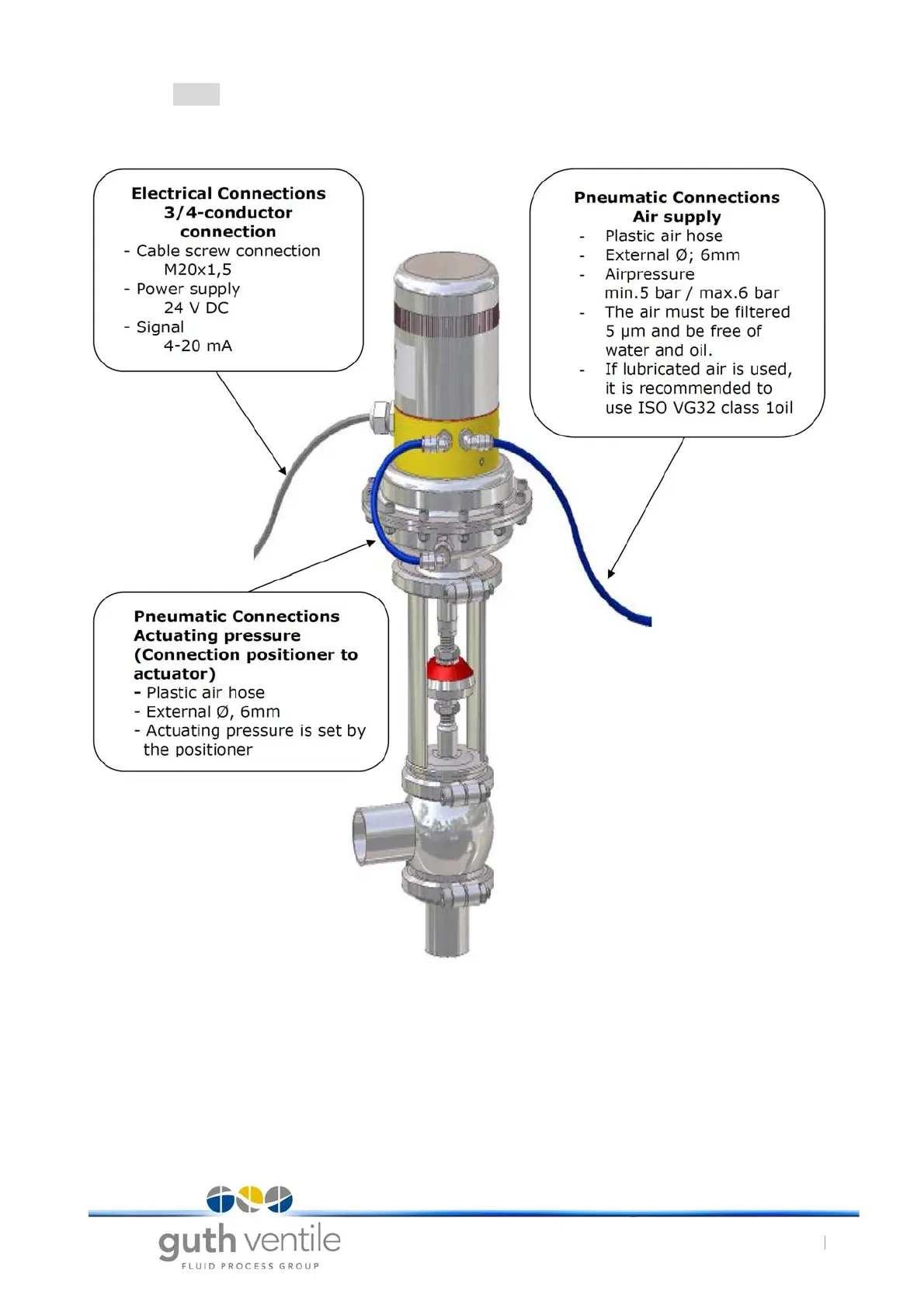

Fig. 7 Modulating valve type VSR with diaphragm actuator and DigiPos
