Elektropneumatic positioner DigiPos
5. Installation
20
5 . 3 Mounting on piston and rotary actuator
 4.
- Connect the supply air line
- Establish the electrical connections
- Apply compressed air
- Screw on the protective cover
- Start commissioning - Chapter 5
 3.
Secure the basic body with the four M8 securing screws
with a hexagon socket screw key to the actuator.
 2.
Place DigiPos without protective cover on actuator and
align. The hole on the top of the actuator (air connection)
must be aligned with the hole on the underside of the
basic body (control air duct).
CAUTION!
Ensure correct position of the O-rings.
 1.
On the thread of the liner apply M50 securing cement
(Omnifit). (Apply thinly!)
Screw the liner into the piston rod of the actuator and
tighten with a suitable tool.

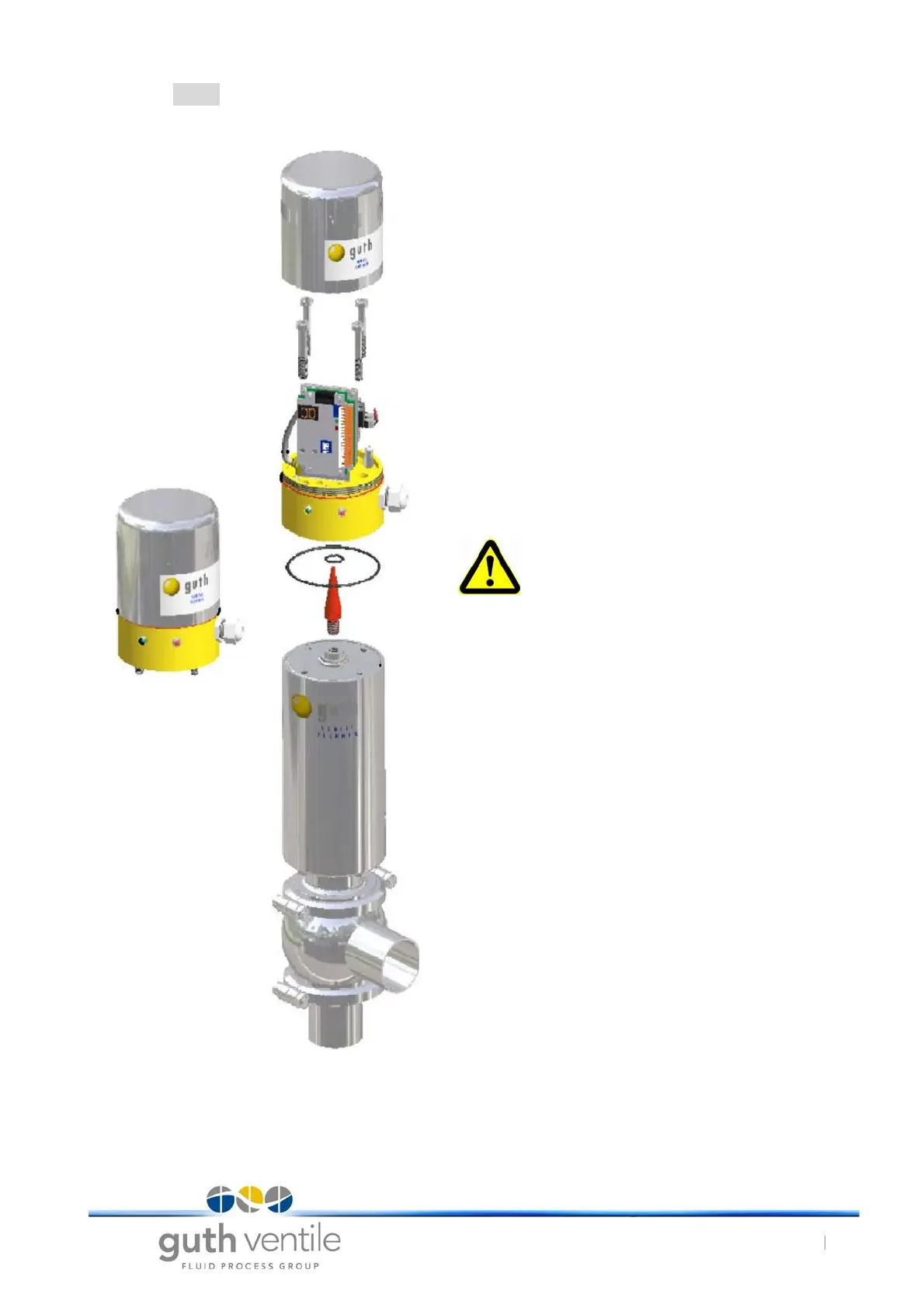

Fig. 17 Mounting on piston and rotary actuator
