Elektropneumatic positioner DigiPos
4. Design of the positioner
16
4 . 3 . 4 Terminal supply line

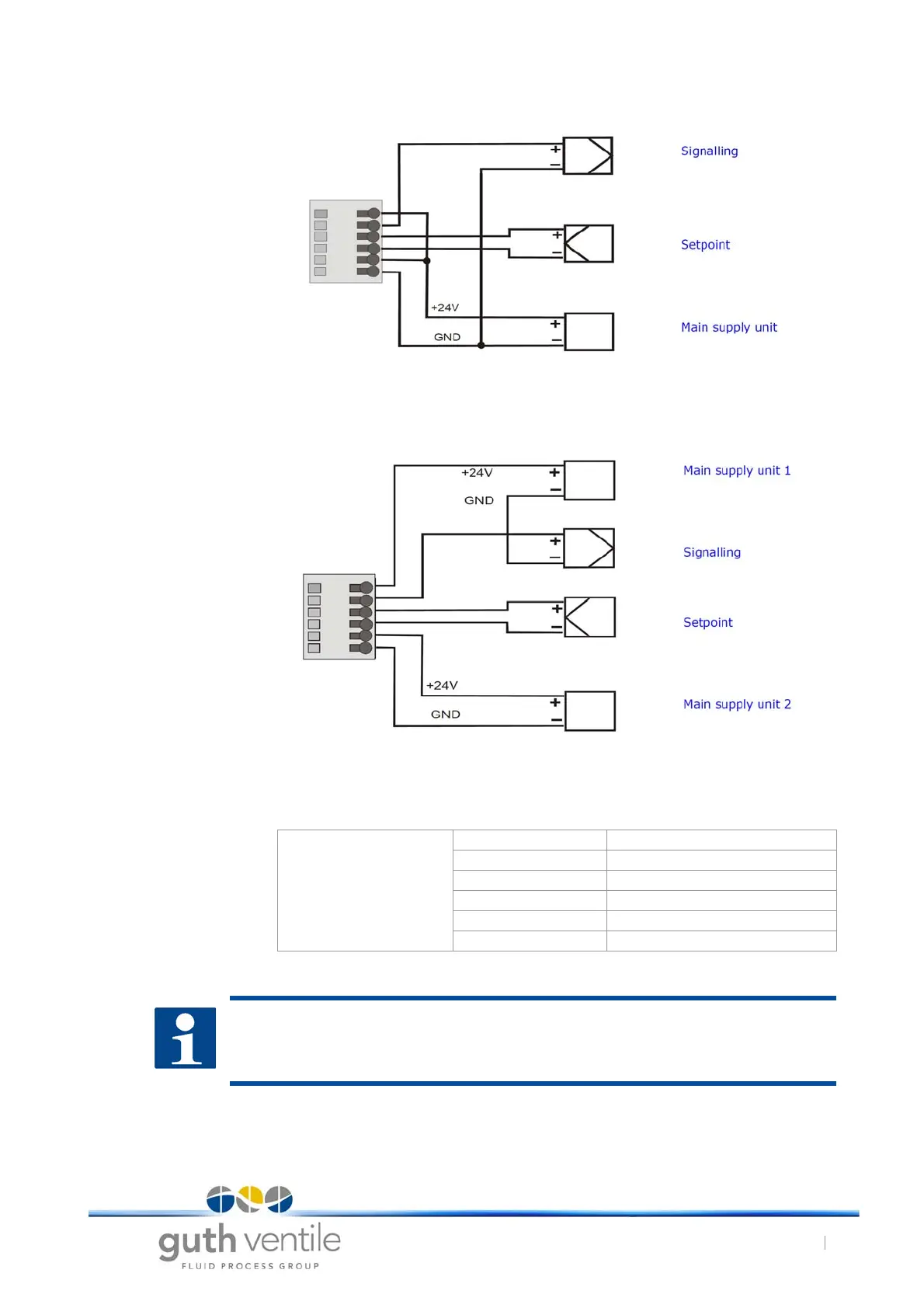

Fig. 12 Signalling connection with only one voltage supply
Fig. 13 Connection of signalling with electrical isolation and two mains supply units
Tab. 3 Anschluss der Klemme Zuleitung
Terminal
Supply line
Output Position signal, 4-20 mA +
Output Position signal, 4-20 mA -
Input Setpoint 4-20 mA +
Input Setpoint 4-20 mA -
Supply +24 V DC
Supply Ground
NOTICE
• It is not necessary to use the signalling unit.
