Elektropneumatic positioner DigiPos
4. Design of the positioner
15
4 . 3 . 1 Terminal - path measurement

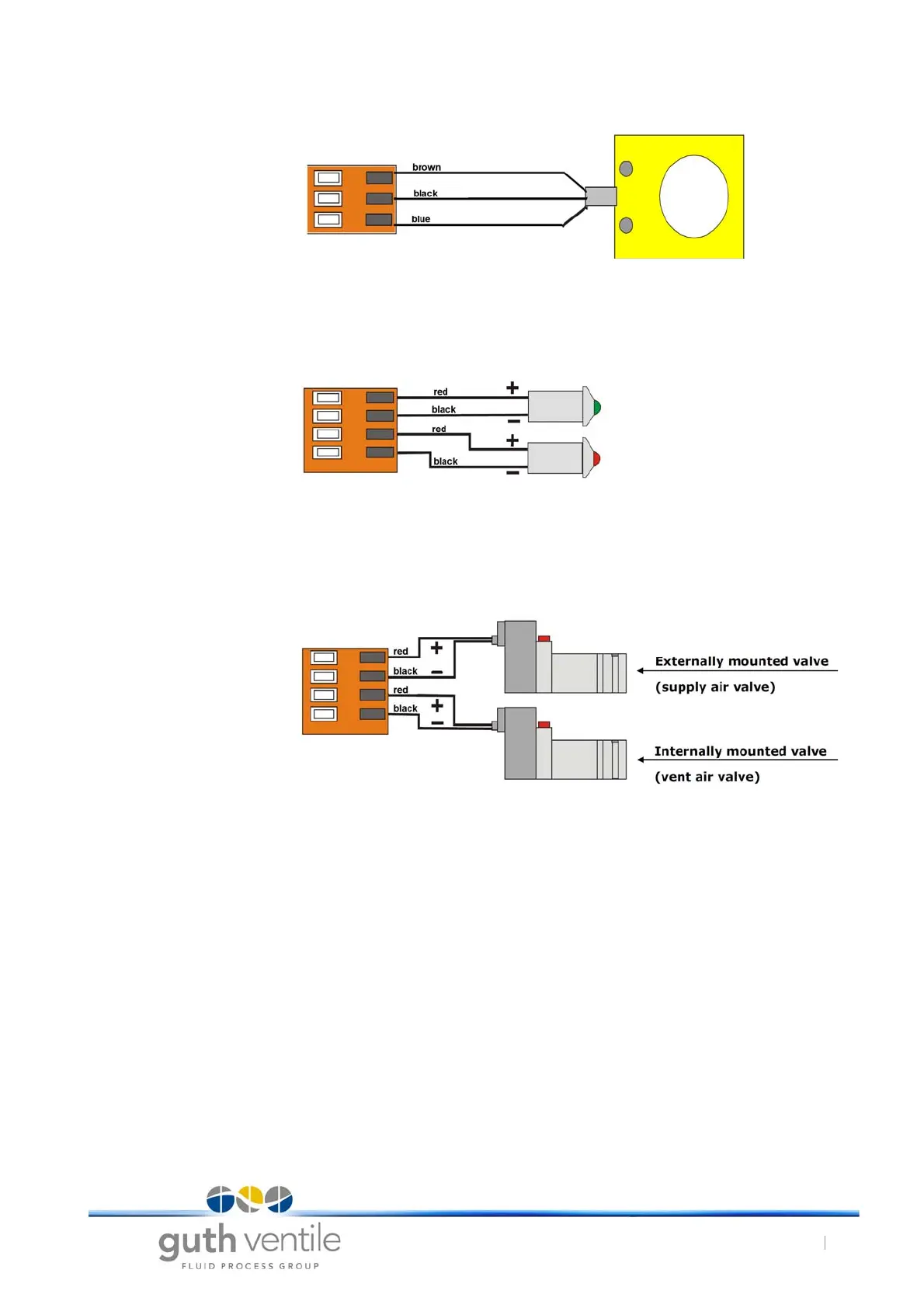

Fig. 9 Connection of the circular sensor
4 . 3 . 2 Terminal - LED display
Fig. 10 Connection of the external LEDs
4 . 3 . 3 Terminal - control valves (solenoid valves)
Fig. 11 Connection of the control valves (pilot valves)
