17.7.17
Elektropneumatic positioner DigiPos
3. General information on the positioner
8
3 . 5 Mounting on rotary actuator

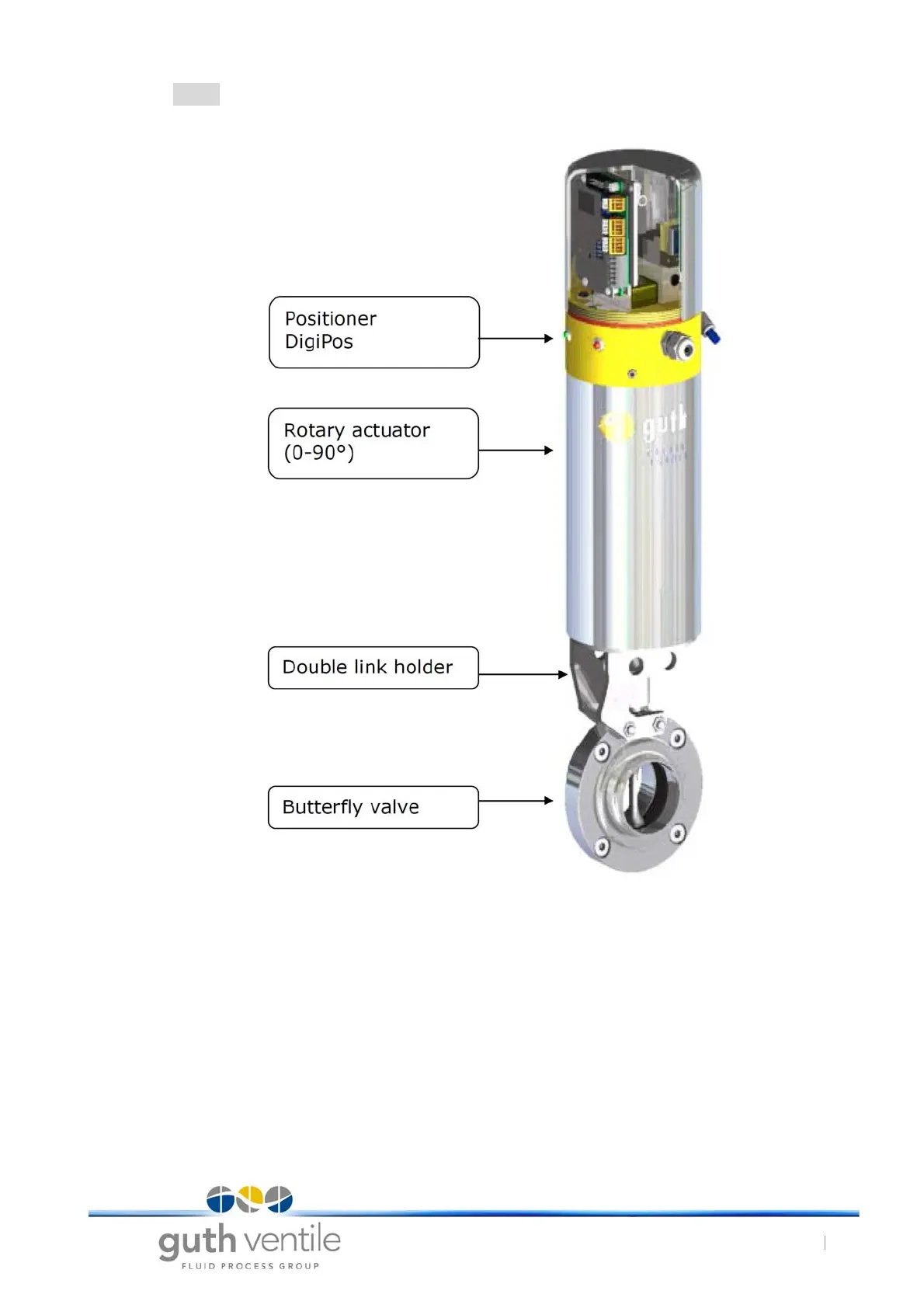

Fig. 3 Modulating butterfly valve with rotary actuator and DigiPos positioner
