GW Instek GDS-3000 Series - Using Rise and Fall Trigger

GDS-3000 Series User Manual
140

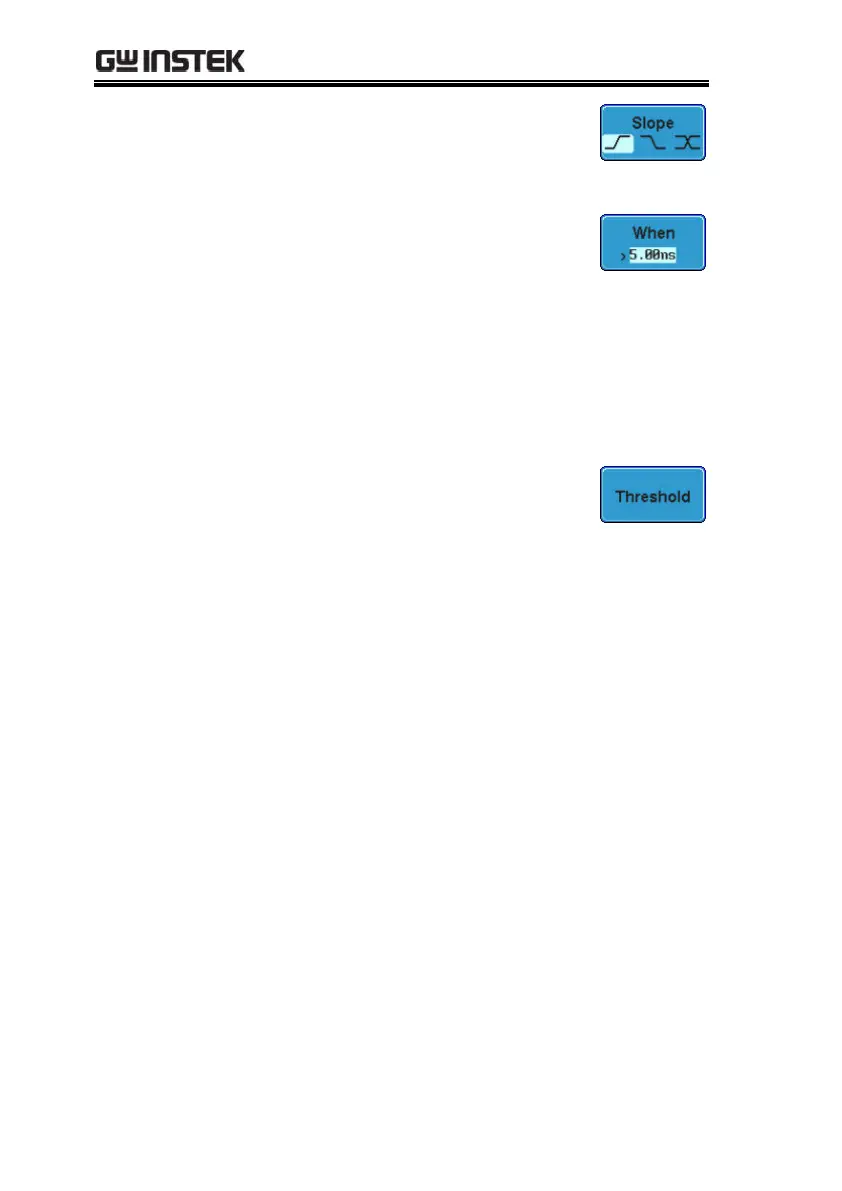

6. Press Slope from the bottom menu
to toggle the slope.
Range
Rising edge, falling edge, either
7. Press When from the lower menu.
8. Then use the side menu to select
the logic conditions and true or
false status.
Condition
> , < , = , ≠
Width
4ns ~ 10s
9. Press Threshold from the lower
bezel to edit the threshold for each
input source.
10. Use the side menu to set the
threshold for the current input.
Range
High: -XXV~XV
Low: -XXV~XXV
Set to TTL 1.4V
Set to ECT -1.3V
