GW Instek GSP-9300 Quick Start Guide

GETTING STARTED
21

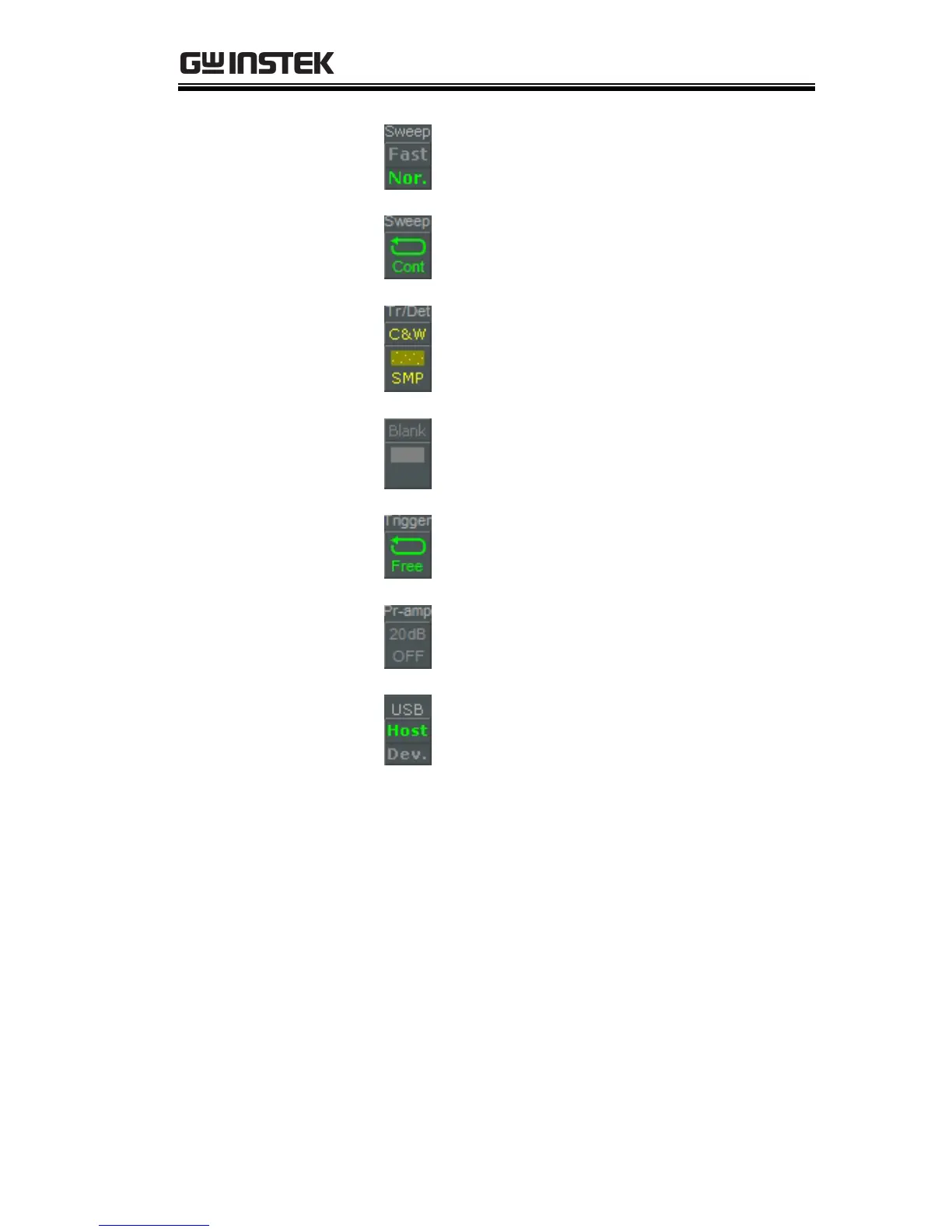

Sweep Mode
This icon displays the sweep mode,
as set by the Sweep Mode key.
Sweep settings
Sweep icon that shows the sweep
status.
Trace and
detection settings
Trace icon that shows the trace type
and the detection mode used for
each trace.
Blank
Unassigned setting icons.
Trigger settings
Trigger icon that shows the trigger
status.
Pre-amp settings
Pre-amplifier icon that shows the
Pre-amplifier status.
USB settings
Displays the status of the USB A
port.
Status Icons
Displays the interface status, power source status
and alarm status, etc. See the Status Icon Overview
on page 23 for a list of the status icons.
Frequency/
Bandwidth
settings
Displays the Start, Center and Stop frequencies,
RBW, VBW, Span and Sweep settings.
Entry/Message
area
This area is used to show system messages, errors
and input values/parameters.
Trace and
waveforms
Main display showing the input signals, traces,
limit lines and marker positions.
