GW Instek GSP-9300 Quick Start Guide

GETTING STARTED
33

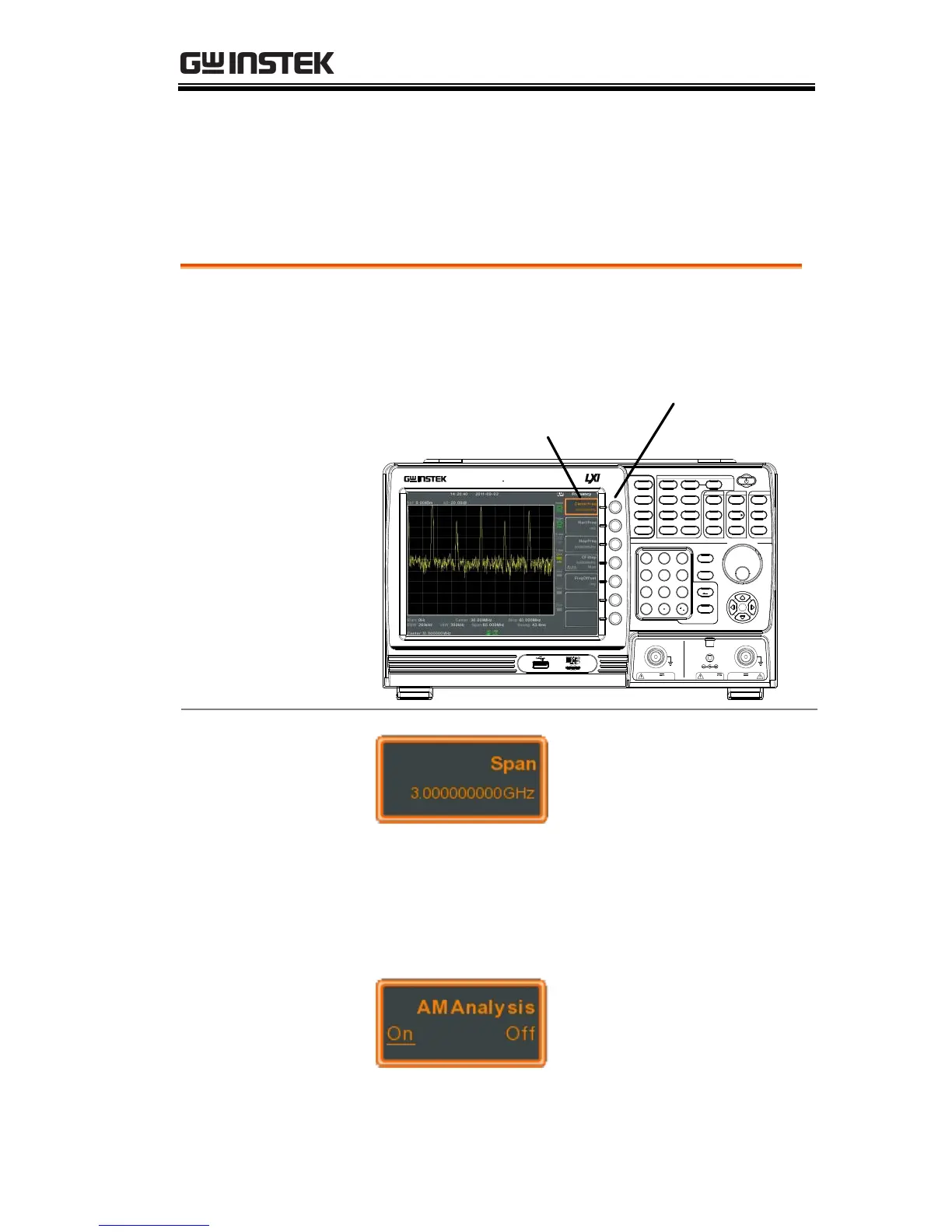

Conventions
The following conventions are used throughout the user manual.
Read the conventions below for a basic grasp of how to operate the
GSP-9300 menu system and front panel keys.
Soft Menu keys
The F1 to F7 function keys on the right side of
the display correspond directly to the soft-
menu keys on their left.
Soft-menu keys
F1 ~ F7 function keys
LOCAL
CONTROL
FILE MARKER AUXILIARY
Frequency
Autoset
Amplitude
Span
BW/AVG
Display
Trace
Sweep
Measure
Trigger
File
Recall
Save
Peak
Marker
Marker
System
Preset
Search
Quick
Save
EMC
Pretest
7
4
1
0
8
5
2
9
6
3
/
Enter
BK SP
Sweep
Mode
Limit
Line
Sequence
Option
Control
Fast/
Normal
F 4
F 3
F 2
F 1
F 6
F 5
F 7
RF INPUT 50
REV PWR +30dBm
TG OUTPUT 50
W W
500mA MAX.
DC 7V
OUTPUT +30dBm MAX.
MAX.DC ±50V MAX.DC ±50V
9 kHz 3 GHz
Spectrum Analyzer
G S P - 9 3 0 0
Input Parameter
Values
Selecting this type of menu key will allow you
to enter a new value with the numeric keypad
or increment/decrement the value using the
scroll wheel.
Toggle State
Pressing this menu key will toggle the state.
