GSP-9300 Quick Start Guide
20

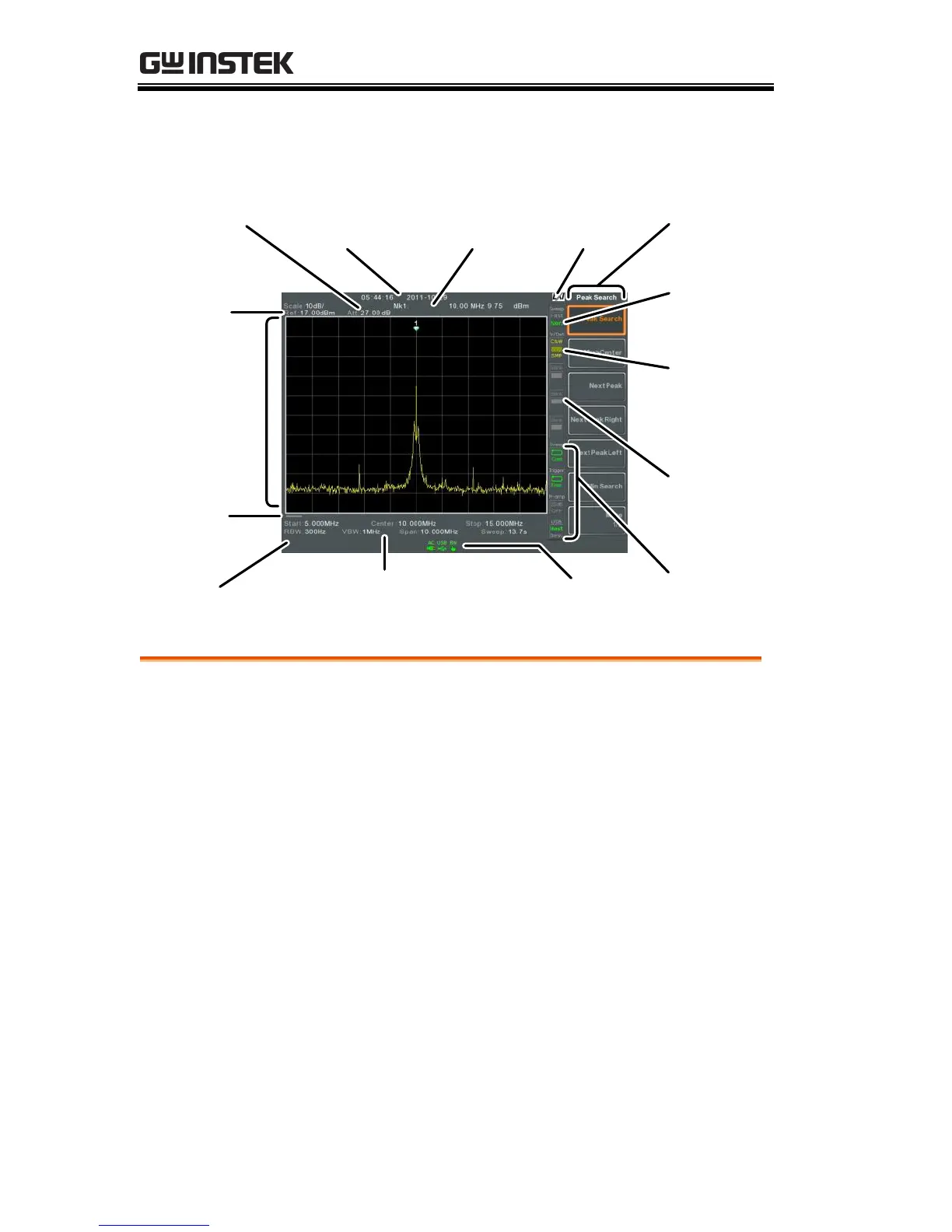

Display
Scale and
Reference
level
Attenuation
level
Date
and time
Function
menu
Marker
information
Trace/
Detection
settings
Unassigned
setting
icons
Sweep,
Trigger,
Pre-amp
and USB
settings
Frequency/Bandwidth
settings
Status icons
Sweep
settings
Traces and
waveforms
LXI icon
Entry /
Message
area
Sweep
progress
bar
Scale
Displays the vertical scale of the vertical grid.
Reference level
Displays the reference level.
Attenuation
Displays the vertical scale (attenuation) of the
input signal.
Date/Time
Displays the date and time.
Marker
information
Displays marker information.
LXI icon
This icon indicates the status of the LXI connection.
Function menu
Soft menu keys associated with the F1 to F7
function keys to the right of the display.
