650 W AC power module (LSVM1AC650)

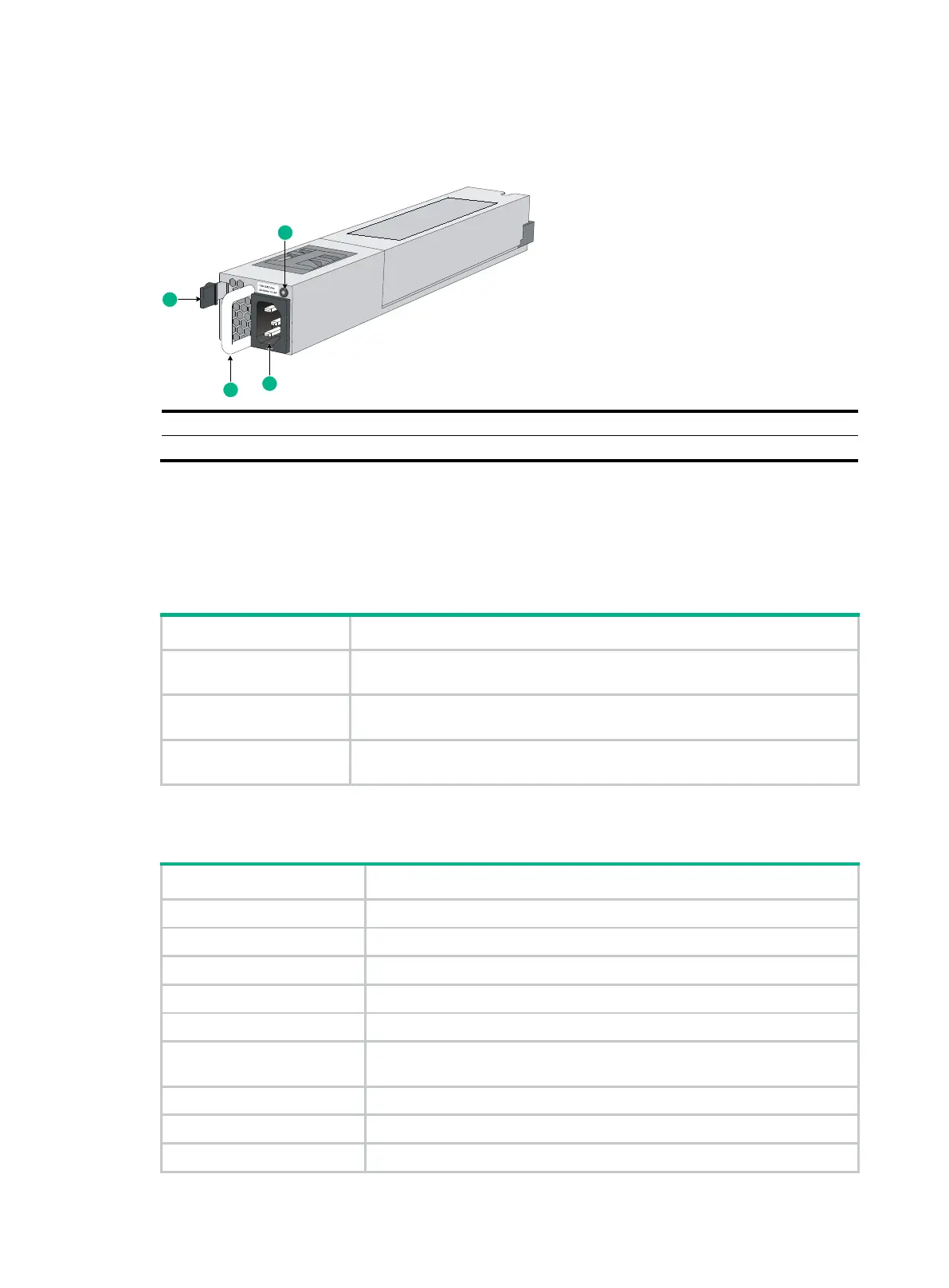

Figure3-3 LSVM1AC650 power module
(1) Latch
(2) Power module LED
(3) AC power receptacle
(4) Handle
For information about the power module LED, see "Power module LEDs."
Features
LSVM1AC650 is a power module with AC input and DC output. It can provide up to 650 W of output.
Table3-4 describes the features provided by the LSVM1AC650 power module.
Table3-4 Features provided by the LSVM1AC650 power module
Feature Description
Protection function
Protection for input overcurrent, input undervoltage, output overvoltage, output
short-circuit, and overtemperature.
Support for redundancy
The power modules can work in 1+1 redundant mode, and support load
sharing.
Support for hot swapping
You can install or remove a power module when the switch is operating
correctly.
Technical specifications
Table3-5 Technical specifications
Item Specifications
Dimensions (H × W × D) 40.2 × 50.5 × 326 mm (1.58 × 1.99 × 12.83 in), including the handle
Weight 1.04 kg (2.29 lb)
Rated AC input voltage range 100 VAC to 240 VAC @ 50 or 60 Hz
Max AC input voltage range 90 VAC to 264 VAC @ 47 to 63 Hz
Rated HVDC input voltage 240 VDC
Max HVDC input voltage
range
190 VDC to 290 VDC
Rated input current 10 A
Rated output current 53 A
Rated output voltage 12 V
1
2
3
4
