H3C S6850 Series User Manual

3-35

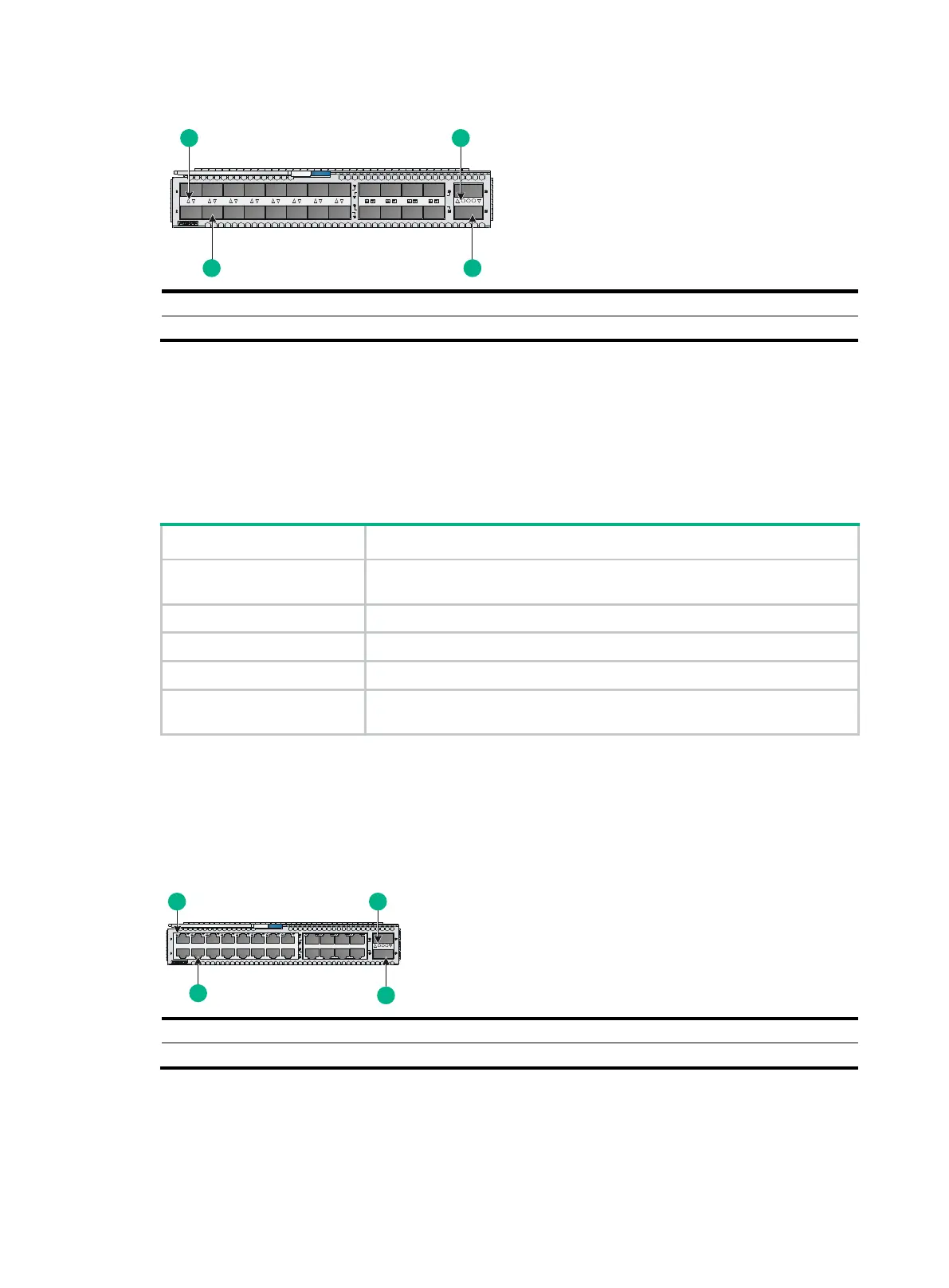

Figure3-14 LSWM124XG2Q front panel
(1) SFP+ port LED
(2) QSFP+ port LED
(3) QSFP+ port
(4) SFP+ port
Ports and LEDs
For information about the ports and modules and cables available for the ports, see "SFP+ port" and
"QSFP+ port."
For information about the LEDs, see "SFP+ port LED" and "QSFP+ port LED."
Technical specifications
Table3-18 Technical specifications
Item Specifications
Dimensions (H × W × D)
40.1 × 214 × 274 mm (1.58 × 8.43 × 10.79 in), including the connector but
excluding the ejector lever
Weight 2 kg (4.41 lb)
Power consumption (static) 40 W
Power consumption (typical) 50 W
Power consumption (fully
loaded)
60 W
LSWM124XGT2Q
The LSWM124XGT2Q interface module provides twenty-four 10GBASE-T ports and two QSFP+
ports. All 10GBASE-T ports support MACsec.
Figure3-15 LSWM124XGT2Q front panel
(1) 10GBASE-T port LED
(2) QSFP+ port LED
(3) QSFP+ port
(4) 10GBASE-T port
Ports and LEDs
For information about the ports and modules and cables available for the ports, see "10GBASE-T
Ethernet port" and "QSFP+ port."
1
2
4
3
3
4
1 2
