72

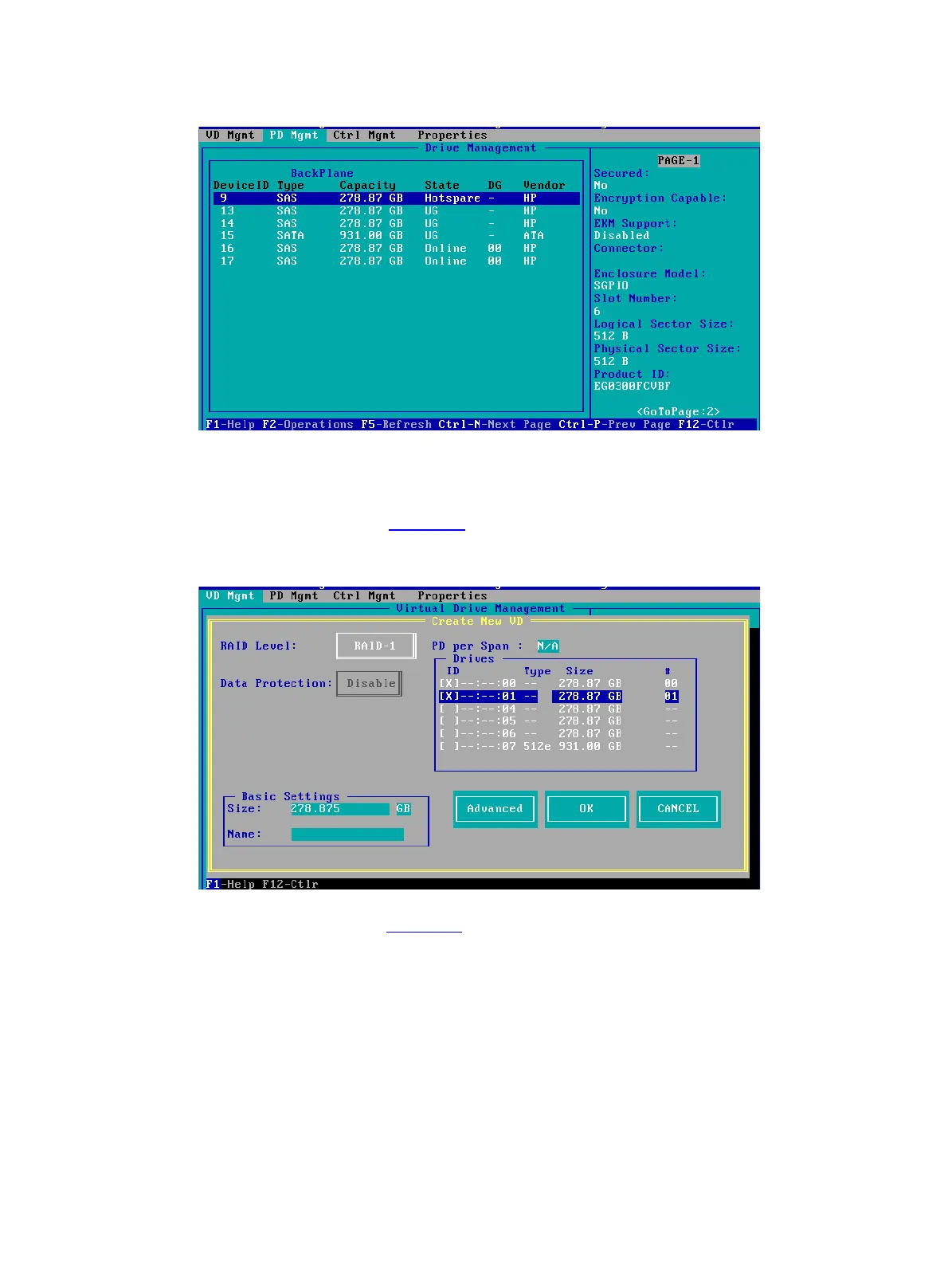

Figure 129 Viewing global hot spare drive information
Configuring a dedicated hot spare drive
1. On the VD Mgmt screen, press F2 and then select Manage Ded.SH.
2. On the screen as shown in Figure 130, select the target drive, select Advanced, and then
press Enter.
Figure 130 Selecting the target virtual drive
3. On the screen as shown in Figure 131, select Configure HotSpare, select OK, and then press
Enter.
