Configuring RAID arrays in legacy mode
This section describes how to configure RAID through an embedded RSTe RAID controller in
legacy mode. For more information about how to enter the BIOS and set the boot mode to legacy,
see the BIOS user guide for the server.
RAID array configuration tasks at a glance
To configure RAID arrays in legacy mode, perform the following tasks:
Setting the RSTe operating mode
Accessing the RSTe configuration screen
Configuring RAID arrays
(Optional.) Configuring hot spare drives
(Optional.) Deleting RAID arrays
Setting the RSTe operating mode
1. Access the BIOS setup screen.
2. On the screen as shown in Figure 17, select Platform Configuration > PCH Configuration,
and press Enter.

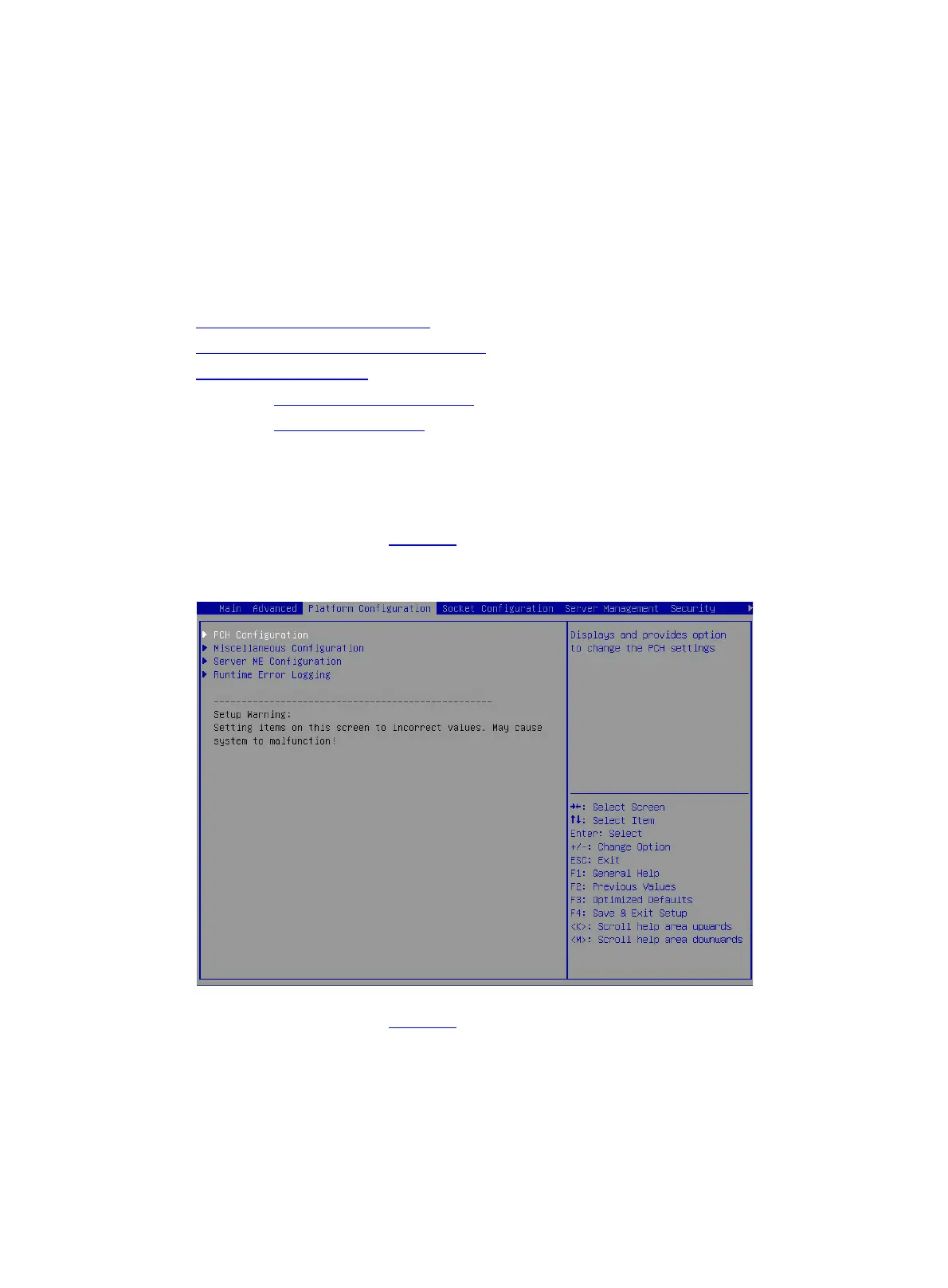

Figure 17 Platform Configuration screen
3. On the screen as shown in Figure 18, select PCH SATA Configuration or PCH sSATA
Configuration, which corresponds to the two configuration entries of the embedded RSTe
RAID controller, and then press Enter.
