9

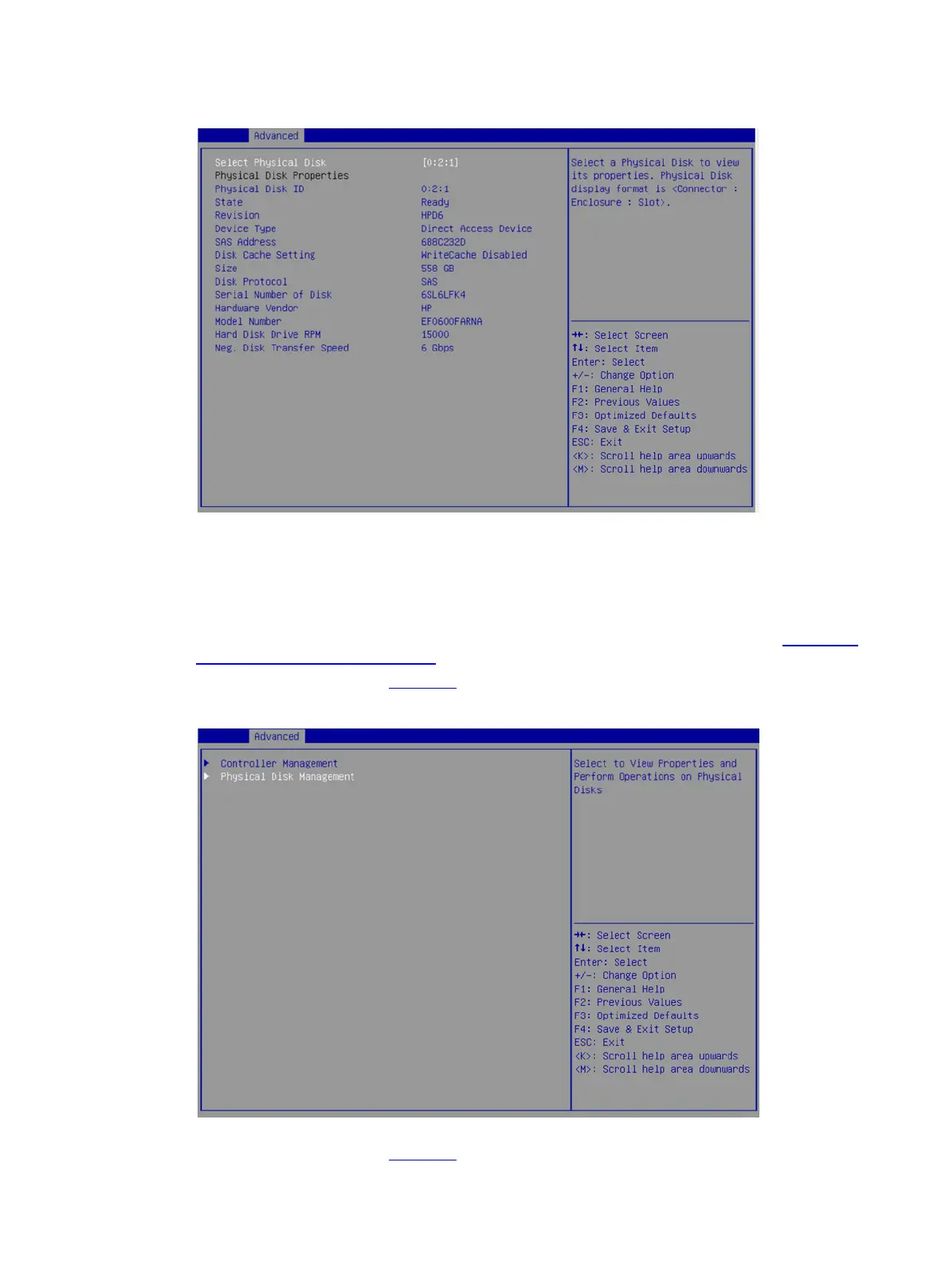

Figure 14 Viewing drive properties
Locating drives
1. Access the controller configuration screen.
For more information about how to access the controller configuration screen, see "Accessing
the controller configuration screen."
2. On the screen as shown in Figure 15, select Physical Disk Management and press Enter.
Figure 15 Controller configuration screen
3. On the screen as shown in Figure 16, select Select Physical Disk Operations, and press
Enter.
