H3C UniServer R4900 G3 User Manual

14

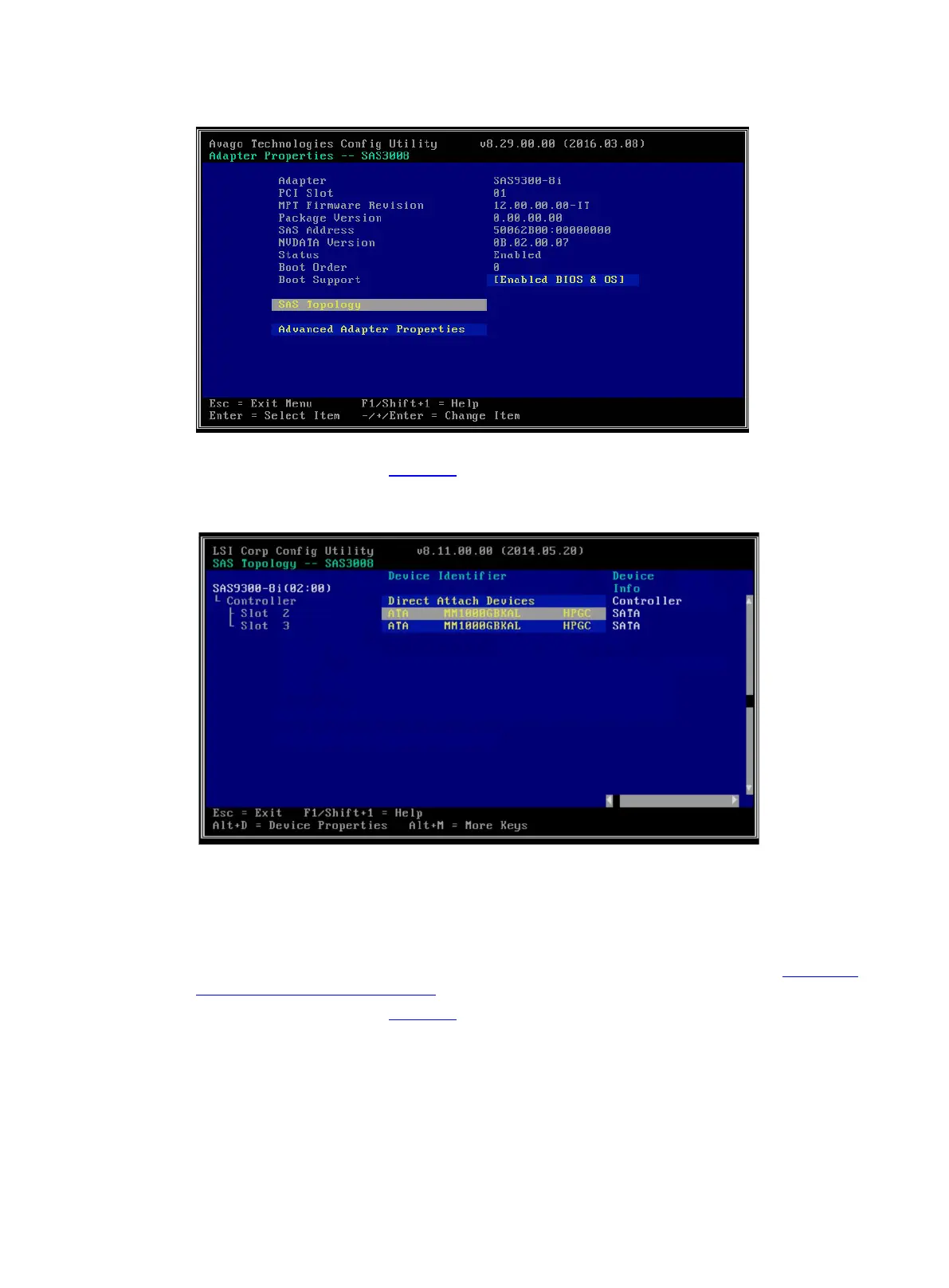

Figure 24 Controller configuration screen
3. On the screen as shown in Figure 25, select the physical drive you want to locate and press
Enter to turn on the drive LED on the drive backplane.
Figure 25 Selecting a physical drive
Verifying/Formatting drives
1. Access the controller configuration screen.
For more information about how to access the controller configuration screen, see "Accessing
the controller configuration screen."
2. On the screen as shown in Figure 26, select SAS Topology and press Enter.
