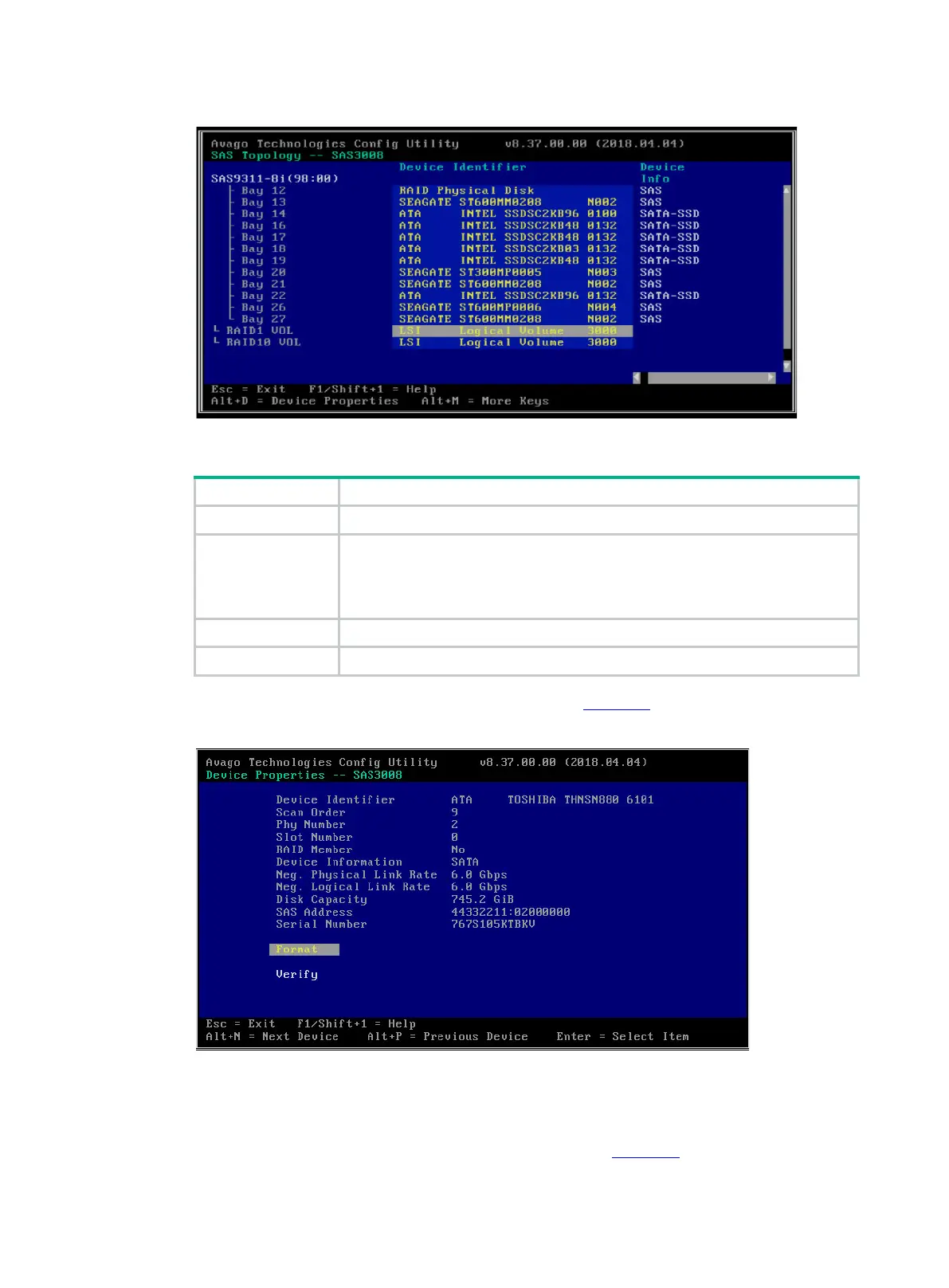

Figure 59 Selecting a physical drive
Table 7 SAS Topology parameters
Device Info Device information.
RAID VOL
Number of RAID arrays for the controller. A maximum of 2 RAID arrays are
supported.
The storage controller supports multiple RAID modes. This field varies by RAID
level and might display value such as
RAID1 VOL
or
RAID10 VOL
.
Alt+D Displays the details if you select a drive that is highlighted on the screen.
Alt+M Displays more keyboard shortcuts on the
SAS Topology
screen.
3. View properties of the drive on the screen as shown in Figure 60.
Figure 60 Drive properties
Locating drives
1. On the storage controller configuration screen as shown in Figure 61, select SAS Topology
and press Enter.
