Chapter 2,
Mounting
Before Installation
• Check the contents of the Controller Kit.
• Standard kits contain (FIGURE 2-1):
• the controller (includes panel and Snap-in I/O module)
• the RS232 to RS485 converter
• a three-pin power supply connector
• four mounting brackets, each with an inserted screw.
• Other items in the kit include:
• an envelope containing a wire with a ring cable shoe
• other hardware that may be used to earth the controller’s
power supply
• a rubber seal already seated in back of the operating panel
• a communication cable
• two sets of keypad slides to be used for labeling the
keypad keys
• One set of slides is already installed in the operating panel.
• this manual.

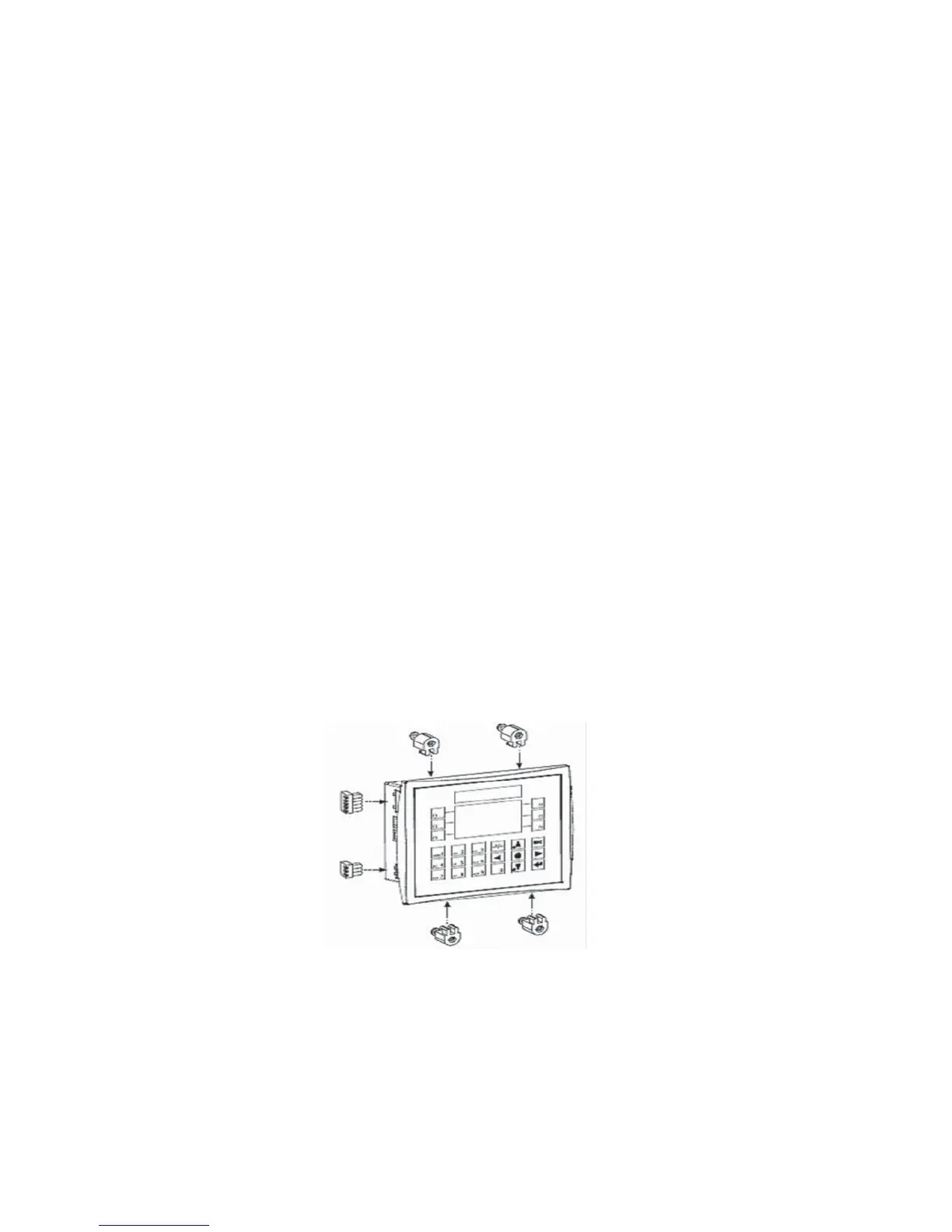

Figure 2-1. Vision Connectors and Mounting Brackets
2-1
