ONYX Electrostatic Discharge Simulator
9
5.2.4 Optical interface
The optional remote control package enables remote control operation of the unit, automatic generation of tests report
and uploading/downloading test sequences to/from ONYX.
The package contains:
• Fibre-optic cable 10m having RS232 converter one end and optical plug on other end
• RS232 to USB converter
• User manual including instruction set
• ONYX application software for remote control & automatic reporting

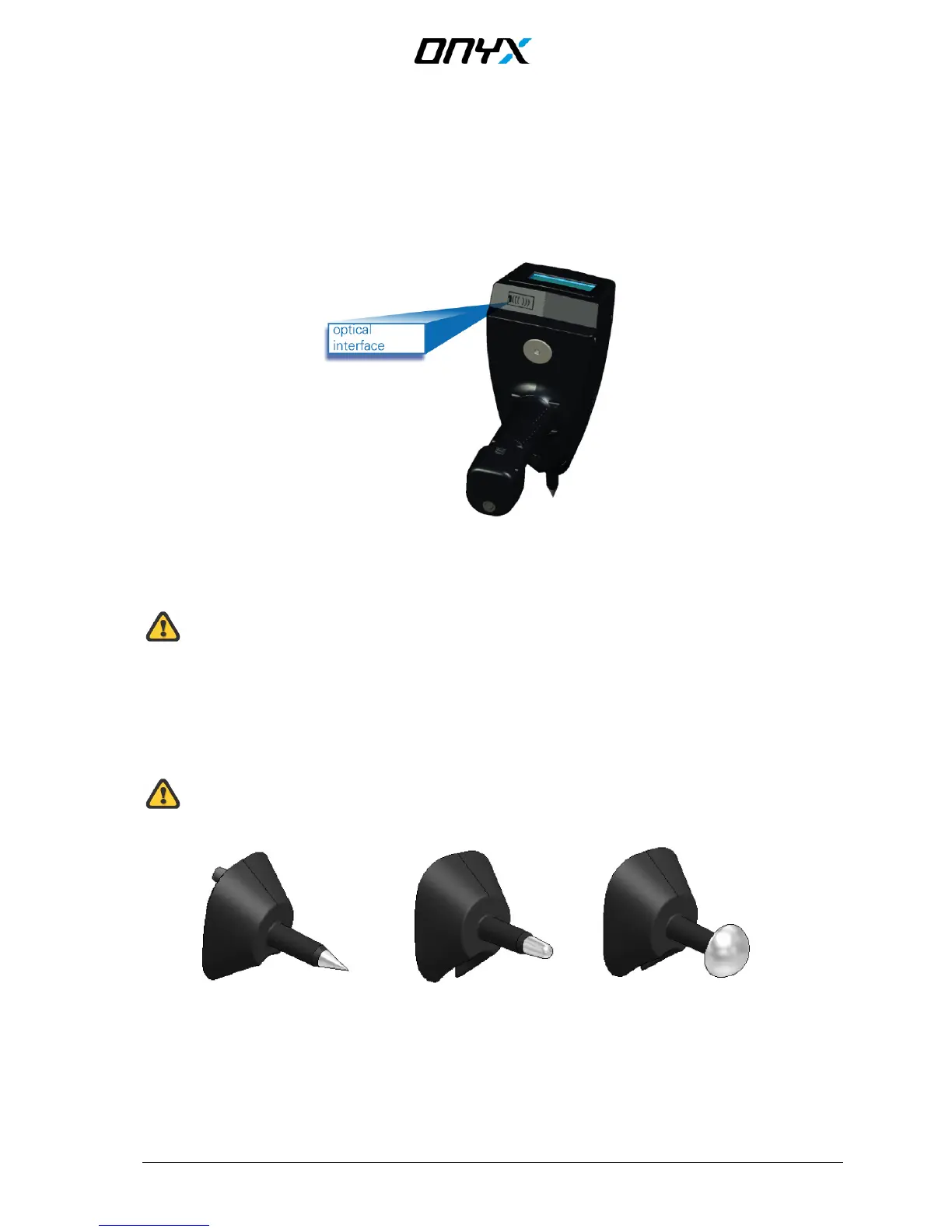

Fig. 6 optical interface
5.2.5 Discharge tips
Before touching the discharge tips to change them, switch the ONYX tester off and wait for a few
seconds so that the impulse capacitor can discharge internally.
Do not touch the tips while the “HVon” is displayed on the touch screen, indicating that the capacitor
is charged. Any contact with the test tips during this stage will result in electrostatic discharge.
The ONYX simulator is supplied with one contact and one air discharge tip. Additional tips such as 30mm air discharge
and fast rise time tips are available as an option.
The 30mm air discharge tip ensures a more stable rise time of the pulse above 15kV.
The fast rise time tip reduces the rise time of the ESD pulse down to 0.3ns.
Please refer to section "Accessories and Options" for ordering details.
Because of the sharp edge of the contact discharge tip, we highly recommend that you handle this
part with care to avoid unnecessary injuries.
Contact discharge tip Air discharge tip 30mm air discharge tip (optional)
Fig. 7 discharge tips
